Supported versions and extensions (3D) :

3D Readers	Supported Versions	Supported Extensions
Parasolid	v7 up to v38.1	.x_t .x_b .xmt_txt .xmt_bin

Supported Modules :

: Processed

: Not Processed

: Partially Processed

: Not Applicable

Assemblies	BREP	Wireframe	Meshes	Notes/PMI/FDT	Metadata	RenderInfos	PhysicalMaterial	Machining Features	Assembly Constraints	UUID / PersistentName	Model Display	Drawings(2D)	Part Tree

Datakit Libraries and usage : [LibParasolidRead] or [LibUgSwSeReadPsKernel]

Prerequesites :

//Set the Schema directory needed for readers based on PARASOLID Read Library (PARASOLID, NX, SOLIDWORKS, Solid Edge)

MyAPI->SetSchemaDir(inRepSchema);

Detailed Mapping :

You will find in the following links to the several mappings.

General Mapping (Base Module)

Options :

Note that in some cases, you can split periodic faces when reading a model.Thus, you should call the following function :

void Dtk_API::ActivateSplitForPeriodicFaces()

As illustrated in the table below, activating the split option is only possible in specific conditions, depending on two parameters : the Parasolid reader and the Body Mode.
"Required" states that periodic faces should be split.So, the reader forces the split configuration and the user has no control over it.
"Optional" allows users to activate the split option according to their need.

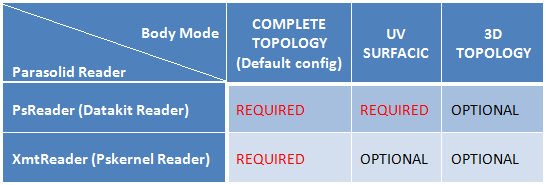

Parasolid Reader \ Body Mode	Complete Topology (Default)	UV Surfacic	3D Topology
PsReader (Datakit Reader)	Required	Required	Optional
XmtReader (PSKERNEL Reader)	Required	Optional	Optional
