This is the composite text class.
It's basically a Dtk_Text Container.
This class represents a group of several base_texts.
It contains an inner Dtk_Oriented2dBBox and a outer Dtk_Oriented2dBBox.
The Dtk_CompositeText uses a lot of informations. The most important ones are shown in the picture below:
. More...

Public Member Functions
void	AddText (Dtk_Text inText)
	Adds a Dtk_Text to the Dtk_CompositeText. More...

void	Clear ()

Dtk_string	ConvertToDtk_string () const
	Merges the Dtk_CompositeText to Dtk_string. More...

Dtk_ErrorStatus	CreateFrameAsGeometry (Dtk_tab< Dtk_CurvePtr > &outGeoms) const

	Dtk_CompositeText ()
	Base constructor. More...

	Dtk_CompositeText (const Dtk_CompositeText &t)
	Copy constructor. More...

	Dtk_CompositeText (const Dtk_Size_t &inNumTexts)
	Pre allocator constructor. More...

	Dtk_CompositeText (Dtk_CompositeText &&t) DTK_NOEXCEPT
	\MoveConstructor{t} More...

	Dtk_CompositeText (Dtk_tab< Dtk_Text > inTexts)
	Constructor from several Dtk_Text. More...

	Dtk_CompositeText (Dtk_Text inText)
	Constructor from one Dtk_Text. More...

Dtk_InfoPtr &	GetInfo ()
	Retrieves the infos. More...

const Dtk_InfoPtr &	GetInfo () const
	Retrieves the infos. More...

const Dtk_Oriented2dBBox	GetInnerBoundingBox () const
	Processes the inner bounding box. More...

const Dtk_Oriented2dBBox	GetInnerBoundingBox (Dtk_ErrorStatus &outError) const
	Processes the inner bounding box. More...

Dtk_Size_t	GetNumTexts () const
	Retrieves the texts number. More...

const Dtk_Oriented2dBBox	GetOuterBoundingBox (Dtk_bool inIncludeInvisible=DTK_TRUE) const
	Processes the outer bounding box. More...

const Dtk_Oriented2dBBox	GetOuterBoundingBox (Dtk_ErrorStatus &outError, Dtk_bool inIncludeInvisible=DTK_TRUE) const
	Processes the outer bounding box. More...

const Dtk_Double64 &	GetWrappingWidth () const
	Retrieves the wrapping width. More...

Dtk_CompositeText &	operator+= (Dtk_CompositeText s2)
	Merges the Dtk_CompositeText to another one. More...

Dtk_CompositeText &	operator= (const Dtk_CompositeText &inToBeAssigned)
	Assignment Operator. More...

Dtk_CompositeText &	operator= (Dtk_CompositeText &&inToBeAssigned) DTK_NOEXCEPT
	\MoveOp{inToBeAssigned} More...

Dtk_Text &	operator[] (Dtk_Size_t inPos)
	Access operator - get/set -. More...

const Dtk_Text &	operator[] (Dtk_Size_t inPos) const
	Access operator - read only -. More...

void	ReplaceTexts (const Dtk_tab< Dtk_Text > &inTexts)
	Replaces all the included Dtk_Texts by the given ones. More...

Dtk_ErrorStatus	Reverse ()
	Reverses the Dtk_CompositeText and included Dtk_Texts. More...

	SetAsDeprecated ("2020.2", "Use CreateFrameAsGeometry(Dtk_tab<Dtk_CurvePtr> &outGeoms) instead") Dtk_ErrorStatus CreateFrameAsGeometry(Dtk_tab< Geometric_set_select_entity * > &outGeoms) const
	Processes geometrical elements from Dtk_CompositeText frame type - and included Dtk_Texts -. More...

	SetAsDeprecated ("Undefined", "Use GetOuterBoundingBox") Dtk_ErrorStatus GetOuterAnchorPoints(Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES]) const
	Processes all the Dtk_CompositeText outer anchor points. More...

Dtk_ErrorStatus	SetInnerAnchorPoint (const Dtk_pnt &inNewLocationPnt, const Dtk_anchor_type &inNewAnchorType=DTK_ANCHOR_BOTTOM_LEFT, const Dtk_Int32 &inStartingGetText=-1, const Dtk_Int32 &inNumGetTexts=-1, const Dtk_Int32 &inStartingSetText=-1, const Dtk_Int32 &inNumSetTexts=-1)
	Set the Dtk_CompositeText inner anchor point. More...

Dtk_ErrorStatus	SetInnerXAxis (const Dtk_dir &inXAxis)
	Sets the inner bounding box X Axis for the Dtk_CompositeText and included Dtk_Texts. More...

Dtk_ErrorStatus	SetInnerXYAxis (const Dtk_dir &inXaxis, const Dtk_dir &inYaxis)
	Sets the inner bounding box X and Y axes for the Dtk_CompositeText and included Dtk_Texts. More...

Dtk_ErrorStatus	SetInnerYAxis (const Dtk_dir &axis_dir)
	Sets the inner bounding box Y Axis for the Dtk_CompositeText and included Dtk_Texts. More...

Dtk_ErrorStatus	SetOuterAnchorPoint (const Dtk_pnt &inNewLocationPnt, const Dtk_anchor_type &inNewAnchorType=DTK_ANCHOR_BOTTOM_LEFT, const Dtk_Int32 &inStartingGetText=-1, const Dtk_Int32 &inNumGetTexts=-1, const Dtk_Int32 &inStartingSetText=-1, const Dtk_Int32 &inNumSetTexts=-1)
	Set the Dtk_CompositeText outer anchor point. More...

Dtk_ErrorStatus	SetOuterXAxis (const Dtk_dir &inXAxis)
	Sets the outer bounding box X Axis for the Dtk_CompositeText and included Dtk_Texts. More...

Dtk_ErrorStatus	SetOuterXYAxis (const Dtk_dir &inXaxis, const Dtk_dir &inYaxis)
	Sets the outer bounding box X and Y axes for the Dtk_CompositeText and included Dtk_Texts. More...

Dtk_ErrorStatus	SetOuterYAxis (const Dtk_dir &axis_dir)
	Sets the outer bounding box Y Axis for the Dtk_CompositeText and included Dtk_Texts. More...

void	SetWrappingWidth (const Dtk_Double64 &inWrappingWidth)
	Sets the wrapping width. More...

Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Applies a transformation matrix to the Dtk_CompositeText and included Dtk_Texts. More...

Dtk_ErrorStatus	Translate (const Dtk_dir &inTranslateDir)
	Translates the Dtk_CompositeText giving a translation vector. More...

	~Dtk_CompositeText ()
	Destructor. More...

Friends
Dtk_CompositeText	operator+ (Dtk_CompositeText s1, Dtk_CompositeText s2)
	Add all the Dtk_Text from the two Dtk_CompositeText. More...

std::ostream &	operator<< (std::ostream &o, const Dtk_CompositeText &d)

Detailed Description

This is the composite text class.
It's basically a Dtk_Text Container.
This class represents a group of several base_texts.
It contains an inner Dtk_Oriented2dBBox and a outer Dtk_Oriented2dBBox.
The Dtk_CompositeText uses a lot of informations. The most important ones are shown in the picture below:
.

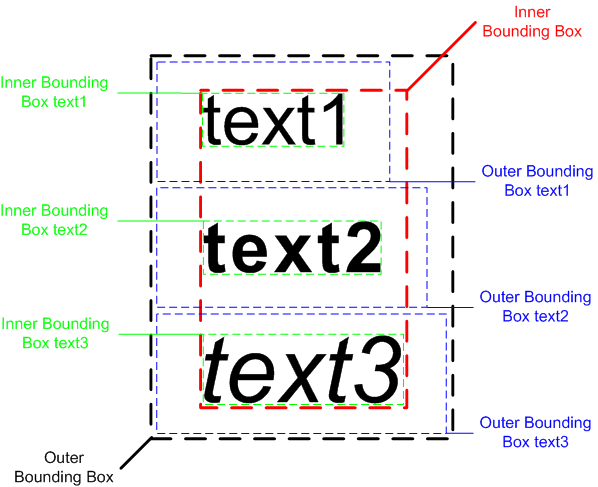

Dtk_CompositeText Most Important Informations

Constructor & Destructor Documentation

◆ ~Dtk_CompositeText()

Dtk_CompositeText::~Dtk_CompositeText ( )

Destructor.

◆ Dtk_CompositeText() [1/6]

Dtk_CompositeText::Dtk_CompositeText ( )

Base constructor.

◆ Dtk_CompositeText() [2/6]

Dtk_CompositeText::Dtk_CompositeText ( const Dtk_CompositeText & t )

Copy constructor.

Parameters

t	Object to copy.

◆ Dtk_CompositeText() [3/6]

Dtk_CompositeText::Dtk_CompositeText ( Dtk_CompositeText && t )

\MoveConstructor{t}

◆ Dtk_CompositeText() [4/6]

Dtk_CompositeText::Dtk_CompositeText ( const Dtk_Size_t & inNumTexts )

Pre allocator constructor.

Parameters

inNumTexts Number of text to be reserved

◆ Dtk_CompositeText() [5/6]

Dtk_CompositeText::Dtk_CompositeText ( Dtk_Text inText )

Constructor from one Dtk_Text.

Parameters

inText Dtk_Text to be included into

◆ Dtk_CompositeText() [6/6]

Dtk_CompositeText::Dtk_CompositeText ( Dtk_tab< Dtk_Text > inTexts )

Constructor from several Dtk_Text.

Parameters

inTexts Dtk_Text to be included into

Member Function Documentation

◆ AddText()

void Dtk_CompositeText::AddText ( Dtk_Text inText )

Adds a Dtk_Text to the Dtk_CompositeText.

Parameters

inText The Dtk_Text to be added

◆ Clear()

void Dtk_CompositeText::Clear ( )

◆ ConvertToDtk_string()

Dtk_string Dtk_CompositeText::ConvertToDtk_string ( ) const

Merges the Dtk_CompositeText to Dtk_string.

Returns: The merged Dtk_string

◆ CreateFrameAsGeometry()

Dtk_ErrorStatus Dtk_CompositeText::CreateFrameAsGeometry ( Dtk_tab< Dtk_CurvePtr > & outGeoms ) const

◆ GetInfo() [1/2]

Dtk_InfoPtr& Dtk_CompositeText::GetInfo ( )

Retrieves the infos.

Returns: The infos

◆ GetInfo() [2/2]

const Dtk_InfoPtr& Dtk_CompositeText::GetInfo ( ) const

Retrieves the infos.

Returns: The infos

◆ GetInnerBoundingBox() [1/2]

const Dtk_Oriented2dBBox Dtk_CompositeText::GetInnerBoundingBox ( ) const

Processes the inner bounding box.

Returns: The inner bounding box

◆ GetInnerBoundingBox() [2/2]

const Dtk_Oriented2dBBox Dtk_CompositeText::GetInnerBoundingBox ( Dtk_ErrorStatus & outError ) const

Processes the inner bounding box.

Parameters

outError Return dtkNoError if OK

Returns: The inner bounding box

◆ GetNumTexts()

Dtk_Size_t Dtk_CompositeText::GetNumTexts ( ) const

Retrieves the texts number.

Returns: the texts number

◆ GetOuterBoundingBox() [1/2]

const Dtk_Oriented2dBBox Dtk_CompositeText::GetOuterBoundingBox ( Dtk_bool inIncludeInvisible = DTK_TRUE ) const

Processes the outer bounding box.

Parameters

inIncludeInvisible : If DTK_TRUE - default value - invisible texts are processed . Else They are not.

Returns: The outer bounding box

◆ GetOuterBoundingBox() [2/2]

const Dtk_Oriented2dBBox Dtk_CompositeText::GetOuterBoundingBox	(	Dtk_ErrorStatus &	outError,
		Dtk_bool	inIncludeInvisible = `DTK_TRUE`
	)		const

Processes the outer bounding box.

Parameters

outError	Return dtkNoError if OK
inIncludeInvisible	: If DTK_TRUE - default value - invisible texts are processed . Else They are not.

Returns: The outer bounding box

◆ GetWrappingWidth()

const Dtk_Double64& Dtk_CompositeText::GetWrappingWidth ( ) const

Retrieves the wrapping width.

Returns: The wrapping width

◆ operator+=()

Dtk_CompositeText& Dtk_CompositeText::operator+= ( Dtk_CompositeText s2 )

Merges the Dtk_CompositeText to another one.

Parameters

s2	The first Dtk_CompositeText to merge to this

◆ operator=() [1/2]

Dtk_CompositeText& Dtk_CompositeText::operator= ( const Dtk_CompositeText & inToBeAssigned )

Assignment Operator.

Parameters

inToBeAssigned Object to copy.

◆ operator=() [2/2]

Dtk_CompositeText& Dtk_CompositeText::operator= ( Dtk_CompositeText && inToBeAssigned )

\MoveOp{inToBeAssigned}

◆ operator[]() [1/2]

Dtk_Text& Dtk_CompositeText::operator[] ( Dtk_Size_t inPos )

Access operator - get/set -.

Parameters

inPos The position of the element to be retrieved

Returns: the inPos'th Dtk_Text

◆ operator[]() [2/2]

const Dtk_Text& Dtk_CompositeText::operator[] ( Dtk_Size_t inPos ) const

Access operator - read only -.

Parameters

inPos The position of the element to be retrieved

Returns: the inPos'th Dtk_Text

◆ ReplaceTexts()

void Dtk_CompositeText::ReplaceTexts ( const Dtk_tab< Dtk_Text > & inTexts )

Replaces all the included Dtk_Texts by the given ones.

Parameters

inTexts The Dtk_Texts to add

◆ Reverse()

Dtk_ErrorStatus Dtk_CompositeText::Reverse ( )

Reverses the Dtk_CompositeText and included Dtk_Texts.

See also: Dtk_Text::Reverse

Returns: dtkNoError if OK

◆ SetAsDeprecated() [1/2]

Dtk_CompositeText::SetAsDeprecated	(	"2020.2"	,
		"Use CreateFrameAsGeometry(Dtk_tab<Dtk_CurvePtr> &outGeoms) instead"
	)		const &

Processes geometrical elements from Dtk_CompositeText frame type - and included Dtk_Texts -.

Parameters

outGeoms The resulting geometries

Returns: dtkNoError if OK

◆ SetAsDeprecated() [2/2]

Dtk_CompositeText::SetAsDeprecated	(	"Undefined"	,
		"Use GetOuterBoundingBox"
	)		)[DTK_NB_ANCHOR_TYPES] const &

Processes all the Dtk_CompositeText outer anchor points.

Deprecated:: Use GetOuterBoundingBox() const function instead.

Parameters

outTabPnts the resulting anchor point array

Returns: dtkNoError if OK

◆ SetInnerAnchorPoint()

Dtk_ErrorStatus Dtk_CompositeText::SetInnerAnchorPoint	(	const Dtk_pnt &	inNewLocationPnt,
		const Dtk_anchor_type &	inNewAnchorType = `DTK_ANCHOR_BOTTOM_LEFT`,
		const Dtk_Int32 &	inStartingGetText = `-1`,
		const Dtk_Int32 &	inNumGetTexts = `-1`,
		const Dtk_Int32 &	inStartingSetText = `-1`,
		const Dtk_Int32 &	inNumSetTexts = `-1`
	)

Set the Dtk_CompositeText inner anchor point.

Parameters

inNewLocationPnt	The new anchor point
inNewAnchorType	The new anchor type
inStartingGetText	The starting text - -1 to process from the 1st text - for the old anchor points process
inNumGetTexts	The number of processed texts - -1 to process all texts from starting text - for the old anchor points process
inStartingSetText	The starting text - -1 to process from the 1st text - for the new anchor points process
inNumSetTexts	The number of processed texts - -1 to process all texts from starting text - for the new anchor points process

Returns: dtkNoError if OK

◆ SetInnerXAxis()

Dtk_ErrorStatus Dtk_CompositeText::SetInnerXAxis ( const Dtk_dir & inXAxis )

Sets the inner bounding box X Axis for the Dtk_CompositeText and included Dtk_Texts.

Parameters

inXAxis The new inner bounding box X Axis

Returns: dtkNoError if OK

◆ SetInnerXYAxis()

Dtk_ErrorStatus Dtk_CompositeText::SetInnerXYAxis	(	const Dtk_dir &	inXaxis,
		const Dtk_dir &	inYaxis
	)

Sets the inner bounding box X and Y axes for the Dtk_CompositeText and included Dtk_Texts.

Parameters

inXAxis	The new inner bounding box X Axis
inYAxis	The new inner bounding box Y Axis

Returns: dtkNoError if OK

◆ SetInnerYAxis()

Dtk_ErrorStatus Dtk_CompositeText::SetInnerYAxis ( const Dtk_dir & axis_dir )

Sets the inner bounding box Y Axis for the Dtk_CompositeText and included Dtk_Texts.

Parameters

inYAxis The new inner bounding box Y Axis

Returns: dtkNoError if OK

◆ SetOuterAnchorPoint()

Dtk_ErrorStatus Dtk_CompositeText::SetOuterAnchorPoint	(	const Dtk_pnt &	inNewLocationPnt,
		const Dtk_anchor_type &	inNewAnchorType = `DTK_ANCHOR_BOTTOM_LEFT`,
		const Dtk_Int32 &	inStartingGetText = `-1`,
		const Dtk_Int32 &	inNumGetTexts = `-1`,
		const Dtk_Int32 &	inStartingSetText = `-1`,
		const Dtk_Int32 &	inNumSetTexts = `-1`
	)

Set the Dtk_CompositeText outer anchor point.

Parameters

inNewLocationPnt	The new anchor point
inNewAnchorType	The new anchor type
inStartingGetText	The starting text - -1 to process from the 1st text - for the old anchor points process
inNumGetTexts	The number of processed texts - -1 to process all texts from starting text - for the old anchor points process
inStartingSetText	The starting text - -1 to process from the 1st text - for the new anchor points process
inNumSetTexts	The number of processed texts - -1 to process all texts from starting text - for the new anchor points process
inOffSet	For internal use only
inBoundingType	The bounding type

Returns: dtkNoError if OK

◆ SetOuterXAxis()

Dtk_ErrorStatus Dtk_CompositeText::SetOuterXAxis ( const Dtk_dir & inXAxis )

Sets the outer bounding box X Axis for the Dtk_CompositeText and included Dtk_Texts.

Parameters

inXAxis The new outer bounding box X Axis

Returns: dtkNoError if OK

◆ SetOuterXYAxis()

Dtk_ErrorStatus Dtk_CompositeText::SetOuterXYAxis	(	const Dtk_dir &	inXaxis,
		const Dtk_dir &	inYaxis
	)

Sets the outer bounding box X and Y axes for the Dtk_CompositeText and included Dtk_Texts.

Parameters

inXAxis	The new outer bounding box X Axis
inYAxis	The new outer bounding box Y Axis

Returns: dtkNoError if OK

◆ SetOuterYAxis()

Dtk_ErrorStatus Dtk_CompositeText::SetOuterYAxis ( const Dtk_dir & axis_dir )

Sets the outer bounding box Y Axis for the Dtk_CompositeText and included Dtk_Texts.

Parameters

inYAxis The new outer bounding box Y Axis

Returns: dtkNoError if OK

◆ SetWrappingWidth()

void Dtk_CompositeText::SetWrappingWidth ( const Dtk_Double64 & inWrappingWidth )

Sets the wrapping width.

Parameters

inWrappingWidth The new wrapping width

◆ Transform()

Dtk_ErrorStatus Dtk_CompositeText::Transform ( const Dtk_transfo & inTransfo )

Applies a transformation matrix to the Dtk_CompositeText and included Dtk_Texts.

Parameters

inTransfo The transformation matrix to apply

◆ Translate()

Dtk_ErrorStatus Dtk_CompositeText::Translate ( const Dtk_dir & inTranslateDir )

Translates the Dtk_CompositeText giving a translation vector.

Parameters

inTranslateDir the translation vector

Returns: dtkNoError if OK

Friends And Related Function Documentation

◆ operator+

Dtk_CompositeText operator+	(	Dtk_CompositeText	s1,
		Dtk_CompositeText	s2
	)

friend

Add all the Dtk_Text from the two Dtk_CompositeText.

Parameters

s1	the first composite text
s2	the second composite text

Returns: the resulting Dtk_CompositeText

◆ operator<<

std::ostream& operator<<	(	std::ostream &	o,
		const Dtk_CompositeText &	d
	)

friend

Public Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ~Dtk_CompositeText()

◆ Dtk_CompositeText() [1/6]

◆ Dtk_CompositeText() [2/6]

◆ Dtk_CompositeText() [3/6]

◆ Dtk_CompositeText() [4/6]

◆ Dtk_CompositeText() [5/6]

◆ Dtk_CompositeText() [6/6]

Member Function Documentation

◆ AddText()

◆ Clear()

◆ ConvertToDtk_string()

◆ CreateFrameAsGeometry()

◆ GetInfo() [1/2]

◆ GetInfo() [2/2]

◆ GetInnerBoundingBox() [1/2]

◆ GetInnerBoundingBox() [2/2]

◆ GetNumTexts()

◆ GetOuterBoundingBox() [1/2]

◆ GetOuterBoundingBox() [2/2]

◆ GetWrappingWidth()

◆ operator+=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ ReplaceTexts()

◆ Reverse()

◆ SetAsDeprecated() [1/2]

◆ SetAsDeprecated() [2/2]

◆ SetInnerAnchorPoint()

◆ SetInnerXAxis()

◆ SetInnerXYAxis()

◆ SetInnerYAxis()

◆ SetOuterAnchorPoint()

◆ SetOuterXAxis()

◆ SetOuterXYAxis()

◆ SetOuterYAxis()

◆ SetWrappingWidth()

◆ Transform()

◆ Translate()

Friends And Related Function Documentation

◆ operator+

◆ operator<<
