Dtk_CylindricalSurface Class Reference

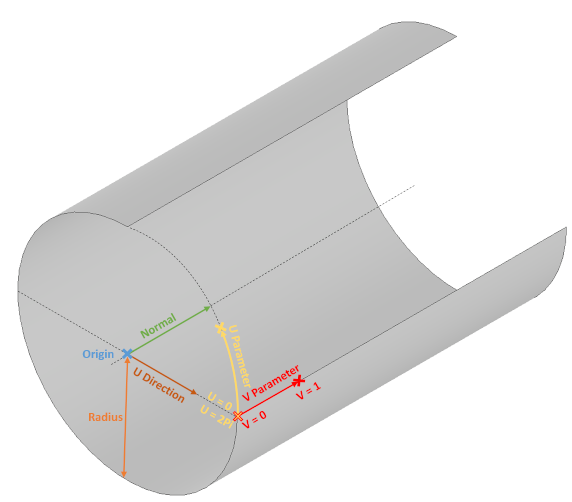

This is the Cylindrical Surface Class. U parametrisation : [0.0 - 2PI] 0.0 is given by inUDirection or inXdir or inOriginDirection V parametrisation : [-infini - +infini] as revolved curve is a line. More...

+ Inheritance diagram for Dtk_CylindricalSurface:

Public Member Functions

Dtk_ErrorStatus _ComputeAnyDerivative (Dtk_Double64 inUvalue, Dtk_Double64 inVvalue, int inUdiff, int inVdiff, Dtk_dir &outdir, int exttype) const

Dtk_ErrorStatus _ComputeMultipleDerivative (Dtk_Double64 inUvalue, Dtk_Double64 inVvalue, int inUmaxdiff, int inVmaxdiff, int inUVdiffsummax, Dtk_dir *outdirs, int exttype) const

Dtk_bool _HasInternalNurbs () const

virtual Dtk_ErrorStatus _Store (void *)

Dtk_ErrorStatus ComputeBoundingBox (Dtk_pnt &outMin, Dtk_pnt &outMax) const
 Set Surface Parametrisation : Umin = inDomain[0] Umax = inDomain[1] Vmin = inDomain[2] Vmax = inDomain[3]. More...

virtual Dtk_ErrorStatus ComputeNormal (const Dtk_Double64 &inUValue, const Dtk_Double64 &inVValue, Dtk_dir &outDir) const
 Compute Normal on UV point. More...

virtual Dtk_ErrorStatus ComputeUVPoint (const Dtk_Double64 &inUValue, const Dtk_Double64 &inVValue, Dtk_pnt &outpnt) const
 Compute 3D point. More...

Dtk_ErrorStatus ComputeUVto3DFirstDerivative (const Dtk_Double64 &inUValue, const Dtk_Double64 &inVValue, const Dtk_dir &inUVFirstDerivative, Dtk_dir &out3DFirstDerivative) const
 Compute 3D first derivative on UV point according to UV derivative. More...

Dtk_ErrorStatus ComputeUVto3DSecondDerivative (const Dtk_Double64 &inUValue, const Dtk_Double64 &inVValue, const Dtk_dir &inUVFirstDerivative, const Dtk_dir &inUVSecondDerivative, Dtk_dir &out3DSecondDerivative) const
 Compute 3D second derivative on UV point according to UV derivatives. More...

void DeleteCorrespondingNurbs ()

int DtkDynamicType (const int &inId)

virtual void dump (FILE *file=stdout)

Dtk_InfoPtr get_info () const

type_detk get_type_detk () const

const Dtk_pnt & GetAxisPosition () const
 Get origin
More...

Dtk_ErrorStatus GetDomain (Dtk_Double64 outDomain[]) const
 Get Surface Parametrisation : Umin = outDomain[0] Umax = outDomain[1] Vmin = outDomain[2] Vmax = outDomain[3]. More...

const Dtk_ID & GetID () const
 Get Internal UniqueID. More...

Dtk_Double64 GetRadius () const

const Dtk_dir & GetRevolutionAxis () const
 GetRevolutionAxis. More...

Dtk_CurvePtr GetRevolvedCurve () const
 GetRevolvedCurve. More...

virtual Dtk_Size_t GetSize () const

Dtk_ErrorStatus GetTrimUVBox (Dtk_Double64 outTrimValues[]) const
 Get Surface Trim Box : Umin = outTrimValues[0] Umax = outTrimValues[1] Vmin = outTrimValues[2] Vmax = outTrimValues[3]. More...

const Dtk_dir & GetXDirection () const
 Give U origin for parametrisation. More...

Dtk_dir GetYDirection () const
 Give Y Direction (Axis Placement can be indirect ) More...

const Dtk_dir & GetZDirection () const
 GetZDirection. More...

Dtk_InfoPtr & info ()

Dtk_bool IsTrimmed () const
 Return DTK_TRUE if Surface Is trimmed by parameter value. More...

virtual Dtk_bool IsUPeriodic () const
 Return DTK_TRUE If Periodic following U parameter. More...

virtual Dtk_bool IsVPeriodic () const
 Return DTK_TRUE If Periodic following V parameter. More...

Dtk_ErrorStatus Normalize ()

virtual void PrepareTransfo ()

Dtk_ErrorStatus SetStartAngle (Dtk_Double64 inAngle)

Dtk_ErrorStatus SetTrimUVBox (Dtk_Double64 inDomain[])
 Set Surface Trim Box : Umin = inTrimValues[0] Umax = inTrimValues[1] Vmin = inTrimValues[2] Vmax = inTrimValues[3]. More...

virtual Dtk_NurbsSurfacePtr ToNurbs (const Dtk_Double64 *inTrimDomain=NULL) const
 Convert a surface into a Nurbs, keeping the parametrisation of the initial surface. More...

Dtk_ErrorStatus Transform (const Dtk_transfo &inTransfo)


Static Public Member Functions

static Dtk_RevolutionSurfacePtr Create (const Dtk_CurvePtr &inRevolvedCurve, const Dtk_pnt &inAxisposition, const Dtk_dir &inRevolutionAxis, const Dtk_dir &inUDirection, const Dtk_dir &inYDir=Dtk_dir())
 OBSOLETE Create Dtk_RevolutionSurface. More...

static Dtk_CylindricalSurfacePtr Create (const Dtk_CylindricalSurface &inSurfToCopy)

static Dtk_CylindricalSurfacePtr Create (const Dtk_pnt &inOrigin, const Dtk_dir &inNormal, const Dtk_dir &inUDirection, const Dtk_Double64 &inRadius, const Dtk_dir &inYDirection=Dtk_dir())
 Create an infinite cylinder. More...

static Dtk_RevolutionSurfacePtr Create (const Dtk_RevolutionSurface &inSurfToCopy)

static Dtk_SurfacePtr Create (const Dtk_Surface &s)
 Create Surface by copy. More...

static Dtk_CylindricalSurface * DtkDynamicCast (Dtk_Object *s)


Protected Types

enum  { _typeID = DTK_TYPE_OBJECT }

enum  { _typeID = DTK_TYPE_ENTITY }

enum  { _typeID = DTK_TYPE_REVOLUTION_SURFACE }

enum  { _typeID = DTK_TYPE_CYLINDRICAL_SURFACE }

enum  { _typeID = DTK_TYPE_SURFACE }


Protected Member Functions

void _copy (const Dtk_Entity &s)

void _copy (const Dtk_Object &s)

void _init ()

void _reset ()

virtual Dtk_Object * Clone ()

 Dtk_CylindricalSurface ()

 Dtk_CylindricalSurface (const Dtk_CylindricalSurface &s)

 Dtk_CylindricalSurface (const Dtk_pnt &inOrigin, const Dtk_dir &inNormal, const Dtk_dir &inUDirection, const Dtk_dir &inYDirection, const Dtk_Double64 &inRadius)

virtual ~Dtk_CylindricalSurface ()


Protected Attributes

Dtk_Handle * _Private

unsigned long count_


Friends

class Dtk_SmartPtr< Dtk_CylindricalSurface >


Detailed Description

This is the Cylindrical Surface Class. U parametrisation : [0.0 - 2PI] 0.0 is given by inUDirection or inXdir or inOriginDirection V parametrisation : [-infini - +infini] as revolved curve is a line.

It is part of the Dtk_CylindricalSurface entity

Warning
Please use the Dtk_CylindricalSurfacePtr class to handle it...

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
protectedinherited
Enumerator
_typeID
13 { _typeID = DTK_TYPE_OBJECT };

◆ anonymous enum

anonymous enum
protectedinherited
Enumerator
_typeID
333 { _typeID = DTK_TYPE_ENTITY };

◆ anonymous enum

anonymous enum
protectedinherited
Enumerator
_typeID
1023 { _typeID = DTK_TYPE_REVOLUTION_SURFACE};

◆ anonymous enum

anonymous enum
protected
Enumerator
_typeID
1310 { _typeID = DTK_TYPE_CYLINDRICAL_SURFACE };

◆ anonymous enum

anonymous enum
protectedinherited
Enumerator
_typeID
760 { _typeID = DTK_TYPE_SURFACE };

Constructor & Destructor Documentation

◆ Dtk_CylindricalSurface() [1/3]

Dtk_CylindricalSurface::Dtk_CylindricalSurface ( )
protected

◆ Dtk_CylindricalSurface() [2/3]

Dtk_CylindricalSurface::Dtk_CylindricalSurface ( const Dtk_CylindricalSurface &  s)
protected

◆ Dtk_CylindricalSurface() [3/3]

Dtk_CylindricalSurface::Dtk_CylindricalSurface ( const Dtk_pnt &  inOrigin,
const Dtk_dir &  inNormal,
const Dtk_dir &  inUDirection,
const Dtk_dir &  inYDirection,
const Dtk_Double64 &  inRadius
)
protected

◆ ~Dtk_CylindricalSurface()

virtual Dtk_CylindricalSurface::~Dtk_CylindricalSurface ( )
protectedvirtual

Member Function Documentation

◆ _ComputeAnyDerivative()

Dtk_ErrorStatus Dtk_CylindricalSurface::_ComputeAnyDerivative ( Dtk_Double64  inUvalue,
Dtk_Double64  inVvalue,
int  inUdiff,
int  inVdiff,
Dtk_dir &  outdir,
int  exttype
) const
virtual

Reimplemented from Dtk_RevolutionSurface.

◆ _ComputeMultipleDerivative()

Dtk_ErrorStatus Dtk_CylindricalSurface::_ComputeMultipleDerivative ( Dtk_Double64  inUvalue,
Dtk_Double64  inVvalue,
int  inUmaxdiff,
int  inVmaxdiff,
int  inUVdiffsummax,
Dtk_dir *  outdirs,
int  exttype
) const
virtual

Reimplemented from Dtk_RevolutionSurface.

◆ _copy() [1/2]

void Dtk_Entity::_copy ( const Dtk_Entity &  s)
protectedinherited

◆ _copy() [2/2]

void Dtk_Object::_copy ( const Dtk_Object &  s)
protectedinherited

◆ _HasInternalNurbs()

Dtk_bool Dtk_Surface::_HasInternalNurbs ( ) const
inherited

◆ _init()

void Dtk_Entity::_init ( )
protectedinherited

◆ _reset()

void Dtk_Entity::_reset ( )
protectedinherited

◆ _Store()

virtual Dtk_ErrorStatus Dtk_CylindricalSurface::_Store ( void *  )
virtual

Reimplemented from Dtk_RevolutionSurface.

◆ Clone()

virtual Dtk_Object* Dtk_CylindricalSurface::Clone ( )
protectedvirtual

Reimplemented from Dtk_RevolutionSurface.

1314 { return new Dtk_CylindricalSurface(*this); }

◆ ComputeBoundingBox()

Dtk_ErrorStatus Dtk_Surface::ComputeBoundingBox ( Dtk_pnt &  outMin,
Dtk_pnt &  outMax
) const
inherited

Set Surface Parametrisation : Umin = inDomain[0] Umax = inDomain[1] Vmin = inDomain[2] Vmax = inDomain[3].

Compute Bounding Box

◆ ComputeNormal()

virtual Dtk_ErrorStatus Dtk_CylindricalSurface::ComputeNormal ( const Dtk_Double64 &  inUValue,
const Dtk_Double64 &  inVValue,
Dtk_dir &  outDir
) const
virtual

Compute Normal on UV point.

Reimplemented from Dtk_Surface.

◆ ComputeUVPoint()

virtual Dtk_ErrorStatus Dtk_CylindricalSurface::ComputeUVPoint ( const Dtk_Double64 &  inUValue,
const Dtk_Double64 &  inVValue,
Dtk_pnt &  outpnt
) const
virtual

Compute 3D point.

Reimplemented from Dtk_RevolutionSurface.

◆ ComputeUVto3DFirstDerivative()

Dtk_ErrorStatus Dtk_Surface::ComputeUVto3DFirstDerivative ( const Dtk_Double64 &  inUValue,
const Dtk_Double64 &  inVValue,
const Dtk_dir &  inUVFirstDerivative,
Dtk_dir &  out3DFirstDerivative
) const
inherited

Compute 3D first derivative on UV point according to UV derivative.

◆ ComputeUVto3DSecondDerivative()

Dtk_ErrorStatus Dtk_Surface::ComputeUVto3DSecondDerivative ( const Dtk_Double64 &  inUValue,
const Dtk_Double64 &  inVValue,
const Dtk_dir &  inUVFirstDerivative,
const Dtk_dir &  inUVSecondDerivative,
Dtk_dir &  out3DSecondDerivative
) const
inherited

Compute 3D second derivative on UV point according to UV derivatives.

◆ Create() [1/5]

static Dtk_RevolutionSurfacePtr Dtk_RevolutionSurface::Create ( const Dtk_CurvePtr &  inRevolvedCurve,
const Dtk_pnt &  inAxisposition,
const Dtk_dir &  inRevolutionAxis,
const Dtk_dir &  inUDirection,
const Dtk_dir &  inYDir = Dtk_dir()
)
staticinherited

OBSOLETE Create Dtk_RevolutionSurface.

Deprecated:
Create Dtk_StandardRevolutionSurface
Parameters
[in]inRevolvedCurve: Curve to be revolved
[in]inAxisposition: Revolution Axis Position
[in]inRevolutionAxis: Revolution Axis or Zdir
[in]inUDirection: UDirection (origin of Uparametrisation) or Xdir
[in]inYDir: Optional Ydir
Returns
Dtk_RevolutionSurfacePtr created surface

◆ Create() [2/5]

static Dtk_CylindricalSurfacePtr Dtk_CylindricalSurface::Create ( const Dtk_CylindricalSurface &  inSurfToCopy)
static

◆ Create() [3/5]

static Dtk_CylindricalSurfacePtr Dtk_CylindricalSurface::Create ( const Dtk_pnt &  inOrigin,
const Dtk_dir &  inNormal,
const Dtk_dir &  inUDirection,
const Dtk_Double64 &  inRadius,
const Dtk_dir &  inYDirection = Dtk_dir()
)
static

Create an infinite cylinder.

Parameters
[in]inOrigin: Cylinder origin
[in]inNormal: Cylinder Axis or Zdir
[in]inUDirection: UDirection ( origin of Uparametrisation) or Xdir
[in]inRadius: Cylinder Radius
[in]inYDir: Optional Ydir
Returns
Dtk_CylindricalSurfacePtr created surface

◆ Create() [4/5]

static Dtk_RevolutionSurfacePtr Dtk_RevolutionSurface::Create ( const Dtk_RevolutionSurface &  inSurfToCopy)
staticinherited

◆ Create() [5/5]

static Dtk_SurfacePtr Dtk_Surface::Create ( const Dtk_Surface &  s)
staticinherited

Create Surface by copy.

◆ DeleteCorrespondingNurbs()

void Dtk_Surface::DeleteCorrespondingNurbs ( )
inherited

◆ DtkDynamicCast()

static Dtk_CylindricalSurface* Dtk_CylindricalSurface::DtkDynamicCast ( Dtk_Object *  s)
static

◆ DtkDynamicType()

int Dtk_CylindricalSurface::DtkDynamicType ( const int &  inId)
virtual

Reimplemented from Dtk_RevolutionSurface.

◆ dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout)
virtualinherited

◆ get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const
inherited

◆ get_type_detk()

type_detk Dtk_CylindricalSurface::get_type_detk ( ) const
virtual

Reimplemented from Dtk_RevolutionSurface.

◆ GetAxisPosition()

const Dtk_pnt& Dtk_RevolutionSurface::GetAxisPosition ( ) const
inherited

Get origin

Returns
Center point of revolution

◆ GetDomain()

Dtk_ErrorStatus Dtk_CylindricalSurface::GetDomain ( Dtk_Double64  outDomain[]) const
virtual

Get Surface Parametrisation : Umin = outDomain[0] Umax = outDomain[1] Vmin = outDomain[2] Vmax = outDomain[3].

Reimplemented from Dtk_RevolutionSurface.

◆ GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const
inherited

Get Internal UniqueID.

Returns
InternalID

◆ GetRadius()

Dtk_Double64 Dtk_CylindricalSurface::GetRadius ( ) const

◆ GetRevolutionAxis()

const Dtk_dir& Dtk_RevolutionSurface::GetRevolutionAxis ( ) const
inherited

GetRevolutionAxis.

Returns
revolution Axis (same as GetZDirection )

◆ GetRevolvedCurve()

Dtk_CurvePtr Dtk_RevolutionSurface::GetRevolvedCurve ( ) const
inherited

GetRevolvedCurve.

Returns
Curve to be revolved

◆ GetSize()

virtual Dtk_Size_t Dtk_CylindricalSurface::GetSize ( ) const
virtual

Reimplemented from Dtk_RevolutionSurface.

◆ GetTrimUVBox()

Dtk_ErrorStatus Dtk_Surface::GetTrimUVBox ( Dtk_Double64  outTrimValues[]) const
inherited

Get Surface Trim Box : Umin = outTrimValues[0] Umax = outTrimValues[1] Vmin = outTrimValues[2] Vmax = outTrimValues[3].

◆ GetXDirection()

const Dtk_dir& Dtk_RevolutionSurface::GetXDirection ( ) const
inherited

Give U origin for parametrisation.

Returns
Dtk_dir for U start

◆ GetYDirection()

Dtk_dir Dtk_RevolutionSurface::GetYDirection ( ) const
inherited

Give Y Direction (Axis Placement can be indirect )

Returns
Dtk_dir

◆ GetZDirection()

const Dtk_dir& Dtk_RevolutionSurface::GetZDirection ( ) const
inherited

GetZDirection.

Returns
revolution Axis (same as GetRevolutionAxis )

◆ info()

Dtk_InfoPtr& Dtk_Entity::info ( )
inherited

◆ IsTrimmed()

Dtk_bool Dtk_Surface::IsTrimmed ( ) const
inherited

Return DTK_TRUE if Surface Is trimmed by parameter value.

◆ IsUPeriodic()

virtual Dtk_bool Dtk_Surface::IsUPeriodic ( ) const
virtualinherited

Return DTK_TRUE If Periodic following U parameter.

Reimplemented in Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_LinearExtrusionSurface, and Dtk_NurbsSurface.

◆ IsVPeriodic()

virtual Dtk_bool Dtk_Surface::IsVPeriodic ( ) const
virtualinherited

Return DTK_TRUE If Periodic following V parameter.

Reimplemented in Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_LinearExtrusionSurface, and Dtk_NurbsSurface.

◆ Normalize()

Dtk_ErrorStatus Dtk_RevolutionSurface::Normalize ( )
inherited

◆ PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )
virtualinherited

Reimplemented in Dtk_OffsetSurface.

◆ SetStartAngle()

Dtk_ErrorStatus Dtk_RevolutionSurface::SetStartAngle ( Dtk_Double64  inAngle)
inherited

◆ SetTrimUVBox()

Dtk_ErrorStatus Dtk_RevolutionSurface::SetTrimUVBox ( Dtk_Double64  inTrimValues[])
virtualinherited

Set Surface Trim Box : Umin = inTrimValues[0] Umax = inTrimValues[1] Vmin = inTrimValues[2] Vmax = inTrimValues[3].

Reimplemented from Dtk_Surface.

◆ ToNurbs()

virtual Dtk_NurbsSurfacePtr Dtk_CylindricalSurface::ToNurbs ( const Dtk_Double64 *  inTrimDomain = NULL) const
virtual

Convert a surface into a Nurbs, keeping the parametrisation of the initial surface.

Reimplemented from Dtk_RevolutionSurface.

◆ Transform()

Dtk_ErrorStatus Dtk_CylindricalSurface::Transform ( const Dtk_transfo &  inTransfo)
virtual

Reimplemented from Dtk_RevolutionSurface.

Friends And Related Function Documentation

◆ Dtk_SmartPtr< Dtk_CylindricalSurface >

friend class Dtk_SmartPtr< Dtk_CylindricalSurface >
friend

Field Documentation

◆ _Private

Dtk_Handle* Dtk_CylindricalSurface::_Private
protected

◆ count_

unsigned long Dtk_Object::count_
protectedinherited
Dtk_RevolutionSurface::_typeID
@ _typeID
Definition: util_geom_dtk.hpp:1023
DTK_TYPE_ENTITY
@ DTK_TYPE_ENTITY
Definition: define.h:466
Dtk_Surface::_typeID
@ _typeID
Definition: util_geom_dtk.hpp:760
DTK_TYPE_OBJECT
@ DTK_TYPE_OBJECT
Definition: define.h:464
DTK_TYPE_SURFACE
@ DTK_TYPE_SURFACE
Definition: define.h:114
Dtk_Entity::_typeID
@ _typeID
Definition: util_ent_dtk.hpp:333
DTK_TYPE_CYLINDRICAL_SURFACE
@ DTK_TYPE_CYLINDRICAL_SURFACE
Definition: define.h:93
Dtk_CylindricalSurface::Dtk_CylindricalSurface
Dtk_CylindricalSurface()
Dtk_Object::_typeID
@ _typeID
Definition: dtk_object.hpp:13
Dtk_CylindricalSurface::_typeID
@ _typeID
Definition: util_geom_dtk.hpp:1310
DTK_TYPE_REVOLUTION_SURFACE
@ DTK_TYPE_REVOLUTION_SURFACE
Definition: define.h:496
