Plmxml Write Samples

Table Of Contents:

• 0.Introduction
• 1.Assembly sample

Full samples source code

0.Introduction

PLMXML allows to write assemblies, where each leaf is a part written in another format. For our examples, we will write JT leaves, using Datakit JT Writer.

Before writing PLMXML files, you need to initialise Datakit API.

Checking the main, we need to :

• start Datakit API with Dtk_API::StartAPI function, and precise the working directory as its mandatory first parameter
• intialise tessellation, request for JT writer, we will need it to store Dtk_BodyPtr
• We remove wire creation while tessellating.

• stop Datakit API at the end with Dtk_API::StopAPI

  //start_of_plmxmlwmain
  int PlmxmlWriteSample(const Dtk_string& inResultDirectory)
  {
       std::cout << endl << "----------------------------------------------" << endl;
       std::cout << "Plmxml Write start" << endl;

       tess_InitTesselation("./", 0.005); // For JT : Init Tessellation : working directory and default tolerance (needed for writing bodies)
       tess_ComputeBoundariesFromMesh(0); // Disable wire creation on mesh during Brep tessellation.

       int err = PlmxmlwritesampleJT(inResultDirectory);

       tess_EndTesselation();  // End of tessellation
       std::cout << "Plmxml Write end" << endl;


       return err;
  }
  //end_of_plmxmlwmain

---

1.Assembly sample

This is a sample writing a simple assembly with instances, and metadatas.

//start_of_plmxmlwsample
template <typename T>
inline void Shift(T& mesh, double sh)
{
     Dtk_transfo t;
     t.addTranslate(Dtk_dir(sh, 0, 0));
     mesh->Transform(t);
}

Dtk_ErrorStatus CreateJtFileForPLMXML(const Dtk_string& ficname, const Dtk_BodyPtr& body)
{
     Dtk_ErrorStatus err;
     Dtk_Jtw_Interface J(ficname,err);
     CHECK_OK(err);
     CHECK_OK(J.AddBody(body));
     return dtkNoError;
}

Dtk_ErrorStatus PlmxmlwritesampleJT(const Dtk_string& inResultDirectory)
{
// create JT leaves
     Dtk_BodyPtr axle = sampleWriter::CreateCyl(0.2, 5);
     Dtk_BodyPtr wheel = sampleWriter::CreateCyl(1, 1);

     Dtk_string outputDirectory = inResultDirectory + L"dtk/Plmxml/";
     outputDirectory.FixPathSeparator();
     outputDirectory.mkdir();

     Dtk_string axlename = outputDirectory + L"axle.jt";
     Dtk_string wheelname = outputDirectory + L"wheel.jt";
     Dtk_string plmxmlfile = outputDirectory + L"sample1.plmxml";
     CHECK_OK(CreateJtFileForPLMXML(axlename, axle));
     CHECK_OK(CreateJtFileForPLMXML(wheelname, wheel));

// prepare datas for PLMXML
     Dtk_Int64 id_of_wheel = 1;
     Dtk_Int64 id_of_axles = 2;
     Dtk_dir X(1, 0, 0);
     Dtk_dir Y(0, 1, 0);
     Dtk_dir Z(0, 0, 1);
     Dtk_tab<Dtk_MetaDataPtr> meta1,meta2;
     meta1.push_back(Dtk_MetaData::CreateMetaData(Dtk_MetaData::TypeParameter, "One", "OneValue"));
     meta1.push_back(Dtk_MetaData::CreateMetaData(Dtk_MetaData::TypeParameter, "Two", "TwoValue"));
     meta2.push_back(Dtk_MetaData::CreateMetaData(Dtk_MetaData::TypeParameter, "Other", "OtherValue"));

// create PLMXML
     Dtk_ErrorStatus err;
     Dtk_Plmxmlw_Interface P(plmxmlfile, err, 0.001);  // scale millimeters to meters
     CHECK_OK(err);

     CHECK_OK(P.OpenInstance("RootNode"));   // Rootnode creation
          CHECK_OK(P.OpenInstance("Axles", id_of_axles)); // open Axles, give an ID for future reinstance, placement by default : identity matrix

               CHECK_OK(P.OpenInstance("Axle")); // open
                    CHECK_OK(P.SetExternFic(axlename));
               CHECK_OK(P.CloseLastInstance());  // close Axle

               CHECK_OK(P.OpenInstance("Wheels")); // open
                    CHECK_OK(P.OpenInstance("Wheel", id_of_wheel, Dtk_transfo(X, Y, Z, Dtk_pnt(0, 0, 5)))); // open instance
                         CHECK_OK(P.SetExternFic(wheelname));
                    CHECK_OK(P.CloseLastInstance());  // close Wheel

                    CHECK_OK(P.OpenInstance("Wheel2", id_of_wheel, Dtk_transfo(X, -Y, -Z, Dtk_pnt()), meta1)); // open reinstance
                    CHECK_OK(P.CloseLastInstance());  // reinstancied : must close Wheel immediatly.

               CHECK_OK(P.CloseLastInstance());  // close Wheels

          CHECK_OK(P.CloseLastInstance());  // close Axles

          CHECK_OK(P.OpenInstance("Axles2", id_of_axles, Dtk_transfo(X, Y, Z, Dtk_pnt(10, 0, 0)),meta2)); // reinstance whole subassembly with matrix
          CHECK_OK(P.CloseLastInstance());  // reinstancied : must close Wheel immediatly.

     CHECK_OK(P.CloseLastInstance());  // close RootNode
     std::cout << "=> " << plmxmlfile.c_str() << endl;
     return dtkNoError;// Automatic Finish while P released
}
//end_of_plmxmlwsample

Lets see the function PlmxmlwritesampleJT. We provide the ouptput directory.

• First, we create each parts. In our example, we create JT parts.
  We create 2 cylinders, axle and wheel, radius 0.2 meters, height 5 meters for axle, and radius 1 meter and height 1 meter for wheel.
  Note that PLMXML unit is in meters.
  Function CreateJtFileForPLMXML create the JT files, check Jt Writer documentation for more options for these files.
  You can check axle.jt and wheel.jt from this point into the inResultDirectory.

• Next, we prepare datas for PLMXML, vectors X,Y,Z for assemblies matrices, metadatas, and id for reinstancied parts or subassemblies.
  meta1 will contain 2 datas ("One","Two"), meta2 will contain one data "Other"


• Then creating the PLMXML
  The constructor needs plmxml file, gives back an output error (checked after), and also 0.001 : this is a scale between millimeters and meters, because we will provide all matrix in millimeters after, so we need to scale to meters.
  We open the RootNode.
  Then we create the node "Axles" : we provide id_of_axles because we will reinstance the whole subassembly "Axels" later. Note that you can provide id you want.
  We create subassembly "Axle", and then add the extern file "axlename" that is a JT file.
  We create subassembly "wheels"
  We create subassembly "wheel", providing id_of_wheel for later, and a matrix.
  For "wheel2" : we reuse id_of_wheel : it means we reinstanciate the same wheel (with another matrice), do not call SetExternFic anymore for wheel, juste CloseLastInstance immediatly
  We also provide "meta1" to "wheel2" instance.
  We close Wheels ans Axles.
  Then we reinstanciate whole Axles subassembly, calling it "Axles2", and reclose immediatly. We also provide "meta2"
  The destructor of P finish the process.

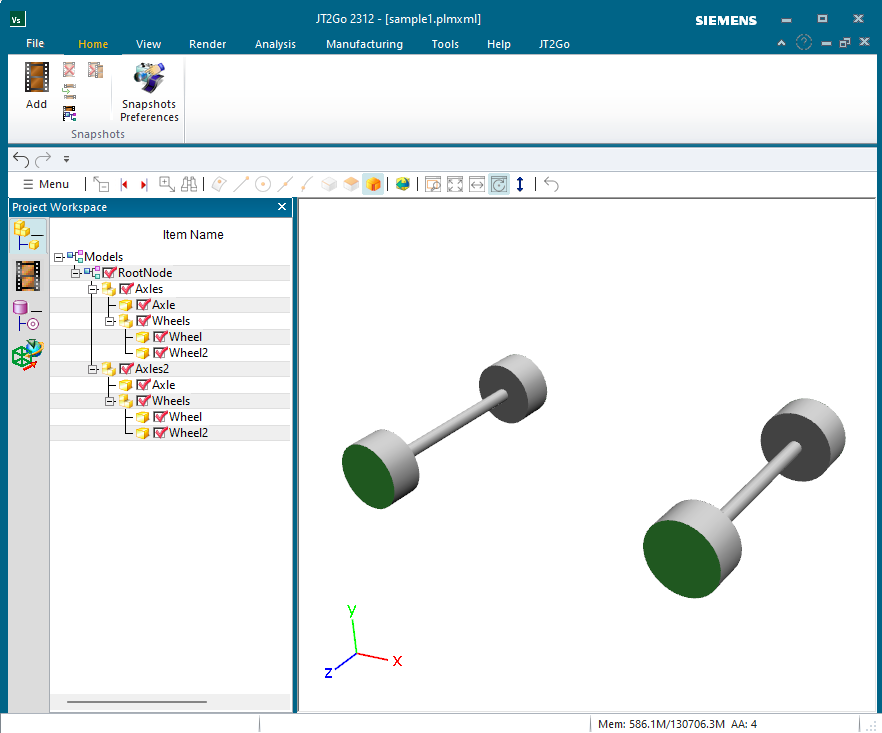

  Here is the result : we use JT2Go to see the result, and we retrieve the fullassembly

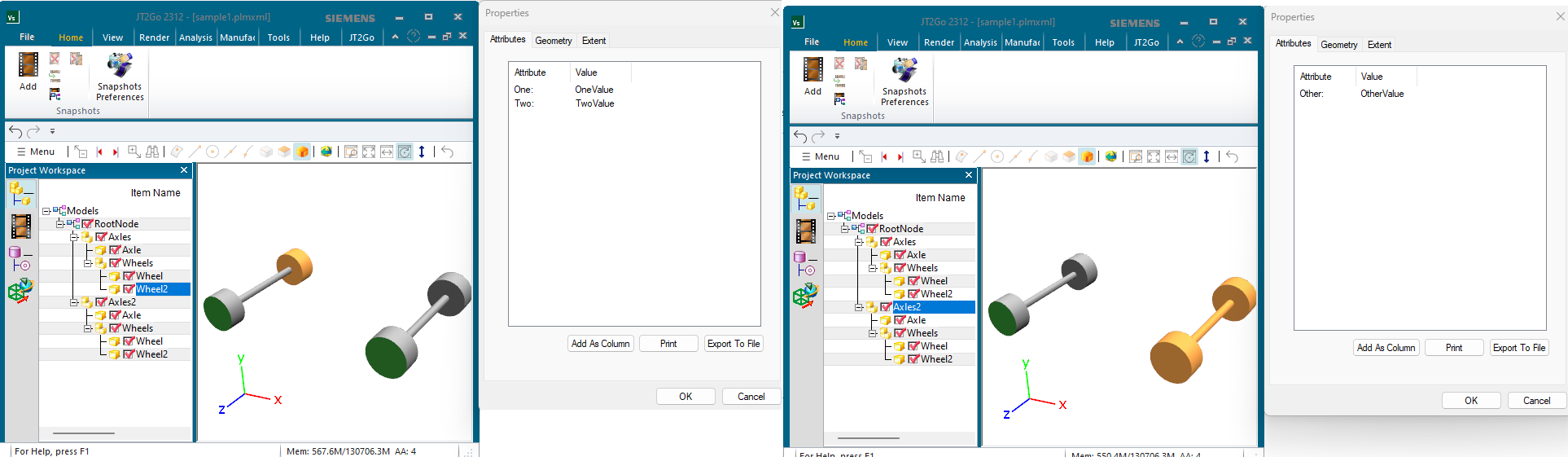

We see the metadatas on the selected instances.

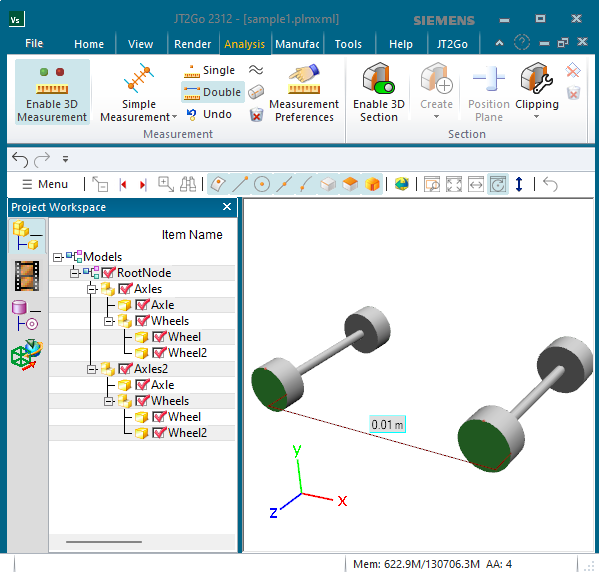

We see unit is in meters.

---
