Dtk_TopologicalEntity Class Reference

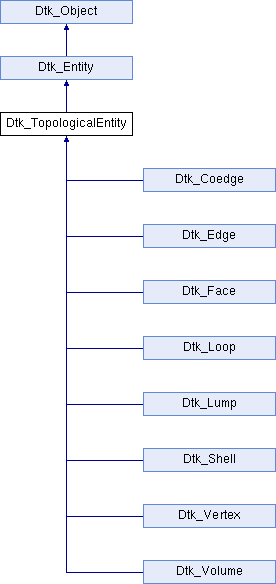

Inheritance diagram for Dtk_TopologicalEntity:

Public Member Functions
virtual Dtk_ErrorStatus	_Store (void *)
int	DtkDynamicType (const int &inId)
	Get smart pointer type. More...
virtual void	dump (FILE *file=stdout)
Dtk_InfoPtr	get_info () const
virtual enum type_detk	get_type_detk () const
	Return Type of entity. More...
const Dtk_ID &	GetID () const
	Get Internal UniqueID. More...
virtual Dtk_Size_t	GetSize () const
virtual Dtk_ID	GetTopoID () const
Dtk_InfoPtr &	info ()
virtual void	PrepareTransfo ()
virtual Dtk_ErrorStatus	SetParentBody (const Dtk_BodyPtr &inParentBody)
virtual Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Transform object. More...

Static Public Member Functions
static Dtk_TopologicalEntity *	DtkDynamicCast (Dtk_Object *inObject)
	Cast object in vertex. More...

Protected Types
enum	{ _typeID = DTK_TYPE_TOPOLOGICAL_REPRESENTATION_ITEM }
enum	{ _typeID = DTK_TYPE_ENTITY }

Protected Member Functions
virtual void	_Clone (Dtk_TopologicalEntityPtr &outTopo, Dtk_Body *_inParentBody)=0
void	_copy (const Dtk_Entity &s)
void	_copy (const Dtk_Object &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()
	Dtk_TopologicalEntity ()
	Dtk_TopologicalEntity (const Dtk_TopologicalEntity &inToBeCopied)
virtual	~Dtk_TopologicalEntity ()

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_Body
class	Dtk_SmartPtr< Dtk_TopologicalEntity >

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Enumerator
_typeID

{ _typeID = DTK_TYPE_TOPOLOGICAL_REPRESENTATION_ITEM };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_ENTITY };

Constructor & Destructor Documentation

Dtk_TopologicalEntity() [1/2]

Dtk_TopologicalEntity::Dtk_TopologicalEntity ( )

protected

{}

Dtk_TopologicalEntity() [2/2]

Dtk_TopologicalEntity::Dtk_TopologicalEntity ( const Dtk_TopologicalEntity &  inToBeCopied )

protected

: Dtk_Entity(inToBeCopied){}

~Dtk_TopologicalEntity()

virtual Dtk_TopologicalEntity::~Dtk_TopologicalEntity ( )

protectedvirtual

Member Function Documentation

_Clone()

virtual void Dtk_TopologicalEntity::_Clone ( Dtk_TopologicalEntityPtr &  outTopo, Dtk_Body *  _inParentBody  )

protectedpure virtual

Implemented in Dtk_Shell, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, and Dtk_Vertex.

_copy() [1/2]

void Dtk_Entity::_copy ( const Dtk_Entity &  s )

protectedinherited

_copy() [2/2]

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_init()

void Dtk_Entity::_init ( )

protectedinherited

_reset()

void Dtk_Entity::_reset ( )

protectedinherited

_Store()

virtual Dtk_ErrorStatus Dtk_Entity::_Store ( void *  )

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

Clone()

virtual Dtk_Object* Dtk_TopologicalEntity::Clone ( )

protectedvirtual

Implements Dtk_Entity.

{return NULL;}

DtkDynamicCast()

static Dtk_TopologicalEntity* Dtk_TopologicalEntity::DtkDynamicCast ( Dtk_Object *  inObject )

static

Cast object in vertex.

Parameters

[in]

inObject

: object to cast

Returns

static Dtk_Vertex or NULL

DtkDynamicType()

int Dtk_TopologicalEntity::DtkDynamicType ( const int &  inId )

virtual

Get smart pointer type.

Parameters

[in]

inId

:

Returns

int

Reimplemented from Dtk_Entity.

Reimplemented in Dtk_Shell, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, and Dtk_Vertex.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const

inherited

get_type_detk()

virtual enum type_detk Dtk_TopologicalEntity::get_type_detk ( ) const

virtual

Return Type of entity.

Returns

enum type_detk

Implements Dtk_Entity.

Reimplemented in Dtk_Shell, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, and Dtk_Vertex.

GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const

inherited

Get Internal UniqueID.

Returns

InternalID

GetSize()

virtual Dtk_Size_t Dtk_Entity::GetSize ( ) const

virtualinherited

Reimplemented from Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

GetTopoID()

virtual Dtk_ID Dtk_TopologicalEntity::GetTopoID ( ) const

virtual

Reimplemented in Dtk_Shell, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, and Dtk_Vertex.

info()

Dtk_InfoPtr& Dtk_Entity::info ( )

inherited

PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )

virtualinherited

Reimplemented in Dtk_OffsetSurface.

SetParentBody()

virtual Dtk_ErrorStatus Dtk_TopologicalEntity::SetParentBody ( const Dtk_BodyPtr &  inParentBody )

virtual

Reimplemented in Dtk_Shell, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, and Dtk_Vertex.

Transform()

virtual Dtk_ErrorStatus Dtk_TopologicalEntity::Transform ( const Dtk_transfo &  inTransfo )

virtual

Transform object.

Parameters

[in]

inTransfo

: matrix to apply

Returns

Dtk_ErrorStatus

Implements Dtk_Entity.

Friends And Related Function Documentation

Dtk_Body

friend class Dtk_Body

friend

Dtk_SmartPtr< Dtk_TopologicalEntity >

friend class Dtk_SmartPtr< Dtk_TopologicalEntity >

friend

Field Documentation

_Private

Dtk_Handle* Dtk_Entity::_Private

protectedinherited

count_

unsigned long Dtk_Object::count_

protectedinherited
