Dtk_Curve Class Reference

Dtk_Curve is a geometrical entity representing a curve. It is an abstract class that cannot be instancied.
. More...

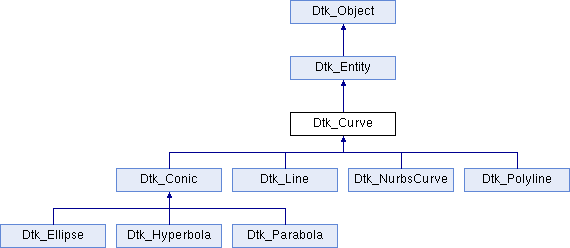

Inheritance diagram for Dtk_Curve:

Public Member Functions
virtual Dtk_ErrorStatus	_ComputeAnyDerivative (Dtk_Double64 inUvalue, int inUdiff, Dtk_dir &outdir, int exttype) const
virtual Dtk_ErrorStatus	_Store (void *)
virtual Dtk_ErrorStatus	ComputeBoundingBox (Dtk_pnt &outMin, Dtk_pnt &outMax, Dtk_bool inMorePrecise=0)
	Compute Bounding Box. More...
virtual Dtk_pnt	ComputeEndPoint () const =0
	Return Last point. More...
Dtk_Double64	ComputeLength ()
	return curve Length More...
Dtk_NurbsCurvePtr	ComputeOffset (Dtk_Double64 inOffset, Dtk_dir inOffsetDirection)
	Compute offset curve and convert it to nurbs. More...
virtual Dtk_ErrorStatus	ComputeOrientedBoundingBox (Dtk_pnt &outMin, Dtk_pnt &outMax, const Dtk_transfo &inLocal)
	Compute Oriented Bounding Box. More...
virtual Dtk_ErrorStatus	ComputeParameter (const Dtk_pnt &inPoint, Dtk_Double64 &outU) const =0
	Compute U parameter from point. More...
virtual Dtk_pnt	ComputeStartPoint () const =0
	Return First point. More...
virtual Dtk_ErrorStatus	ComputeUDir (const Dtk_Double64 &inU, Dtk_dir &outDir) const
	Compute dir on U parameter. More...
virtual Dtk_ErrorStatus	ComputeUPoint (const Dtk_Double64 &inU, Dtk_pnt &outPoint) const =0
	Compute point on U parameter. More...
virtual Dtk_ErrorStatus	ComputeUPointDir (const Dtk_Double64 &inU, Dtk_pnt &outPoint, Dtk_dir &outDir) const
	Compute point and dir on U parameter. More...
void	DeleteCorrespondingNurbs ()
int	DtkDynamicType (const int &inId)
	downcasting More...
virtual void	dump (FILE *file=stdout)
Dtk_InfoPtr	get_info () const
virtual enum type_detk	get_type_detk () const =0
Dtk_Size_t	GetDimension () const
	Return 2 or 3. More...
virtual Dtk_ErrorStatus	GetDomain (Dtk_Double64 &outUmin, Dtk_Double64 &outUmax) const =0
	Get Curve Parametrisation. More...
const Dtk_ID &	GetID () const
	Get Internal UniqueID. More...
virtual Dtk_Size_t	GetSize () const
Dtk_pnt	GetTrimEndPoint () const
	Return last trim point. More...
Dtk_pnt	GetTrimStartPoint () const
	Return first trim point. More...
Dtk_Double64	GetTrimUMax () const
	Get end Trim parameter. More...
Dtk_Double64	GetTrimUMin () const
	Get start Trim parameter. More...
Dtk_InfoPtr &	info ()
virtual Dtk_ErrorStatus	InverseTrim ()
virtual Dtk_bool	IsClosed (Dtk_Double64 inTol=DTK_TOLERANCE) const
	return True if Curve is closed More...
Dtk_bool	IsLine ()
	return True if Curve is a line More...
virtual Dtk_bool	IsPeriodic () const
	return True if Curve is periodic More...
Dtk_bool	IsTrimmed () const
	Return DTK_TRUE if Curve Is trimmed by point or parameter value. More...
virtual void	Normalize ()
	Normalize Curve. More...
virtual void	PrepareTransfo ()
virtual void	Reverse ()=0
	Reverse Curve. More...
void	SetDimension (const Dtk_Size_t &inDimension)
	Set curve dimension (2 or 3) More...
virtual Dtk_ErrorStatus	SetTrimmingParameters (const Dtk_Double64 &inUmin, const Dtk_Double64 &inUmax)
	Set Trim parameter for curve. More...
void	SetTrimPoints (const Dtk_pnt &inStartPoint, const Dtk_pnt &inEndPoint)
	Set Trim points for curve. More...
virtual Dtk_NurbsCurvePtr	ToNurbs () const =0
	Convert Curve to nurbs. More...
virtual Dtk_PolylinePtr	ToPolyline (const int &inMinPoint, const Dtk_Double64 &inTolerance) const =0
	Convert Curve to polyline. More...
Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Transform Curve. More...
virtual	~Dtk_Curve ()

Static Public Member Functions
static Dtk_Curve *	DtkDynamicCast (Dtk_Object *inObject)

Protected Types
enum	{ _typeID = DTK_TYPE_OBJECT }
enum	{ _typeID = DTK_TYPE_CURVE }

Protected Member Functions
void	_Copy (const Dtk_Curve &s)
void	_copy (const Dtk_Entity &s)
void	_copy (const Dtk_Object &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()=0
	Dtk_Curve ()
	Dtk_Curve (const Dtk_Curve &s)

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_SmartPtr< Dtk_Curve >
void	PDtk_StoreDataCurve (void *, Dtk_CurvePtr &)

Detailed Description

Dtk_Curve is a geometrical entity representing a curve. It is an abstract class that cannot be instancied.
.

Warning

Please use the Dtk_CurvePtr class to handle it... It has several utility methods :

• GetDomain allow you to get the whole definition domain for the curve.

  Dtk_ErrorStatus GetDomain(Dtk_Double64& outUmin,Dtk_Double64& outUmax) const;

• SetTrimmingParameters/GetTrimUMin/GetTrimUMax allow you to specify/get the used domain for the curve.

  Dtk_ErrorStatus SetTrimmingParameters(const Dtk_Double64& inUmin,const Dtk_Double64& inUmax);
  Dtk_Double64 GetTrimUMin() const;
  Dtk_Double64 GetTrimUMax() const;

• ToNurbs convert the curve into nurbs curve.
• ToPolyline convert the curve into polyline .

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_OBJECT };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

{ _typeID = DTK_TYPE_CURVE };

Constructor & Destructor Documentation

Dtk_Curve() [1/2]

Dtk_Curve::Dtk_Curve ( )

protected

Dtk_Curve() [2/2]

Dtk_Curve::Dtk_Curve ( const Dtk_Curve &  s )

protected

~Dtk_Curve()

virtual Dtk_Curve::~Dtk_Curve ( )

virtual

Member Function Documentation

_ComputeAnyDerivative()

virtual Dtk_ErrorStatus Dtk_Curve::_ComputeAnyDerivative ( Dtk_Double64  inUvalue, int  inUdiff, Dtk_dir &  outdir, int  exttype  ) const

virtual

Reimplemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Polyline, Dtk_Ellipse, Dtk_Line, and Dtk_NurbsCurve.

_Copy()

void Dtk_Curve::_Copy ( const Dtk_Curve &  s )

protected

_copy() [1/2]

void Dtk_Entity::_copy ( const Dtk_Entity &  s )

protectedinherited

_copy() [2/2]

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_init()

void Dtk_Entity::_init ( )

protectedinherited

_reset()

void Dtk_Entity::_reset ( )

protectedinherited

_Store()

virtual Dtk_ErrorStatus Dtk_Curve::_Store ( void *  )

virtual

Reimplemented from Dtk_Entity.

Reimplemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

Clone()

virtual Dtk_Object* Dtk_Curve::Clone ( )

protectedpure virtual

Implements Dtk_Entity.

Implemented in Dtk_Conic, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ComputeBoundingBox()

virtual Dtk_ErrorStatus Dtk_Curve::ComputeBoundingBox ( Dtk_pnt &  outMin, Dtk_pnt &  outMax, Dtk_bool  inMorePrecise = 0  )

virtual

Compute Bounding Box.

Reimplemented in Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ComputeEndPoint()

virtual Dtk_pnt Dtk_Curve::ComputeEndPoint ( ) const

pure virtual

Return Last point.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ComputeLength()

Dtk_Double64 Dtk_Curve::ComputeLength

(

)

return curve Length

ComputeOffset()

Dtk_NurbsCurvePtr Dtk_Curve::ComputeOffset	(	Dtk_Double64	inOffset,
		Dtk_dir	inOffsetDirection
	)

Compute offset curve and convert it to nurbs.

ComputeOrientedBoundingBox()

virtual Dtk_ErrorStatus Dtk_Curve::ComputeOrientedBoundingBox ( Dtk_pnt &  outMin, Dtk_pnt &  outMax, const Dtk_transfo &  inLocal  )

virtual

Compute Oriented Bounding Box.

ComputeParameter()

virtual Dtk_ErrorStatus Dtk_Curve::ComputeParameter ( const Dtk_pnt &  inPoint, Dtk_Double64 &  outU  ) const

pure virtual

Compute U parameter from point.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ComputeStartPoint()

virtual Dtk_pnt Dtk_Curve::ComputeStartPoint ( ) const

pure virtual

Return First point.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ComputeUDir()

virtual Dtk_ErrorStatus Dtk_Curve::ComputeUDir ( const Dtk_Double64 &  inU, Dtk_dir &  outDir  ) const

virtual

Compute dir on U parameter.

Reimplemented in Dtk_Ellipse, Dtk_Line, and Dtk_NurbsCurve.

ComputeUPoint()

virtual Dtk_ErrorStatus Dtk_Curve::ComputeUPoint ( const Dtk_Double64 &  inU, Dtk_pnt &  outPoint  ) const

pure virtual

Compute point on U parameter.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ComputeUPointDir()

virtual Dtk_ErrorStatus Dtk_Curve::ComputeUPointDir ( const Dtk_Double64 &  inU, Dtk_pnt &  outPoint, Dtk_dir &  outDir  ) const

virtual

Compute point and dir on U parameter.

Reimplemented in Dtk_NurbsCurve.

DeleteCorrespondingNurbs()

void Dtk_Curve::DeleteCorrespondingNurbs

(

)

DtkDynamicCast()

static Dtk_Curve* Dtk_Curve::DtkDynamicCast ( Dtk_Object *  inObject )

static

DtkDynamicType()

int Dtk_Curve::DtkDynamicType ( const int &  inId )

virtual

downcasting

Reimplemented from Dtk_Entity.

Reimplemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const

inherited

get_type_detk()

virtual enum type_detk Dtk_Entity::get_type_detk ( ) const

pure virtualinherited

Implemented in Dtk_Annotation, Dtk_2dEntity, Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_SelectionSet, Dtk_mesh, Dtk_Kinematic, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, Dtk_ModelDisplay, Dtk_AxisSystem, Dtk_Region, Dtk_CompositeEntity, Dtk_Hatching, Dtk_Camera, Dtk_Fdt, Dtk_View, Dtk_Drawing, Dtk_Symbol, Dtk_GeometricalTolerance, Dtk_Dimension, Dtk_Grid, Dtk_Table, Dtk_DatumTarget, Dtk_Welding, Dtk_Roughness, and Dtk_feat.

GetDimension()

Dtk_Size_t Dtk_Curve::GetDimension

(

)

const

Return 2 or 3.

GetDomain()

virtual Dtk_ErrorStatus Dtk_Curve::GetDomain ( Dtk_Double64 &  outUmin, Dtk_Double64 &  outUmax  ) const

pure virtual

Get Curve Parametrisation.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const

inherited

Get Internal UniqueID.

Returns

InternalID

GetSize()

virtual Dtk_Size_t Dtk_Curve::GetSize ( ) const

virtual

Reimplemented from Dtk_Entity.

Reimplemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

GetTrimEndPoint()

Dtk_pnt Dtk_Curve::GetTrimEndPoint

(

)

const

Return last trim point.

GetTrimStartPoint()

Dtk_pnt Dtk_Curve::GetTrimStartPoint

(

)

const

Return first trim point.

GetTrimUMax()

Dtk_Double64 Dtk_Curve::GetTrimUMax

(

)

const

Get end Trim parameter.

GetTrimUMin()

Dtk_Double64 Dtk_Curve::GetTrimUMin

(

)

const

Get start Trim parameter.

info()

Dtk_InfoPtr& Dtk_Entity::info ( )

inherited

InverseTrim()

virtual Dtk_ErrorStatus Dtk_Curve::InverseTrim ( )

virtual

IsClosed()

virtual Dtk_bool Dtk_Curve::IsClosed ( Dtk_Double64  inTol = DTK_TOLERANCE ) const

virtual

return True if Curve is closed

Reimplemented in Dtk_NurbsCurve.

IsLine()

Dtk_bool Dtk_Curve::IsLine

(

)

return True if Curve is a line

IsPeriodic()

virtual Dtk_bool Dtk_Curve::IsPeriodic ( ) const

virtual

return True if Curve is periodic

Reimplemented in Dtk_NurbsCurve.

IsTrimmed()

Dtk_bool Dtk_Curve::IsTrimmed

(

)

const

Return DTK_TRUE if Curve Is trimmed by point or parameter value.

Normalize()

virtual void Dtk_Curve::Normalize ( )

virtual

Normalize Curve.

Reimplemented in Dtk_Line.

PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )

virtualinherited

Reimplemented in Dtk_OffsetSurface.

Reverse()

virtual void Dtk_Curve::Reverse ( )

pure virtual

Reverse Curve.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

SetDimension()

void Dtk_Curve::SetDimension

(

const Dtk_Size_t &

inDimension

)

Set curve dimension (2 or 3)

SetTrimmingParameters()

virtual Dtk_ErrorStatus Dtk_Curve::SetTrimmingParameters ( const Dtk_Double64 &  inUmin, const Dtk_Double64 &  inUmax  )

virtual

Set Trim parameter for curve.

SetTrimPoints()

void Dtk_Curve::SetTrimPoints	(	const Dtk_pnt &	inStartPoint,
		const Dtk_pnt &	inEndPoint
	)

Set Trim points for curve.

ToNurbs()

virtual Dtk_NurbsCurvePtr Dtk_Curve::ToNurbs ( ) const

pure virtual

Convert Curve to nurbs.

Implemented in Dtk_Hyperbola, Dtk_Conic, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

ToPolyline()

virtual Dtk_PolylinePtr Dtk_Curve::ToPolyline ( const int &  inMinPoint, const Dtk_Double64 &  inTolerance  ) const

pure virtual

Convert Curve to polyline.

Parameters

[in]	inMinPoint	: Minimal number of result points
[in]	inTolerance	: max tolerance for 3 points alignement.

Implemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

Transform()

Dtk_ErrorStatus Dtk_Curve::Transform ( const Dtk_transfo &  inTransfo )

virtual

Transform Curve.

Implements Dtk_Entity.

Reimplemented in Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, and Dtk_NurbsCurve.

Friends And Related Function Documentation

Dtk_SmartPtr< Dtk_Curve >

friend class Dtk_SmartPtr< Dtk_Curve >

friend

PDtk_StoreDataCurve

void PDtk_StoreDataCurve ( void *  , Dtk_CurvePtr &    )

friend

Field Documentation

_Private

Dtk_Handle* Dtk_Curve::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited
