Dtk_ReferenceFrame Class Reference

This is the Reference Frame Class.
It is part of the Dtk_ToleranceSpecification entity.

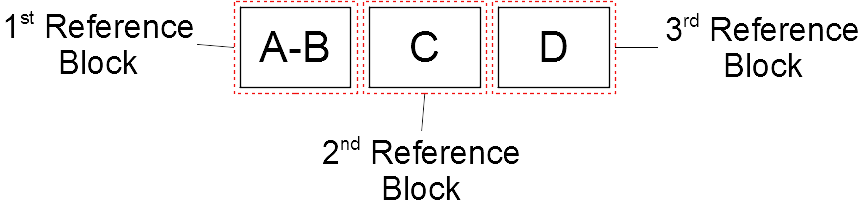

It's basically composed by one - or more - Dtk_ReferenceBlock. More...

Inheritance diagram for Dtk_ReferenceFrame:

Public Member Functions
Dtk_ErrorStatus	AddReferenceBlock (const Dtk_ReferenceBlockPtr &inReferenceBlock)
	Add a reference block to the Dtk_ReferenceFrame. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
virtual int	DtkDynamicType (const int &inId)=0
virtual void	dump (FILE *file=stdout)
Dtk_ReferenceBlockPtr &	FirstReference ()
	Retrieves the first reference block - get/set -. More...
const Dtk_ReferenceBlockPtr &	FirstReference () const
	Retrieves the first reference block - read only -. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES], const Dtk_Double64 &inOffSet=0.0) const
	Processes all the Dtk_ReferenceFrame anchor points. More...
Dtk_Size_t	GetNumReferences () const
	Retrieves the number of reference blocks - read only -. More...
Dtk_ErrorStatus	GetOuterBoundingBox (Dtk_Oriented2dBBox &outOuterBBox) const
virtual Dtk_Size_t	GetSize () const
Dtk_ReferenceFrame &	operator= (const Dtk_ReferenceFrame &inToBeAssigned)
	Assignment Operator. More...
Dtk_ReferenceFrame &	operator= (Dtk_ReferenceFrame &&inToBeMoved) DTK_NOEXCEPT
	\MoveOp{inToBeMoved} More...
Dtk_ReferenceBlockPtr &	Reference (const Dtk_Size_t &inReferencePos)
	Retrieves the ith reference block - get/set -. More...
const Dtk_ReferenceBlockPtr &	Reference (const Dtk_Size_t &inReferencePos) const
	Retrieves the ith reference blocks - read only -. More...
Dtk_ReferenceBlockPtr &	SecondReference ()
	Retrieves the second reference block - get/set -. More...
const Dtk_ReferenceBlockPtr &	SecondReference () const
	Retrieves the second reference block - read only -. More...
Dtk_ErrorStatus	SetAnchorPoint (const Dtk_pnt &inNewLocation, const Dtk_anchor_type &inLocationAnchorType, const Dtk_Double64 &inOffSet=0.0)
	Sets the Dtk_ReferenceFrame anchor point. More...
Dtk_ReferenceBlockPtr &	ThirdReference ()
	Retrieves the third reference block - get/set -. More...
const Dtk_ReferenceBlockPtr &	ThirdReference () const
	Retrieves the third reference block - read only -. More...
void	Translate (const Dtk_dir &inTranslationDir)

Static Public Member Functions
static Dtk_ReferenceFramePtr	Create ()
	Base constructor. More...
static Dtk_ReferenceFramePtr	Create (const Dtk_ReferenceBlockPtr &inFirstReferenceBlock)
	Full featured constructor with one first reference block. More...
static Dtk_ReferenceFramePtr	Create (const Dtk_ReferenceFrame &inToBeCopied)
	Copy constructor. More...
static Dtk_ReferenceFramePtr	Create (Dtk_ReferenceFrame &&inToBeMoved)
	\MoveConstructor{inToBeMoved} More...
static Dtk_ReferenceFrame *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...

Protected Types
enum	{ _typeID = DTK_TYPE_OBJECT }
enum	{ _typeID = DTK_TYPE_REFERENCE_FRAME }

Protected Member Functions
void	_copy (const Dtk_Object &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()
	Dtk_ReferenceFrame ()
	Dtk_ReferenceFrame (const Dtk_ReferenceBlockPtr &ref)
	Dtk_ReferenceFrame (const Dtk_ReferenceFrame &s)
	Dtk_ReferenceFrame (Dtk_ReferenceFrame &&s) DTK_NOEXCEPT
	~Dtk_ReferenceFrame ()
	Destructor. More...

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_SmartPtr< Dtk_ReferenceFrame >

Detailed Description

This is the Reference Frame Class.
It is part of the Dtk_ToleranceSpecification entity.
It's basically composed by one - or more - Dtk_ReferenceBlock.

See also

Please use the Dtk_ReferenceFramePtr class to handle it...

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_OBJECT };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_REFERENCE_FRAME
     };

Constructor & Destructor Documentation

Dtk_ReferenceFrame() [1/4]

Dtk_ReferenceFrame::Dtk_ReferenceFrame ( )

protected

See also

Create()

Dtk_ReferenceFrame() [2/4]

Dtk_ReferenceFrame::Dtk_ReferenceFrame ( const Dtk_ReferenceFrame &  s )

protected

See also

Create(const Dtk_ReferenceFrame &)

Dtk_ReferenceFrame() [3/4]

Dtk_ReferenceFrame::Dtk_ReferenceFrame ( Dtk_ReferenceFrame &&  s )

protected

See also

Create( Dtk_ReferenceFrame &&)

Dtk_ReferenceFrame() [4/4]

Dtk_ReferenceFrame::Dtk_ReferenceFrame ( const Dtk_ReferenceBlockPtr &  ref )

protected

See also

Create(const Dtk_ReferenceBlockPtr &)

~Dtk_ReferenceFrame()

Dtk_ReferenceFrame::~Dtk_ReferenceFrame ( )

protected

Destructor.

Member Function Documentation

_copy()

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_init()

void Dtk_Object::_init ( )

protectedinherited

_reset()

void Dtk_Object::_reset ( )

protectedinherited

AddReferenceBlock()

Dtk_ErrorStatus Dtk_ReferenceFrame::AddReferenceBlock

(

const Dtk_ReferenceBlockPtr &

inReferenceBlock

)

Add a reference block to the Dtk_ReferenceFrame.

Parameters

inReferenceBlock

The reference block to add

Returns

DtkNoError if OK.

Clone()

virtual Dtk_Object* Dtk_ReferenceFrame::Clone ( )

protectedvirtual

{ return new Dtk_ReferenceFrame(*this); }

Create() [1/4]

static Dtk_ReferenceFramePtr Dtk_ReferenceFrame::Create ( )

static

Base constructor.

Create() [2/4]

static Dtk_ReferenceFramePtr Dtk_ReferenceFrame::Create ( const Dtk_ReferenceBlockPtr &  inFirstReferenceBlock )

static

Full featured constructor with one first reference block.

Parameters

inFirstReferenceBlock

The first reference block

Returns

the created Dtk_ReferenceFramePtr

Create() [3/4]

static Dtk_ReferenceFramePtr Dtk_ReferenceFrame::Create ( const Dtk_ReferenceFrame &  inToBeCopied )

static

Copy constructor.

Parameters

inToBeCopied

Object to copy.

Create() [4/4]

static Dtk_ReferenceFramePtr Dtk_ReferenceFrame::Create ( Dtk_ReferenceFrame &&  inToBeMoved )

static

\MoveConstructor{inToBeMoved}

DtkDynamicCast()

static Dtk_ReferenceFrame* Dtk_ReferenceFrame::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_ReferenceFrame::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

virtual int Dtk_Object::DtkDynamicType ( const int &  inId )

pure virtualinherited

Implemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshPolyline, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, Dtk_AxisSystem, Dtk_Preview, Dtk_Entity, Dtk_picture, Dtk_OverrideSet, Dtk_OverrideInfo, Dtk_MainDoc, Dtk_Component, Dtk_Node, Dtk_DocElement, Dtk_Log, and Dtk_Properties.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

FirstReference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::FirstReference

(

)

Retrieves the first reference block - get/set -.

Returns

The first reference block.

See also

FirstReference() const

FirstReference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::FirstReference

(

)

const

Retrieves the first reference block - read only -.

Returns

The first reference block.

See also

FirstReference()

GetAnchorPoints()

Dtk_ErrorStatus Dtk_ReferenceFrame::GetAnchorPoints	(	Dtk_pnt(&)	outTabPnts[DTK_NB_ANCHOR_TYPES],
		const Dtk_Double64 &	inOffSet = 0.0
	)		const

Processes all the Dtk_ReferenceFrame anchor points.

Parameters

outTabPnts	The resulting anchor point array.
inOffSet	- internal use only -.

Returns

DtkNoError if OK

GetNumReferences()

Dtk_Size_t Dtk_ReferenceFrame::GetNumReferences

(

)

const

Retrieves the number of reference blocks - read only -.

Returns

The number of reference blocks.

GetOuterBoundingBox()

Dtk_ErrorStatus Dtk_ReferenceFrame::GetOuterBoundingBox

(

Dtk_Oriented2dBBox &

outOuterBBox

)

const

GetSize()

virtual Dtk_Size_t Dtk_Object::GetSize ( ) const

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh_face, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Entity, and Dtk_Info.

operator=() [1/2]

Dtk_ReferenceFrame& Dtk_ReferenceFrame::operator=

(

const Dtk_ReferenceFrame &

inToBeAssigned

)

Assignment Operator.

Parameters

inToBeAssigned

Object to copy.

operator=() [2/2]

Dtk_ReferenceFrame& Dtk_ReferenceFrame::operator=

(

Dtk_ReferenceFrame &&

inToBeMoved

)

\MoveOp{inToBeMoved}

Reference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::Reference

(

const Dtk_Size_t &

inReferencePos

)

Retrieves the ith reference block - get/set -.

Parameters

inReferencePos

The reference block index

Returns

The inReferencePos'th reference block.

Exceptions

Dtk_OutOfRangeType

Dtk_Exception is raised if the inReferencePos parameter is invalid

Reference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::Reference

(

const Dtk_Size_t &

inReferencePos

)

const

Retrieves the ith reference blocks - read only -.

Parameters

inReferencePos

The reference block index

Returns

The inReferencePos'th reference block.

Exceptions

Dtk_OutOfRangeType

Dtk_Exception is raised if the inReferencePos parameter is invalid

SecondReference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::SecondReference

(

)

Retrieves the second reference block - get/set -.

Returns

The second reference block.

See also

FirstReference() const

SecondReference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::SecondReference

(

)

const

Retrieves the second reference block - read only -.

Returns

The second reference block.

See also

FirstReference()

SetAnchorPoint()

Dtk_ErrorStatus Dtk_ReferenceFrame::SetAnchorPoint	(	const Dtk_pnt &	inNewLocation,
		const Dtk_anchor_type &	inLocationAnchorType,
		const Dtk_Double64 &	inOffSet = 0.0
	)

Sets the Dtk_ReferenceFrame anchor point.

Parameters

inNewLocation	The new location point.
inLocationAnchorType	The anchor type related to the new location.
inOffSet	For internal use only.

Returns

DtkNoError if OK

ThirdReference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::ThirdReference

(

)

Retrieves the third reference block - get/set -.

Returns

The third reference block.

See also

FirstReference() const

ThirdReference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ReferenceFrame::ThirdReference

(

)

const

Retrieves the third reference block - read only -.

Returns

The third reference block.

See also

FirstReference()

Translate()

void Dtk_ReferenceFrame::Translate

(

const Dtk_dir &

inTranslationDir

)

Friends And Related Function Documentation

Dtk_SmartPtr< Dtk_ReferenceFrame >

friend class Dtk_SmartPtr< Dtk_ReferenceFrame >

friend

Field Documentation

_Private

Dtk_Handle* Dtk_ReferenceFrame::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited
