Dtk_ToleranceSpecification Class Reference

This is the geometrical tolerance specification.
It is part of the Dtk_ToleranceSpecificationContainer.
It may contain a Dtk_ReferenceFrame and/or Dtk_FCFFeatureIndicator. More...

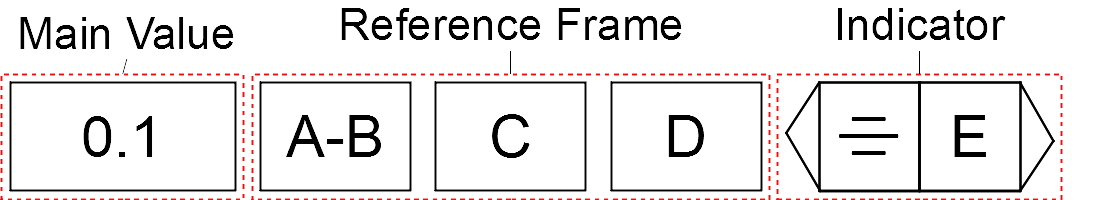

Inheritance diagram for Dtk_ToleranceSpecification:

Public Member Functions
void	AddIndicator (const Dtk_FCFFeatureIndicatorPtr &inIndicator)
	Adds a feature indicator to the Dtk_ToleranceSpecification. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
virtual int	DtkDynamicType (const int &inId)=0
virtual void	dump (FILE *file=stdout)
Dtk_ErrorStatus	Explode (Dtk_CompositeText &outCompositeText, Dtk_tab< Dtk_CurvePtr > &outGeoms)
	Explodes the Dtk_ToleranceSpecification into Dtk_CompositeText and geometrical elements - used for Dtk_Symbol conversion only -. More...
Dtk_ReferenceBlockPtr &	FirstReference ()
	Retrieves the first reference block - get/set -. This is a shortcut without using Dtk_ReferenceFrame object. More...
const Dtk_ReferenceBlockPtr &	FirstReference () const
	Retrieves the first reference block - read only -. This is a shortcut without using Dtk_ReferenceFrame object. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES], const Dtk_Int32 &ignoreadd=0)
	Processes all the Dtk_ToleranceSpecification anchor points. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES], const Dtk_Int32 &ignoreadd=0) const
	Processes all the Dtk_ToleranceSpecification anchor points. More...
Dtk_FCFFeatureIndicatorPtr &	GetIndicator (const Dtk_Size_t inIndicatorIndex)
	Retrieves the ith indicator - get/set -. . More...
const Dtk_FCFFeatureIndicatorPtr &	GetIndicator (const Dtk_Size_t inIndicatorIndex) const
	Retrieves the ith indicator - get only -. . More...
Dtk_ErrorStatus	GetInnerBoundingBox (Dtk_Oriented2dBBox &outInnerBBox) const
const Dtk_CompositeText &	GetMainValue () const
	Retrieves the Dtk_ToleranceSpecification text including all modifiers as Dtk_CompositeText - material modifier, etc... - - read only -. More...
DTK_FDT_MODIFIER	GetMaterialModifier () const
	Retrieves the Dtk_ToleranceSpecification material modifier - read only -. More...
Dtk_Size_t	GetNumIndicators () const
	Retrieves indicator number - read only -. . More...
Dtk_Size_t	GetNumReferences () const
	Retrieves the reference blocks number - read only -. This is a shortcut without using Dtk_ReferenceFrame object. More...
Dtk_ErrorStatus	GetOuterBoundingBox (Dtk_Oriented2dBBox &outOuterBBox, const Dtk_bool inIncludeReferenceFrame=DTK_TRUE, const Dtk_bool InIncludeIndicators=DTK_TRUE) const
	Retrieve the Dtk_ToleranceSpecification Outer Bounding Box. More...
Dtk_ErrorStatus	GetOuterBoundingBoxWithOutRefFrame (Dtk_Oriented2dBBox &outOuterBBox) const
virtual Dtk_Size_t	GetSize () const
Dtk_dir	GetXAxis () const
	Retrieves the X Axis for the Dtk_ToleranceSpecification - read only -. More...
Dtk_dir	GetYAxis () const
	Retrieves the Y Axis for the Dtk_ToleranceSpecification - read only -. More...
Dtk_bool	HasFreeStateModifier () const
	Tells if the Dtk_ToleranceSpecification has a FreeState Modifier or not - read only -. More...
Dtk_ToleranceSpecification &	operator= (const Dtk_ToleranceSpecification &inToBeAssigned)
	Assignment Operator. More...
Dtk_ToleranceSpecification &	operator= (Dtk_ToleranceSpecification &&inToBeMoved) DTK_NOEXCEPT
	\MoveOp{inToBeMoved} More...
Dtk_Double64	ProcessHeight () const
	Internal use only. More...
Dtk_Double64	ProcessWidth () const
	Internal use only. More...
Dtk_ReferenceBlockPtr &	Reference (const Dtk_Size_t &inReferencePos)
	Retrieves the ith reference block - get/set -. This is a shortcut without using Dtk_ReferenceFrame object. More...
const Dtk_ReferenceBlockPtr &	Reference (const Dtk_Size_t &inReferencePos) const
	Retrieves the ith reference block - get/set -. This is a shortcut without using Dtk_ReferenceFrame object. More...
Dtk_ReferenceFramePtr &	ReferenceFrame ()
	Retrieves the reference frame- get/set -. More...
const Dtk_ReferenceFramePtr &	ReferenceFrame () const
	Retrieves the reference frame- read only -. More...
Dtk_ReferenceBlockPtr &	SecondReference ()
	Retrieves the second reference block - get/set -. This is a shortcut without using Dtk_ReferenceFrame object. More...
const Dtk_ReferenceBlockPtr &	SecondReference () const
	Retrieves the second reference block - read only -. This is a shortcut without using Dtk_ReferenceFrame object. More...
Dtk_ErrorStatus	SetAnchorPoint (const Dtk_pnt &inNewLocation, const Dtk_anchor_type &inLocationAnchorType)
	Sets the Dtk_ToleranceSpecification anchor point. More...
	SetAsDeprecated ("2020.2", "Use Explode(Dtk_CompositeText &outCompositeText,Dtk_tab<Dtk_CurvePtr> &outGeoms) instead") Dtk_ErrorStatus Explode(Dtk_CompositeText &outCompositeText
	OBSOLETE. More...
	SetAsDeprecated ("2021.1", "Use SetMainValue mehod to alter MainValue instead.") Dtk_ErrorStatus SetInnerBoundingBox(const Dtk_Oriented2dBBox &inInnerBBox)
	SetAsDeprecated ("2021.1", "Use SetMainValue mehod to alter MainValue instead.") Dtk_ErrorStatus SetOuterBoundingBox(const Dtk_Oriented2dBBox &inOuterBBox)
	SetAsDeprecated ("2021.1", "Use SetMainValue mehod to alter MainValue instead.") Dtk_ErrorStatus SetOuterBoundingBoxWithOutRefFrame(const Dtk_Oriented2dBBox &inOuterBBox)
	Set the outer Bounding Box. More...
void	SetMainValue (Dtk_CompositeText inNewMainValue)
	Sets the Dtk_ToleranceSpecification text including all modifiers - material modifier, etc... -. More...
Dtk_ErrorStatus	SetXAxis (const Dtk_dir &dir)
	Sets the X Axis for the Dtk_ToleranceSpecification and included Dtk_Texts. More...
Dtk_ErrorStatus	SetYAxis (const Dtk_dir &dir)
	Sets the Y Axis for the Dtk_ToleranceSpecification and included Dtk_Texts. More...
Dtk_ReferenceBlockPtr &	ThirdReference ()
	Retrieves the third reference block - get/set -. This is a shortcut without using Dtk_ReferenceFrame object. More...
const Dtk_ReferenceBlockPtr &	ThirdReference () const
	Retrieves the third reference block - read only -. This is a shortcut without using Dtk_ReferenceFrame object. More...
Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Applies a transformation matrix to the entity. //! More...
void	Translate (const Dtk_dir &inTranslationDir)
	Translates the text giving a translation vector. More...

Static Public Member Functions
static Dtk_ToleranceSpecificationPtr	Create ()
	Base constructor. More...
static Dtk_ToleranceSpecificationPtr	Create (const Dtk_ToleranceSpecification &inToBeCopied)
	Copy constructor. More...
static Dtk_ToleranceSpecificationPtr	Create (Dtk_Text inFullTextWithMaterialCondition, const Dtk_ReferenceFramePtr &inReferenceFrame=Dtk_ReferenceFrame::Create())
	Full featured constructor. More...
static Dtk_ToleranceSpecificationPtr	Create (Dtk_ToleranceSpecification &&inToBeMoved)
	\MoveConstructor{inToBeMoved} More...
static Dtk_ToleranceSpecification *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...

Data Fields
Dtk_tab< Geometric_set_select_entity * > &	outGeoms

Protected Types
enum	{ _typeID = DTK_TYPE_OBJECT }
enum	{ _typeID = DTK_TYPE_TOL_SPEC }

Protected Member Functions
void	_copy (const Dtk_Object &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()
	Dtk_ToleranceSpecification ()
	Dtk_ToleranceSpecification (const Dtk_ToleranceSpecification &s)
	Copy Constructor. More...
	Dtk_ToleranceSpecification (Dtk_Text inFullTextWithMaterialCondition, const Dtk_ReferenceFramePtr &inReferenceFrame=Dtk_ReferenceFrame::Create())
	Dtk_ToleranceSpecification (Dtk_ToleranceSpecification &&s) DTK_NOEXCEPT
	Move Constructor. More...
	~Dtk_ToleranceSpecification ()
	Destructor. More...

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_SmartPtr< Dtk_ToleranceSpecification >

Detailed Description

This is the geometrical tolerance specification.
It is part of the Dtk_ToleranceSpecificationContainer.
It may contain a Dtk_ReferenceFrame and/or Dtk_FCFFeatureIndicator.

See also

Please use the Dtk_ToleranceSpecificationPtr class to handle it...

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_OBJECT };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_TOL_SPEC
     };

Constructor & Destructor Documentation

Dtk_ToleranceSpecification() [1/4]

Dtk_ToleranceSpecification::Dtk_ToleranceSpecification ( )

protected

See also

Create()

Dtk_ToleranceSpecification() [2/4]

Dtk_ToleranceSpecification::Dtk_ToleranceSpecification ( Dtk_Text  inFullTextWithMaterialCondition, const Dtk_ReferenceFramePtr &  inReferenceFrame = Dtk_ReferenceFrame::Create()  )

protected

See also

Create(const Dtk_Text &, const Dtk_ReferenceFramePtr &)

Dtk_ToleranceSpecification() [3/4]

Dtk_ToleranceSpecification::Dtk_ToleranceSpecification ( const Dtk_ToleranceSpecification &  s )

protected

Copy Constructor.

Dtk_ToleranceSpecification() [4/4]

Dtk_ToleranceSpecification::Dtk_ToleranceSpecification ( Dtk_ToleranceSpecification &&  s )

protected

Move Constructor.

~Dtk_ToleranceSpecification()

Dtk_ToleranceSpecification::~Dtk_ToleranceSpecification ( )

protected

Destructor.

Member Function Documentation

_copy()

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_init()

void Dtk_Object::_init ( )

protectedinherited

_reset()

void Dtk_Object::_reset ( )

protectedinherited

AddIndicator()

void Dtk_ToleranceSpecification::AddIndicator

(

const Dtk_FCFFeatureIndicatorPtr &

inIndicator

)

Adds a feature indicator to the Dtk_ToleranceSpecification.

Parameters

inIndicator

the feature indicator to be added.

Clone()

virtual Dtk_Object* Dtk_ToleranceSpecification::Clone ( )

protectedvirtual

{ return new Dtk_ToleranceSpecification(*this); }

Create() [1/4]

static Dtk_ToleranceSpecificationPtr Dtk_ToleranceSpecification::Create ( )

static

Base constructor.

Create() [2/4]

static Dtk_ToleranceSpecificationPtr Dtk_ToleranceSpecification::Create ( const Dtk_ToleranceSpecification &  inToBeCopied )

static

Copy constructor.

Parameters

inToBeCopied

Object to copy.

Create() [3/4]

static Dtk_ToleranceSpecificationPtr Dtk_ToleranceSpecification::Create ( Dtk_Text  inFullTextWithMaterialCondition, const Dtk_ReferenceFramePtr &  inReferenceFrame = Dtk_ReferenceFrame::Create()  )

static

Full featured constructor.

Parameters

inFullTextWithMaterialCondition	A full text string containing the main value AND the optional material modifier.
inReferenceFrame	The optional reference frame.

Returns

the created Dtk_ReferenceFramePtr

Create() [4/4]

static Dtk_ToleranceSpecificationPtr Dtk_ToleranceSpecification::Create ( Dtk_ToleranceSpecification &&  inToBeMoved )

static

\MoveConstructor{inToBeMoved}

DtkDynamicCast()

static Dtk_ToleranceSpecification* Dtk_ToleranceSpecification::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_ToleranceSpecification::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

virtual int Dtk_Object::DtkDynamicType ( const int &  inId )

pure virtualinherited

Implemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshPolyline, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, Dtk_AxisSystem, Dtk_Preview, Dtk_Entity, Dtk_picture, Dtk_OverrideSet, Dtk_OverrideInfo, Dtk_MainDoc, Dtk_Component, Dtk_Node, Dtk_DocElement, Dtk_Log, and Dtk_Properties.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

Explode()

Dtk_ErrorStatus Dtk_ToleranceSpecification::Explode	(	Dtk_CompositeText &	outCompositeText,
		Dtk_tab< Dtk_CurvePtr > &	outGeoms
	)

Explodes the Dtk_ToleranceSpecification into Dtk_CompositeText and geometrical elements - used for Dtk_Symbol conversion only -.

Parameters

outCompositeText	Resulting composite text
outGeoms	Resulting geometrical elements

Returns

DtkNoError if OK

FirstReference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::FirstReference

(

)

Retrieves the first reference block - get/set -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The first reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

FirstReference() const

Dtk_ReferenceFrame::FirstReference()

FirstReference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::FirstReference

(

)

const

Retrieves the first reference block - read only -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The first reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

FirstReference()

Dtk_ReferenceFrame::FirstReference() const

GetAnchorPoints() [1/2]

Dtk_ErrorStatus Dtk_ToleranceSpecification::GetAnchorPoints	(	Dtk_pnt(&)	outTabPnts[DTK_NB_ANCHOR_TYPES],
		const Dtk_Int32 &	ignoreadd = 0
	)

Processes all the Dtk_ToleranceSpecification anchor points.

Parameters

outTabPnts	The resulting anchor point array.
ignoreadd	- internal use only -.

Returns

DtkNoError if OK

GetAnchorPoints() [2/2]

Dtk_ErrorStatus Dtk_ToleranceSpecification::GetAnchorPoints	(	Dtk_pnt(&)	outTabPnts[DTK_NB_ANCHOR_TYPES],
		const Dtk_Int32 &	ignoreadd = 0
	)		const

Processes all the Dtk_ToleranceSpecification anchor points.

Parameters

outTabPnts	The resulting anchor point array.
ignoreadd	- internal use only -.

Returns

DtkNoError if OK

GetIndicator() [1/2]

Dtk_FCFFeatureIndicatorPtr& Dtk_ToleranceSpecification::GetIndicator

(

const Dtk_Size_t

inIndicatorIndex

)

Retrieves the ith indicator - get/set -.
.

Parameters

inIndicatorIndex

the indicator index.

Returns

The ith indicator.

See also

GetIndicator() const

GetIndicator() [2/2]

const Dtk_FCFFeatureIndicatorPtr& Dtk_ToleranceSpecification::GetIndicator

(

const Dtk_Size_t

inIndicatorIndex

)

const

Retrieves the ith indicator - get only -.
.

Parameters

inIndicatorIndex

the indicator index.

Returns

The ith indicator.

See also

GetIndicator()

GetInnerBoundingBox()

Dtk_ErrorStatus Dtk_ToleranceSpecification::GetInnerBoundingBox

(

Dtk_Oriented2dBBox &

outInnerBBox

)

const

GetMainValue()

const Dtk_CompositeText& Dtk_ToleranceSpecification::GetMainValue

(

)

const

Retrieves the Dtk_ToleranceSpecification text including all modifiers as Dtk_CompositeText - material modifier, etc... - - read only -.

Returns

Dtk_ToleranceSpecification Dtk_CompositeText.

GetMaterialModifier()

DTK_FDT_MODIFIER Dtk_ToleranceSpecification::GetMaterialModifier

(

)

const

Retrieves the Dtk_ToleranceSpecification material modifier - read only -.

Returns

The material modifier

GetNumIndicators()

Dtk_Size_t Dtk_ToleranceSpecification::GetNumIndicators

(

)

const

Retrieves indicator number - read only -.
.

Returns

The indicator number.

GetNumReferences()

Dtk_Size_t Dtk_ToleranceSpecification::GetNumReferences

(

)

const

Retrieves the reference blocks number - read only -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The reference blocks number.

See also

Dtk_ReferenceFrame::GetNumReferences()

GetOuterBoundingBox()

Dtk_ErrorStatus Dtk_ToleranceSpecification::GetOuterBoundingBox	(	Dtk_Oriented2dBBox &	outOuterBBox,
		const Dtk_bool	inIncludeReferenceFrame = DTK_TRUE,
		const Dtk_bool	InIncludeIndicators = DTK_TRUE
	)		const

Retrieve the Dtk_ToleranceSpecification Outer Bounding Box.

Parameters

outOuterBBox	The resulting Outer Bounding Box.
inIncludeReferenceFrame	DTK_TRUE to include the reference frame Bounding box - DTK_TRUE by default -.
InIncludeIndicators	DTK_TRUE to include the indicatorBounding boxes - DTK_TRUE by default -.

Returns

DtkNoError if OK

GetOuterBoundingBoxWithOutRefFrame()

Dtk_ErrorStatus Dtk_ToleranceSpecification::GetOuterBoundingBoxWithOutRefFrame

(

Dtk_Oriented2dBBox &

outOuterBBox

)

const

GetSize()

virtual Dtk_Size_t Dtk_Object::GetSize ( ) const

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh_face, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Entity, and Dtk_Info.

GetXAxis()

Dtk_dir Dtk_ToleranceSpecification::GetXAxis

(

)

const

Retrieves the X Axis for the Dtk_ToleranceSpecification - read only -.

Returns

The X Axis

GetYAxis()

Dtk_dir Dtk_ToleranceSpecification::GetYAxis

(

)

const

Retrieves the Y Axis for the Dtk_ToleranceSpecification - read only -.

Returns

The Y Axis

HasFreeStateModifier()

Dtk_bool Dtk_ToleranceSpecification::HasFreeStateModifier

(

)

const

Tells if the Dtk_ToleranceSpecification has a FreeState Modifier or not - read only -.

Returns

DTK_TRUE if a FreeState modifier is present. DTK_FALSE else

operator=() [1/2]

Dtk_ToleranceSpecification& Dtk_ToleranceSpecification::operator=

(

const Dtk_ToleranceSpecification &

inToBeAssigned

)

Assignment Operator.

Parameters

inToBeAssigned

Object to copy.

operator=() [2/2]

Dtk_ToleranceSpecification& Dtk_ToleranceSpecification::operator=

(

Dtk_ToleranceSpecification &&

inToBeMoved

)

\MoveOp{inToBeMoved}

ProcessHeight()

Dtk_Double64 Dtk_ToleranceSpecification::ProcessHeight

(

)

const

Internal use only.

ProcessWidth()

Dtk_Double64 Dtk_ToleranceSpecification::ProcessWidth

(

)

const

Internal use only.

Reference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::Reference

(

const Dtk_Size_t &

inReferencePos

)

Retrieves the ith reference block - get/set -.
This is a shortcut without using Dtk_ReferenceFrame object.

Parameters

inReferencePos

the reference block index.

Returns

The ith reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

Reference() const

Dtk_ReferenceFrame::Reference()

Reference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::Reference

(

const Dtk_Size_t &

inReferencePos

)

const

Retrieves the ith reference block - get/set -.
This is a shortcut without using Dtk_ReferenceFrame object.

Parameters

inReferencePos

the reference block index.

Returns

The ith reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

Reference()

Dtk_ReferenceFrame::Reference() const

ReferenceFrame() [1/2]

Dtk_ReferenceFramePtr& Dtk_ToleranceSpecification::ReferenceFrame

(

)

Retrieves the reference frame- get/set -.

Returns

The reference frame

See also

ReferenceFrame() const

ReferenceFrame() [2/2]

const Dtk_ReferenceFramePtr& Dtk_ToleranceSpecification::ReferenceFrame

(

)

const

Retrieves the reference frame- read only -.

Returns

The reference frame

See also

ReferenceFrame()

SecondReference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::SecondReference

(

)

Retrieves the second reference block - get/set -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The second reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

SecondReference() const

Dtk_ReferenceFrame::SecondReference()

SecondReference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::SecondReference

(

)

const

Retrieves the second reference block - read only -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The second reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

SecondReference()

Dtk_ReferenceFrame::SecondReference() const

SetAnchorPoint()

Dtk_ErrorStatus Dtk_ToleranceSpecification::SetAnchorPoint	(	const Dtk_pnt &	inNewLocation,
		const Dtk_anchor_type &	inLocationAnchorType
	)

Sets the Dtk_ToleranceSpecification anchor point.

Parameters

inNewLocation	The new location point.
inLocationAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

SetAsDeprecated() [1/4]

Dtk_ToleranceSpecification::SetAsDeprecated	(	"2020.2"	,
		"Use Explode(Dtk_CompositeText &outCompositeText,Dtk_tab<Dtk_CurvePtr> &outGeoms) instead"
	)		&

OBSOLETE.

SetAsDeprecated() [2/4]

Dtk_ToleranceSpecification::SetAsDeprecated	(	"2021.1"	,
		"Use SetMainValue mehod to alter MainValue instead."
	)		const &

SetAsDeprecated() [3/4]

Dtk_ToleranceSpecification::SetAsDeprecated	(	"2021.1"	,
		"Use SetMainValue mehod to alter MainValue instead."
	)		const &

SetAsDeprecated() [4/4]

Dtk_ToleranceSpecification::SetAsDeprecated	(	"2021.1"	,
		"Use SetMainValue mehod to alter MainValue instead."
	)		const &

Set the outer Bounding Box.

Parameters

inOuterBBox

The outer Bounding Box.

SetMainValue()

void Dtk_ToleranceSpecification::SetMainValue

(

Dtk_CompositeText

inNewMainValue

)

Sets the Dtk_ToleranceSpecification text including all modifiers - material modifier, etc... -.

SetXAxis()

Dtk_ErrorStatus Dtk_ToleranceSpecification::SetXAxis

(

const Dtk_dir &

dir

)

Sets the X Axis for the Dtk_ToleranceSpecification and included Dtk_Texts.

Parameters

inXAxis

The new X Axis

Returns

dtkNoError if OK

SetYAxis()

Dtk_ErrorStatus Dtk_ToleranceSpecification::SetYAxis

(

const Dtk_dir &

dir

)

Sets the Y Axis for the Dtk_ToleranceSpecification and included Dtk_Texts.

Parameters

inYAxis

The new Y Axis

Returns

dtkNoError if OK

ThirdReference() [1/2]

Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::ThirdReference

(

)

Retrieves the third reference block - get/set -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The third reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

ThirdReference() const

Dtk_ReferenceFrame::ThirdReference()

ThirdReference() [2/2]

const Dtk_ReferenceBlockPtr& Dtk_ToleranceSpecification::ThirdReference

(

)

const

Retrieves the third reference block - read only -.
This is a shortcut without using Dtk_ReferenceFrame object.

Returns

The third reference block.

Exceptions

Dtk_NullPointerType

Dtk_Exception is raised if there isn't any Dtk_ReferenceFrame into the Dtk_ToleranceSpecification object

See also

ThirdReference()

Dtk_ReferenceFrame::ThirdReference() const

Transform()

Dtk_ErrorStatus Dtk_ToleranceSpecification::Transform

(

const Dtk_transfo &

inTransfo

)

Applies a transformation matrix to the entity. //!

Parameters

inTransfo

The transformation matrix to apply.

Translate()

void Dtk_ToleranceSpecification::Translate

(

const Dtk_dir &

inTranslationDir

)

Translates the text giving a translation vector.

Parameters

inTranslateDir

the translation vector

Returns

dtkNoError if OK

Friends And Related Function Documentation

Dtk_SmartPtr< Dtk_ToleranceSpecification >

friend class Dtk_SmartPtr< Dtk_ToleranceSpecification >

friend

Field Documentation

_Private

Dtk_Handle* Dtk_ToleranceSpecification::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited

outGeoms

Dtk_tab<Geometric_set_select_entity*>& Dtk_ToleranceSpecification::outGeoms
