Dtk_Welding Class Reference

This is the Welding Symbol class. More...

Inheritance diagram for Dtk_Welding:

Public Types
enum	ComplementarySymbolEnum {   ComplementarySymbolNone = 0, ComplementarySymbolWeldWithFlatFace, ComplementarySymbolWeldWithConvexFace, ComplementarySymbolWeldWithConcaveFace,   ComplementarySymbolFlushFinishedWeld, ComplementarySymbolFilletWeldWithSmoothBlendedFace }
enum	FinishSymbolEnum {   FinishSymbolNone = 0, FinishSymbolChip, FinishSymbolFlush, FinishSymbolGrind,   FinishSymbolHammer, FinishSymbolMachine, FinishSymbolRoll, FinishSymbolPeening,   FinishSymbolUnspecified }
enum	WeldingSymbolEnum {   SymbolNone = 0, SymbolSquareButtWeld, SymbolSingeVButtWeld, SymbolSingleBevelButtWeld,   SymbolFlareVButtWeld, SymbolFlareBevelButtWeld, SymbolSingleUButtWeld, SymbolSingleJButtWeld,   SymbolFilletWeld, SymbolSpotWeld, SymbolBackWeld, SymbolSteepFlankedSingleBevelButtWeld,   SymbolSteepFlankedSingleVWeld, SymbolPlugWeld, SymbolRemovableBackingStripUsed, SymbolPermanentBackingStripUsed,   SymbolSurfacingWeld, SymbolSeamWeld, SymbolFlangeEdge, SymbolStickWeld,   SymbolFlangeCorner, SymbolVFlareWeld, SymbolFlareBevelWeld, SymbolScarfWeld,   SymbolStudWeld, SymbolANSIEdgeWeld, SymbolISOEdgeWeld, SymbolSurfaceJointWeld,   SymbolInclinedJointWeld, SymbolMeltThroughWeld, SymbolSolderedJointWeld, SymbolFoldJointWeld,   SymbolKGrooveWeld, SymbolStakeWeld }
enum	WeldTextType {   WeldTextUndefinedType = 0, WeldTextFinishSymbol, WeldTextAngle, WeldTextNum,   WeldTextLength, WeldTextSize, WeldTextDepth, WeldTextClearance,   WeldTextSecondFilletSize, WeldTextSecondFilletLength, WeldTextOpening, WeldTextWeldSymbol }

Public Member Functions
virtual Dtk_ErrorStatus	_Store (void *)
void	AddAdditionnalGeometries (const Dtk_tab< Dtk_EntityPtr > &inAdditionnalGeometries)
	Adds some additionnal geometries to the Dtk_2dEntity. More...
void	AddAdditionnalGeometry (const Dtk_EntityPtr &inAdditionnalGeometry)
	Adds an additionnal geometry to the Dtk_2dEntity. More...
void	AddAdditionnalTexts (Dtk_CompositeText inAddtionnalTexts)
	Adds some additionnal texts to the Dtk_2dEntity. More...
void	AddArrowSideAssociatedGeometry (Dtk_EntityPtr inAssociatedGeometry)
	Add an AssociatedGeometry of the ArrowSide. More...
void	AddArrowSideText (WeldTextType inType, Dtk_CompositeText inText)
	Add a Text and its type to the ArrowSide. More...
void	AddArrowSideUndefinedText (Dtk_CompositeText inText)
	Add an undefined Text to the ArrowSide. More...
void	AddAssociatedGeometries (Dtk_tab< Dtk_EntityPtr > inAssociatedGeometries)
	Add Geometries associated to whole Dtk_Welding (Weld body and tail). More...
void	AddAssociatedGeometry (Dtk_EntityPtr inAssociatedGeometry)
	Add a Geometry associated to whole Dtk_Welding (Weld body and tail). More...
Dtk_ErrorStatus	AddLeader (const Dtk_LeaderPtr &leader)
	Adds a leader to the Dtk_Annotation. More...
void	AddOtherSideAssociatedGeometry (Dtk_EntityPtr inAssociatedGeometry)
	Add an AssociatedGeometry of the OtherSide. More...
void	AddOtherSideText (WeldTextType inType, Dtk_CompositeText inText)
	Add a Text and its type to the OtherSide. More...
void	AddOtherSideUndefinedText (Dtk_CompositeText inText)
	Add an undefined Text to the OtherSide. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
int	DtkDynamicType (const int &inId)
virtual void	dump (FILE *file=stdout)
Dtk_Char8	FinishSymbolToDtk_Text (const FinishSymbolEnum inFinishSymbol) const
	Convert FinishSymbolEnum to Dtk_Char8. More...
Dtk_InfoPtr	get_info () const
type_detk	get_type_detk () const
const Dtk_tab< Dtk_EntityPtr > &	GetAdditionnalGeometries () const
	Retrieves the additionnal geometries of the Dtk_2dEntity. More...
const Dtk_CompositeText &	GetAdditionnalTexts () const
	Retrieves the additionnal texts of the Dtk_2dEntity. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&inTabPoints)[DTK_NB_ANCHOR_TYPES])
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&inTabPoints)[DTK_NB_ANCHOR_TYPES]) const
	Processes all the Dtk_Annotation anchor points. More...
Dtk_Text	GetAngleTextArrowSide () const
	Retrieves the ArrowSide Angle Dtk_Text. More...
Dtk_Text	GetAngleTextOtherSide () const
	Retrieves the OtherSide Angle Dtk_Text. More...
std::unordered_map< Dtk_UInt8, Dtk_CompositeText >	GetArrowSideAllTexts () const
	Return all the texts of the ArrowSide. More...
Dtk_CompositeText	GetArrowSideClearanceText () const
	Retrieves the ArrowSideClearanceText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideDepthText () const
	Retrieves the ArrowSideDepthText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideOpeningText () const
	Retrieves the ArrowSideOpeningText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideSecondFilletLengthText () const
	Retrieves the ArrowSideSecondFilletLengthText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideSecondFilletSizeText () const
	Retrieves the ArrowSideSecondFilletSizeText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideSizeText () const
	Retrieves the ArrowSideSizeText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideUndefinedText () const
	Retrieves the ArrowSideUndefinedText Dtk_CompositeText. More...
Dtk_CompositeText	GetArrowSideWeldSymbolText () const
	Retrieves the ArrowSideWeldSymbolText Dtk_CompositeText. More...
Dtk_bool	GetBrazingArrowSide () const
	Tells if the Brazing is activated for the ArrowSide. More...
Dtk_bool	GetBrazingOtherSide () const
	Tells if the Brazing is activated for the OtherSide. More...
ComplementarySymbolEnum	GetComplementarySymbolArrowSide () const
	Retrieves the ArrowSide WeldingSymboEnum. More...
ComplementarySymbolEnum	GetComplementarySymbolOtherSide () const
	Retrieves the OtherSide WeldingSymboEnum. More...
Dtk_bool	GetFieldWeldActivated () const
	Tells if the Field Weld Symbol is activated. More...
FinishSymbolEnum	GetFinishSymbolArrowSide () const
	Retrieves the ArrowSide FinishSymbol as FinishSymbolEnum. More...
Dtk_Text	GetFinishSymbolArrowSideAsText () const
FinishSymbolEnum	GetFinishSymbolOtherSide () const
	Retrieves the OtherSide FinishSymbol as FinishSymbolEnum. More...
Dtk_Text	GetFinishSymbolOtherSideAsText () const
Dtk_Text	GetFinishSymbolTextArrowSide () const
	Retrieves the ArrowSide Finish Symbol Dtk_Text. More...
Dtk_Text	GetFinishSymbolTextOtherSide () const
	Retrieves the OtherSide Finish Symbol Dtk_Text. More...
Dtk_tab< Dtk_EntityPtr >	GetGeometries (const Dtk_bool inIncludeWeldBodyGeometries=DTK_TRUE, const Dtk_bool inIncludeOtherSideGeometries=DTK_TRUE, const Dtk_bool inIncludeArrowSideGeometries=DTK_TRUE) const
	Retrieves the Dtk_Welding geometries. More...
const Dtk_ID &	GetID () const
	Get Internal UniqueID. More...
Dtk_Char8	GetIndentLineFlag () const
	Retrieves the IndentLine Flag. More...
Dtk_LeaderPtr	GetLeader (const Dtk_Size_t &inPos) const
	Gets the i'th leader. More...
Dtk_Text	GetLengthTextArrowSide () const
	Retrieves the ArrowSide Length Dtk_Text. More...
Dtk_Text	GetLengthTextOtherSide () const
	Retrieves the OtherSide Length Dtk_Text. More...
virtual Dtk_pnt	GetLocation () const
	Get the annoation location point. More...
const Dtk_anchor_type &	GetLocationAnchorType () const
	Gets the location anchor type - read only -. More...
Dtk_Size_t	GetNumLeaders () const
	Retrieves the number of leaders. More...
Dtk_Text	GetNumWeldsTextArrowSide () const
	Retrieves the ArrowSide NumWelds Dtk_Text. More...
Dtk_Text	GetNumWeldsTextOtherSide () const
	Retrieves the OtherSide NumWelds Dtk_Text. More...
Dtk_Double64	GetOffset () const
	Gets the annotation offset - read only -. More...
std::unordered_map< Dtk_UInt8, Dtk_CompositeText >	GetOtherSideAllTexts () const
	Return all the texts of the OtherSide. More...
Dtk_CompositeText	GetOtherSideClearanceText () const
	Retrieves the OtherSideClearanceText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideDepthText () const
	Retrieves the OtherSideDepthText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideOpeningText () const
	Retrieves the OtherSideOpeningText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideSecondFilletLengthText () const
	Retrieves the OtherSideSecondFilletLengthText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideSecondFilletSizeText () const
	Retrieves the OtherSideSecondFilletSizeText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideSizeText () const
	Retrieves the OtherSideSizeText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideUndefinedText () const
	Retrieves the OtherSideUndefinedText Dtk_CompositeText. More...
Dtk_CompositeText	GetOtherSideWeldSymbolText () const
	Retrieves the OtherSideWeldSymbolText Dtk_CompositeText. More...
Dtk_bool	GetReverseTailAndFieldFlag () const
	Tells if the Field/Tail are reversed. More...
Dtk_Double64	GetRotationAngle (const Dtk_dir &inXAxis=Dtk_dir(1, 0, 0), const Dtk_dir &inYAxis=Dtk_dir(0, 1, 0)) const
	Gets the text rotation angle giving a reference base. More...
virtual Dtk_Size_t	GetSize () const
Dtk_Text	GetSizeTextArrowSide () const
	Retrieves the ArrowSide Size Dtk_Text. More...
Dtk_Text	GetSizeTextOtherSide () const
	Retrieves the OtherSide Size Dtk_Text. More...
Dtk_CompositeText	GetTailText () const
	Retrieves the Tail Dtk_CompositeText. More...
WeldingSymbolEnum	GetWeldingSymbolArrowSide () const
	Retrieves the ArrowSide WeldingSymboEnum. More...
WeldingSymbolEnum	GetWeldingSymbolOtherSide () const
	Retrieves the OtherSide WeldingSymboEnum. More...
Dtk_bool	GetWeldTailActivated () const
	Tells if the Weld Tail is activated. More...
Dtk_dir	GetXAxis () const
	Get the X Axis - read only -. More...
Dtk_dir	GetYAxis () const
	Get the Y Axis - read only -. More...
Dtk_InfoPtr &	info ()
virtual void	PrepareTransfo ()
void	ProcessSymbolInfos (Dtk_tab< Dtk_pnt > &outPnts) const

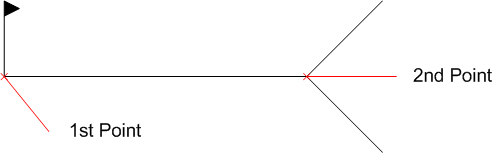

	Process the Welding Symbol Informations as shown in the picture below. More...
virtual Dtk_ErrorStatus	Reverse ()
	Reverses the Dtk_Annotation. More...
Dtk_ErrorStatus	SetAnchorPoint (const Dtk_pnt &inNewLocation, const Dtk_anchor_type &inLocationAnchorType)
	Sets the Dtk_Welding anchor point. More...
void	SetArrowSideAssociatedGeometries (Dtk_tab< Dtk_EntityPtr > inAssociatedGeometries)
	Set the AssociatedGeometries of the ArrowSide. More...
void	SetArrowSideClearanceText (Dtk_CompositeText inArrowSideClearanceText)
	Sets the ArrowSideClearanceText Dtk_CompositeText. More...
void	SetArrowSideContourSymbol (ComplementarySymbolEnum inContourSymbol)
	Set the ContourSymbol of the ArrowSide. More...
void	SetArrowSideData (const WeldingSymbolEnum inWeldingSymbol, Dtk_Text inNumWeldsText, Dtk_Text inAngleText, const ComplementarySymbolEnum inContourSymbol, Dtk_Text inFinishSymbolText, Dtk_Text inSizeText, Dtk_Text inLengthText, Dtk_tab< Dtk_EntityPtr > inAssociatedGeometries)
	Sets the Dtk_Welding ArrowSide Data. More...
void	SetArrowSideDepthText (Dtk_CompositeText inArrowSideDepthText)
	Sets the ArrowSideDepthText Dtk_CompositeText. More...
void	SetArrowSideOpeningText (Dtk_CompositeText inArrowSideOpeningText)
	Sets the ArrowSideOpeningText Dtk_CompositeText. More...
void	SetArrowSideSecondFilletLengthText (Dtk_CompositeText inArrowSideSecondFilletLengthText)
	Sets the ArrowSideSecondFilletLengthText Dtk_CompositeText. More...
void	SetArrowSideSecondFilletSizeText (Dtk_CompositeText inArrowSideSecondFilletSizeText)
	Sets the ArrowSideSecondFilletSizeText Dtk_CompositeText. More...
void	SetArrowSideSizeText (Dtk_CompositeText inArrowSideSizeText)
	Sets the ArrowSideSizeText Dtk_CompositeText. More...
void	SetArrowSideTexts (std::unordered_map< Dtk_UInt8, Dtk_CompositeText > &inTexts)
	Set the Dtk_Welding ArrowSide Texts and their types. More...
void	SetArrowSideWeldingSymbol (WeldingSymbolEnum inWeldingSymbol)
	Set the WeldingSymbol of the ArrowSide. More...
void	SetArrowSideWeldSymbolText (Dtk_CompositeText inArrowSideWeldSymbolText)
	Sets the ArrowSideWeldSymbolText Dtk_CompositeText. More...
	SetAsDeprecated ("Undefined", "Use Dtk_TextStyle::Justification()") Dtk_justication_type GetJustification() const
	Get the justification type - read only -. More...
void	SetBrazingArrowSide (const Dtk_bool inBrazing=DTK_TRUE)
	Sets the Brazing flag for the ArrowSide. More...
void	SetBrazingOtherSide (const Dtk_bool inBrazing=DTK_TRUE)
	Sets the Brazing flag for the OtherSide. More...
void	SetFieldWeldFlag (const Dtk_bool inFieldWeldFlag)
	Sets the Field Weld Flag. More...
void	SetIndentLineFlag (const Dtk_Char8 inIndentLineFlag=-1)
	Sets the IndentLine Flag. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &inLocation)
	Sets the location point of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &location, const Dtk_anchor_type &inAnchorType)
	Sets the location point of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetOffset (const Dtk_Double64 &inOffset)
	Sets the offset of the Dtk_Welding. More...
void	SetOtherSideAssociatedGeometries (Dtk_tab< Dtk_EntityPtr > inAssociatedGeometries)
	Set the AssociatedGeometries of the OtherSide. More...
void	SetOtherSideClearanceText (Dtk_CompositeText inOtherSideClearanceText)
	Sets the OtherSideClearanceText Dtk_CompositeText. More...
void	SetOtherSideContourSymbol (ComplementarySymbolEnum inContourSymbol)
	Set the ContourSymbol of the OtherSide. More...
void	SetOtherSideData (const WeldingSymbolEnum inWeldingSymbol, Dtk_Text inNumWeldsText, Dtk_Text inAngleText, const ComplementarySymbolEnum inContourSymbol, Dtk_Text inFinishSymbolText, Dtk_Text inSizeText, Dtk_Text inLengthText, Dtk_tab< Dtk_EntityPtr > inAssociatedGeometries)
	Sets the Dtk_Welding OtherSide Data. More...
void	SetOtherSideDepthText (Dtk_CompositeText inOtherSideDepthText)
	Sets the OtherSideDepthText Dtk_CompositeText. More...
void	SetOtherSideOpeningText (Dtk_CompositeText inOtherSideOpeningText)
	Sets the OtherSideOpeningText Dtk_CompositeText. More...
void	SetOtherSideSecondFilletLengthText (Dtk_CompositeText inOtherSideSecondFilletLengthText)
	Sets the OtherSideSecondFilletLengthText Dtk_CompositeText. More...
void	SetOtherSideSecondFilletSizeText (Dtk_CompositeText inOtherSideSecondFilletSizeText)
	Sets the OtherSideSecondFilletSizeText Dtk_CompositeText. More...
void	SetOtherSideSizeText (Dtk_CompositeText inOtherSideSizeText)
	Sets the OtherSideSizeText Dtk_CompositeText. More...
void	SetOtherSideTexts (std::unordered_map< Dtk_UInt8, Dtk_CompositeText > &inTexts)
	Set the Dtk_Welding OtherSide Texts and their types. More...
void	SetOtherSideWeldingSymbol (WeldingSymbolEnum inWeldingSymbol)
	Set the WeldingSymbol of the OtherSide. More...
void	SetOtherSideWeldSymbolText (Dtk_CompositeText inOtherSideWeldSymbolText)
	Sets the OtherSideWeldSymbolText Dtk_CompositeText. More...
void	SetReverseTailAndFieldFlag (const Dtk_bool inReverseTailAndField=DTK_TRUE)
	Sets the Field/Tail Reverse Flag. More...
Dtk_ErrorStatus	SetRotationAngle (const Dtk_Double64 &inAngle)
	Sets the annotation angle using the annotation base. More...
void	SetSymbolInfos (Dtk_tab< Dtk_pnt > &inPnts)
	Process the Welding Symbol Informations. More...
void	SetTailText (Dtk_CompositeText inTailText)
	Sets the Tail Dtk_CompositeText. More...
void	SetWeldTailActivated (const Dtk_bool inTailActivated=DTK_FALSE)
	Sets the Tail Activation Flag. More...
Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Applies a transformation matrix to the entity. //! More...

Static Public Member Functions
static Dtk_string	ComplementarySymbolEnumToString (const ComplementarySymbolEnum &inEnum)
static Dtk_WeldingPtr	Create ()
	Calls default constructor to allocate a new object. More...
static Dtk_WeldingPtr	Create (const Dtk_pnt &inLocation, const Dtk_InfoPtr &inInfos, Dtk_tab< Dtk_LeaderPtr > inLeaders=Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64 inAngle=0.0, const Dtk_Double64 inOffset=0.0, const Dtk_anchor_type inAnchorType=DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type inJustification=DTK_JUSTIFY_LEFT)
	Calls full featured constructor to allocate a new object. More...
static Dtk_WeldingPtr	Create (const Dtk_pnt &inLocation, Dtk_CompositeText inTailText, const Dtk_bool inFieldWeldActivated, const Dtk_Char8 inIndentLineFlag, const Dtk_bool inTailActivated, const Dtk_bool inReverseTailAndField, const Dtk_InfoPtr &inInfos, Dtk_tab< Dtk_LeaderPtr > inLeaders, const Dtk_Double64 inAngle, const Dtk_Double64 inOffset, const Dtk_anchor_type inAnchorType, const Dtk_justication_type inJustification)
	Calls full featured constructor to allocate a new object. More...
static Dtk_WeldingPtr	Create (const Dtk_Welding &in)
	Calls copy constructor to allocate a new object. More...
static Dtk_Welding *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...
static Dtk_string	FinishSymbolEnumToString (const FinishSymbolEnum &inEnum)
static Dtk_string	WeldingSymbolEnumToString (const WeldingSymbolEnum &inEnum)

Protected Types
enum	{ _typeID = DTK_TYPE_2D_ENTITY }
enum	{ _typeID = DTK_TYPE_ENTITY }
enum	{ _typeID = DTK_TYPE_ANNOTATION }
enum	{ _typeID = DTK_TYPE_WELDING }

Protected Member Functions
virtual Dtk_Object *	Clone ()
	Dtk_Welding ()
	Dtk_Welding (const Dtk_pnt &inLocation, const Dtk_InfoPtr &inInfos, Dtk_tab< Dtk_LeaderPtr > inLeaders=Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64 inAngle=0.0, const Dtk_Double64 inOffset=0.0, const Dtk_anchor_type inAnchor_type=DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type inJustification=DTK_JUSTIFY_LEFT)
	Dtk_Welding (const Dtk_pnt &inLocation, Dtk_CompositeText inMiddleRightText, const Dtk_bool inFieldWeldActivated, const Dtk_Char8 inIndentLineFlag, const Dtk_bool inTailActivated, const Dtk_bool inReverseTailAndField, const Dtk_InfoPtr &inInfos, Dtk_tab< Dtk_LeaderPtr > inLeaders, const Dtk_Double64 inAngle, const Dtk_Double64 inOffset, const Dtk_anchor_type inAnchorType, const Dtk_justication_type inJustification)
	Dtk_Welding (const Dtk_Welding &)
	Dtk_Welding (Dtk_Welding &&in) DTK_NOEXCEPT
	~Dtk_Welding ()

Protected Attributes
std::unique_ptr< Dtk_Handle >	_Private
unsigned long	count_

Detailed Description

This is the Welding Symbol class.

See also

Use Dtk_WeldingPtr class to handle it.

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_2D_ENTITY
     };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_ENTITY };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_ANNOTATION
     };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

{ _typeID = DTK_TYPE_WELDING };

ComplementarySymbolEnum

enum Dtk_Welding::ComplementarySymbolEnum

Enumerator
ComplementarySymbolNone
ComplementarySymbolWeldWithFlatFace
ComplementarySymbolWeldWithConvexFace
ComplementarySymbolWeldWithConcaveFace
ComplementarySymbolFlushFinishedWeld
ComplementarySymbolFilletWeldWithSmoothBlendedFace

                                {
        ComplementarySymbolNone = 0,
        //! \image html ComplementarySymbolWeldWithFlatFace.png
        ComplementarySymbolWeldWithFlatFace,
        //! \image html ComplementarySymbolWeldWithConvexFace.png
        ComplementarySymbolWeldWithConvexFace,
        //! \image html ComplementarySymbolWeldWithConcaveFace.png
        ComplementarySymbolWeldWithConcaveFace,
        //! \image html ComplementarySymbolFlushFinishedWeld.png
        ComplementarySymbolFlushFinishedWeld,
        //! \image html ComplementarySymbolFilletWeldWithSmoothBlendedFace.png
        ComplementarySymbolFilletWeldWithSmoothBlendedFace
    };

FinishSymbolEnum

enum Dtk_Welding::FinishSymbolEnum

Enumerator
FinishSymbolNone
FinishSymbolChip
FinishSymbolFlush
FinishSymbolGrind
FinishSymbolHammer
FinishSymbolMachine
FinishSymbolRoll
FinishSymbolPeening
FinishSymbolUnspecified

                         {
        FinishSymbolNone = 0,
        //! \image html WeldFinishSymbolChip.png
        FinishSymbolChip,
        //! \image html WeldFinishSymbolFlush.png
        FinishSymbolFlush,
        //! \image html WeldFinishSymbolGrind.png
        FinishSymbolGrind,
        //! \image html WeldFinishSymbolHammer.png
        FinishSymbolHammer,
        //! \image html WeldFinishSymbolMachine.png
        FinishSymbolMachine,
        //! \image html WeldFinishSymbolRoll.png
        FinishSymbolRoll,
          //! \image html WeldFinishSymbolPeening.png
          FinishSymbolPeening,
        //! \image html WeldFinishSymbolUnspecified.png
        FinishSymbolUnspecified
    };

WeldingSymbolEnum

enum Dtk_Welding::WeldingSymbolEnum

Enumerator
SymbolNone
SymbolSquareButtWeld
SymbolSingeVButtWeld
SymbolSingleBevelButtWeld
SymbolFlareVButtWeld
SymbolFlareBevelButtWeld
SymbolSingleUButtWeld
SymbolSingleJButtWeld
SymbolFilletWeld
SymbolSpotWeld
SymbolBackWeld
SymbolSteepFlankedSingleBevelButtWeld
SymbolSteepFlankedSingleVWeld
SymbolPlugWeld
SymbolRemovableBackingStripUsed
SymbolPermanentBackingStripUsed
SymbolSurfacingWeld
SymbolSeamWeld
SymbolFlangeEdge
SymbolStickWeld
SymbolFlangeCorner
SymbolVFlareWeld
SymbolFlareBevelWeld
SymbolScarfWeld
SymbolStudWeld
SymbolANSIEdgeWeld
SymbolISOEdgeWeld
SymbolSurfaceJointWeld
SymbolInclinedJointWeld
SymbolMeltThroughWeld
SymbolSolderedJointWeld
SymbolFoldJointWeld
SymbolKGrooveWeld
SymbolStakeWeld

                          {
        SymbolNone = 0,
        //! \image html SymbolSquareButtWeld.png
        SymbolSquareButtWeld,
        //! \image html SymbolSingeVButtWeld.png
        SymbolSingeVButtWeld,
        //! \image html SymbolSingleBevelButtWeld.png
        SymbolSingleBevelButtWeld,
        //! \image html SymbolFlareVButtWeld.png
        SymbolFlareVButtWeld,
        //! \image html SymbolFlareBevelButtWeld.png
        SymbolFlareBevelButtWeld,
        //! \image html SymbolSingleUButtWeld.png
        SymbolSingleUButtWeld,
        //! \image html SymbolSingleJButtWeld.png
        SymbolSingleJButtWeld,
        //! \image html SymbolFilletWeld.png
        SymbolFilletWeld,
        //! \image html SymbolSpotWeld.png
        SymbolSpotWeld,
        //! \image html SymbolBackWeld.png
        SymbolBackWeld,
        //! \image html SymbolSteepFlankedSingleBevelButtWeld.png
        SymbolSteepFlankedSingleBevelButtWeld,
        //! \image html SymbolSteepFlankedSingleVWeld.png
        SymbolSteepFlankedSingleVWeld,
        //! \image html SymbolPlugWeld.png
        SymbolPlugWeld,
        //! \image html SymbolRemovableBackingStripUsed.png
        SymbolRemovableBackingStripUsed,
        //! \image html SymbolPermanentBackingStripUsed.png
        SymbolPermanentBackingStripUsed,
        //! \image html SymbolSurfacingWeld.png
        SymbolSurfacingWeld,
        //! \image html SymbolSeamWeld.png
        SymbolSeamWeld,
        //! \image html SymbolFlangeEdge.png
        SymbolFlangeEdge,
        //! \image html SymbolStickWeld.png
        SymbolStickWeld,
        //! \image html SymbolFlangeCorner.png
        SymbolFlangeCorner,
        //! \image html SymbolVFlareWeld.png
        SymbolVFlareWeld,
        //! \image html SymbolFlareBevelWeld.png
        SymbolFlareBevelWeld,
        //! \image html SymbolScarfWeld.png
        SymbolScarfWeld,
        //! \image html SymbolStudWeld.png
        SymbolStudWeld,
        //! \image html SymbolANSIEdgeWeld.png
        SymbolANSIEdgeWeld,
        //! \image html SymbolISOEdgeWeld.png
        SymbolISOEdgeWeld,
        //! \image html SymbolSurfaceJointWeld.png
        SymbolSurfaceJointWeld,
        //! \image html SymbolInclinedJointWeld.png
        SymbolInclinedJointWeld,
        //! \image html SymbolMeltThroughWeld.png
        SymbolMeltThroughWeld,
          //! \image html SymbolSolderedJointWeld.png
          SymbolSolderedJointWeld,
          //! \image html SymbolFoldJointWeld.png
          SymbolFoldJointWeld,
          //! \image html SymbolKGrooveWeld.png
          SymbolKGrooveWeld,
          //! \image html SymbolStakeWeld.png
          SymbolStakeWeld
    };

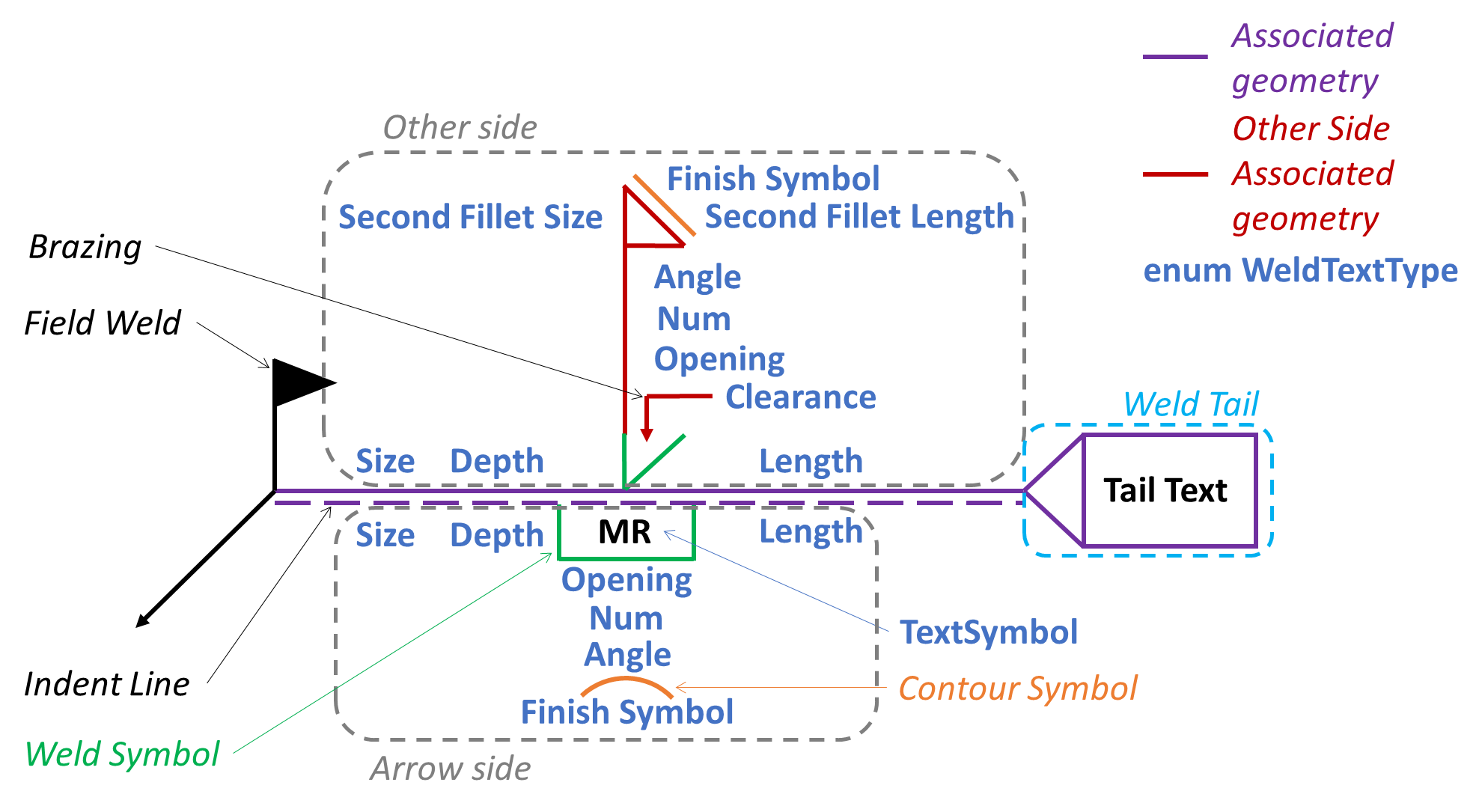

WeldTextType

enum Dtk_Welding::WeldTextType

Enumerator
WeldTextUndefinedType
WeldTextFinishSymbol
WeldTextAngle
WeldTextNum
WeldTextLength
WeldTextSize
WeldTextDepth
WeldTextClearance
WeldTextSecondFilletSize
WeldTextSecondFilletLength
WeldTextOpening
WeldTextWeldSymbol

     {
          WeldTextUndefinedType = 0,
          WeldTextFinishSymbol,
          WeldTextAngle,
          WeldTextNum,
          WeldTextLength,
          WeldTextSize,
          WeldTextDepth,
          WeldTextClearance,
          WeldTextSecondFilletSize,
          WeldTextSecondFilletLength,
          WeldTextOpening,
          WeldTextWeldSymbol
     };

Constructor & Destructor Documentation

Dtk_Welding() [1/5]

Dtk_Welding::Dtk_Welding ( )

protected

See also

Create()

Dtk_Welding() [2/5]

Dtk_Welding::Dtk_Welding ( const Dtk_pnt &  inLocation, Dtk_CompositeText  inMiddleRightText, const Dtk_bool  inFieldWeldActivated, const Dtk_Char8  inIndentLineFlag, const Dtk_bool  inTailActivated, const Dtk_bool  inReverseTailAndField, const Dtk_InfoPtr &  inInfos, Dtk_tab< Dtk_LeaderPtr >  inLeaders, const Dtk_Double64  inAngle, const Dtk_Double64  inOffset, const Dtk_anchor_type  inAnchorType, const Dtk_justication_type  inJustification  )

protected

See also

Create(const Dtk_pnt&, const Dtk_CompositeText&, const Dtk_bool, const Dtk_Char8, const Dtk_bool, const Dtk_bool, const Dtk_InfoPtr&, const Dtk_tab<Dtk_LeaderPtr>&, const Dtk_Double64, const Dtk_Double64, const Dtk_anchor_type, const Dtk_justication_type)

Dtk_Welding() [3/5]

Dtk_Welding::Dtk_Welding ( const Dtk_pnt &  inLocation, const Dtk_InfoPtr &  inInfos, Dtk_tab< Dtk_LeaderPtr >  inLeaders = Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64  inAngle = 0.0, const Dtk_Double64  inOffset = 0.0, const Dtk_anchor_type  inAnchor_type = DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type  inJustification = DTK_JUSTIFY_LEFT  )

protected

See also

Create(const Dtk_pnt&, const Dtk_InfoPtr&, const Dtk_tab<Dtk_LeaderPtr>&, const Dtk_Double64, const Dtk_Double64, const Dtk_anchor_type, const Dtk_justication_type)

Dtk_Welding() [4/5]

Dtk_Welding::Dtk_Welding ( const Dtk_Welding &  )

protected

See also

Create(const Dtk_Welding &)

Dtk_Welding() [5/5]

Dtk_Welding::Dtk_Welding ( Dtk_Welding &&  in )

protected

~Dtk_Welding()

Dtk_Welding::~Dtk_Welding ( )

protected

Member Function Documentation

_Store()

virtual Dtk_ErrorStatus Dtk_Entity::_Store ( void *  )

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

AddAdditionnalGeometries()

void Dtk_2dEntity::AddAdditionnalGeometries ( const Dtk_tab< Dtk_EntityPtr > &  inAdditionnalGeometries )

inherited

Adds some additionnal geometries to the Dtk_2dEntity.

Parameters

inAdditionnalGeometries

The geometries to be added

AddAdditionnalGeometry()

void Dtk_2dEntity::AddAdditionnalGeometry ( const Dtk_EntityPtr &  inAdditionnalGeometry )

inherited

Adds an additionnal geometry to the Dtk_2dEntity.

Parameters

inAdditionnalGeometry

The geometry to be added

AddAdditionnalTexts()

void Dtk_2dEntity::AddAdditionnalTexts ( Dtk_CompositeText  inAddtionnalTexts )

inherited

Adds some additionnal texts to the Dtk_2dEntity.

Parameters

inAddtionnalTexts

The texts to be added

AddArrowSideAssociatedGeometry()

void Dtk_Welding::AddArrowSideAssociatedGeometry

(

Dtk_EntityPtr

inAssociatedGeometry

)

Add an AssociatedGeometry of the ArrowSide.

Parameters

inAssociatedGeometry

The Geometry associated to the ArrowSide.

AddArrowSideText()

void Dtk_Welding::AddArrowSideText	(	WeldTextType	inType,
		Dtk_CompositeText	inText
	)

Add a Text and its type to the ArrowSide.

Parameters

inType	The WeldTextType
inTexts	The text

AddArrowSideUndefinedText()

void Dtk_Welding::AddArrowSideUndefinedText

(

Dtk_CompositeText

inText

)

Add an undefined Text to the ArrowSide.

Parameters

inTexts

The text

AddAssociatedGeometries()

void Dtk_Welding::AddAssociatedGeometries

(

Dtk_tab< Dtk_EntityPtr >

inAssociatedGeometries

)

Add Geometries associated to whole Dtk_Welding (Weld body and tail).

Remarks

Used to Dtk_symbol convertion.

Parameters

inAssociatedGeometries

The Geometries associated to the Dtk_Welding.

AddAssociatedGeometry()

void Dtk_Welding::AddAssociatedGeometry

(

Dtk_EntityPtr

inAssociatedGeometry

)

Add a Geometry associated to whole Dtk_Welding (Weld body and tail).

Remarks

Used to Dtk_symbol convertion.

Parameters

inAssociatedGeometry

The Geometry associated to the Dtk_Welding.

AddLeader()

Dtk_ErrorStatus Dtk_Annotation::AddLeader ( const Dtk_LeaderPtr &  leader )

inherited

Adds a leader to the Dtk_Annotation.

Parameters

leader

The leader to be added

Returns

dtkNoError is OK

Remarks

If Added leader is NULL, so no leader is added.

AddOtherSideAssociatedGeometry()

void Dtk_Welding::AddOtherSideAssociatedGeometry

(

Dtk_EntityPtr

inAssociatedGeometry

)

Add an AssociatedGeometry of the OtherSide.

Parameters

inAssociatedGeometry

The Geometry associated to the OtherSide.

AddOtherSideText()

void Dtk_Welding::AddOtherSideText	(	WeldTextType	inType,
		Dtk_CompositeText	inText
	)

Add a Text and its type to the OtherSide.

Parameters

inType	The WeldTextType
inTexts	The text

AddOtherSideUndefinedText()

void Dtk_Welding::AddOtherSideUndefinedText

(

Dtk_CompositeText

inText

)

Add an undefined Text to the OtherSide.

Parameters

inTexts

The text

Clone()

virtual Dtk_Object* Dtk_Welding::Clone ( )

protectedvirtual

Implements Dtk_Annotation.

{ return new Dtk_Welding(*this); }

ComplementarySymbolEnumToString()

static Dtk_string Dtk_Welding::ComplementarySymbolEnumToString ( const ComplementarySymbolEnum &  inEnum )

static

    {
        switch( inEnum )
        {
        case ComplementarySymbolNone :                               return L"ComplementarySymbolNone";
        case ComplementarySymbolWeldWithFlatFace :                   return L"ComplementarySymbolWeldWithFlatFace";
        case ComplementarySymbolWeldWithConvexFace :                 return L"ComplementarySymbolWeldWithConvexFace";
        case ComplementarySymbolWeldWithConcaveFace :                return L"ComplementarySymbolWeldWithConcaveFace";
        case ComplementarySymbolFlushFinishedWeld :                  return L"ComplementarySymbolFlushFinishedWeld";
        case ComplementarySymbolFilletWeldWithSmoothBlendedFace :    return L"ComplementarySymbolFilletWeldWithSmoothBlendedFace";
        default :                                                    return L"Unknown";
        }
    }

Create() [1/4]

static Dtk_WeldingPtr Dtk_Welding::Create ( )

static

Calls default constructor to allocate a new object.

Create() [2/4]

static Dtk_WeldingPtr Dtk_Welding::Create ( const Dtk_pnt &  inLocation, const Dtk_InfoPtr &  inInfos, Dtk_tab< Dtk_LeaderPtr >  inLeaders = Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64  inAngle = 0.0, const Dtk_Double64  inOffset = 0.0, const Dtk_anchor_type  inAnchorType = DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type  inJustification = DTK_JUSTIFY_LEFT  )

static

Calls full featured constructor to allocate a new object.

Parameters

inLocationPnt	The Dtk_Welding location
inInfos	Dtk_Welding infos
inLeaders	Leaders array.
inAngle	Angle.
inOffSet	Offset.
inAnchorType	Dtk_Welding anchor type.
inJustificationType	Justification type.

Returns

The created Dtk_WeldingPtr

Create() [3/4]

static Dtk_WeldingPtr Dtk_Welding::Create ( const Dtk_pnt &  inLocation, Dtk_CompositeText  inTailText, const Dtk_bool  inFieldWeldActivated, const Dtk_Char8  inIndentLineFlag, const Dtk_bool  inTailActivated, const Dtk_bool  inReverseTailAndField, const Dtk_InfoPtr &  inInfos, Dtk_tab< Dtk_LeaderPtr >  inLeaders, const Dtk_Double64  inAngle, const Dtk_Double64  inOffset, const Dtk_anchor_type  inAnchorType, const Dtk_justication_type  inJustification  )

static

Calls full featured constructor to allocate a new object.

Parameters

inLocationPnt	The Dtk_Welding location
inTailText	Tail Dtk_CompositeText.
inFieldWeldActivated	DTK_TRUE if Field is activated. DTK_FALSE else.
inIndentLineFlag	The IndentLineSideDown Flag: -1 To disable Indent Line - default -. 0 To set Indent Line to OtherSide - Up -. 1 To set Indent Line to ArrowSide - Down -.
inTailActivated	The Tail Flag Activation status. DTK_TRUE if activated DTK_FALSE else.
inReverseTailAndField	The Tail/Field Reverse Flag: If DTK_TRUE the Field is at the left of the Dtk_Welding and the Tail is at Right. If DTK_FALSE the Field and Tail are reversed - Field => Right and Tail => Left -.
inInfos	Dtk_Welding infos
inLeaders	Leaders array.
inAngle	Angle.
inOffSet	Offset.
inAnchorType	Dtk_Welding anchor type.
inJustificationType	Justification type.

Returns

The created Dtk_WeldingPtr

Create() [4/4]

static Dtk_WeldingPtr Dtk_Welding::Create ( const Dtk_Welding &  in )

static

Calls copy constructor to allocate a new object.

Parameters

in	Object to copy from.

DtkDynamicCast()

static Dtk_Welding* Dtk_Welding::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_Welding::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

int Dtk_Entity::DtkDynamicType ( const int &  inId )

virtualinherited

Implements Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, and Dtk_AxisSystem.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

FinishSymbolEnumToString()

static Dtk_string Dtk_Welding::FinishSymbolEnumToString ( const FinishSymbolEnum &  inEnum )

static

    {
        switch( inEnum )
        {
        case FinishSymbolNone :                                     return L"FinishSymbolNone";
        case FinishSymbolChip :                                     return L"FinishSymbolChip";
        case FinishSymbolFlush :                                    return L"FinishSymbolFlush";
        case FinishSymbolGrind :                                    return L"FinishSymbolGrind";
        case FinishSymbolHammer :                                   return L"FinishSymbolHammer";
        case FinishSymbolMachine :                                  return L"FinishSymbolMachine";
          case FinishSymbolRoll :                                     return L"FinishSymbolRoll";
          case FinishSymbolPeening :                                  return L"FinishSymbolPeening";
        case FinishSymbolUnspecified :                              return L"FinishSymbolUnspecified";
        default :                                                   return L"Unknown";
        }
    }

FinishSymbolToDtk_Text()

Dtk_Char8 Dtk_Welding::FinishSymbolToDtk_Text

(

const FinishSymbolEnum

inFinishSymbol

)

const

Convert FinishSymbolEnum to Dtk_Char8.

Parameters

inFinishSymbol

FinishSymbolEnum to be converted.

Returns

Dtk_Char8 related to inFinishSymbol value.

get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const

inherited

get_type_detk()

type_detk Dtk_Welding::get_type_detk ( ) const

virtual

Returns

The type of the entity type - DTK_TYPE_WELDING -

Implements Dtk_Annotation.

{ return DTK_TYPE_WELDING; }

GetAdditionnalGeometries()

const Dtk_tab< Dtk_EntityPtr >& Dtk_2dEntity::GetAdditionnalGeometries ( ) const

inherited

Retrieves the additionnal geometries of the Dtk_2dEntity.

Returns

The additionnal geometries array - read only -.

GetAdditionnalTexts()

const Dtk_CompositeText& Dtk_2dEntity::GetAdditionnalTexts ( ) const

inherited

Retrieves the additionnal texts of the Dtk_2dEntity.

Returns

The additionnal texts - read only -.

GetAnchorPoints() [1/2]

Dtk_ErrorStatus Dtk_Welding::GetAnchorPoints

(

Dtk_pnt(&)

inTabPoints[DTK_NB_ANCHOR_TYPES]

)

GetAnchorPoints() [2/2]

Dtk_ErrorStatus Dtk_Welding::GetAnchorPoints ( Dtk_pnt(&)  outTabPnts[DTK_NB_ANCHOR_TYPES] ) const

virtual

Processes all the Dtk_Annotation anchor points.

Parameters

outTabPnts

The resulting anchor point array.

Returns

dtkNoError if OK

Implements Dtk_Annotation.

GetAngleTextArrowSide()

Dtk_Text Dtk_Welding::GetAngleTextArrowSide

(

)

const

Retrieves the ArrowSide Angle Dtk_Text.

Returns

The ArrowSide Angle Dtk_Text.

GetAngleTextOtherSide()

Dtk_Text Dtk_Welding::GetAngleTextOtherSide

(

)

const

Retrieves the OtherSide Angle Dtk_Text.

Returns

The OtherSide Angle Dtk_Text.

GetArrowSideAllTexts()

std::unordered_map<Dtk_UInt8, Dtk_CompositeText> Dtk_Welding::GetArrowSideAllTexts

(

)

const

Return all the texts of the ArrowSide.

Returns

A map with WeldTextType keys and Dtk_CompositeText

GetArrowSideClearanceText()

Dtk_CompositeText Dtk_Welding::GetArrowSideClearanceText

(

)

const

Retrieves the ArrowSideClearanceText Dtk_CompositeText.

Returns

The ArrowSideClearanceText Dtk_CompositeText.

GetArrowSideDepthText()

Dtk_CompositeText Dtk_Welding::GetArrowSideDepthText

(

)

const

Retrieves the ArrowSideDepthText Dtk_CompositeText.

Returns

The ArrowSideDepthText Dtk_CompositeText.

GetArrowSideOpeningText()

Dtk_CompositeText Dtk_Welding::GetArrowSideOpeningText

(

)

const

Retrieves the ArrowSideOpeningText Dtk_CompositeText.

Returns

The ArrowSideOpeningText Dtk_CompositeText.

GetArrowSideSecondFilletLengthText()

Dtk_CompositeText Dtk_Welding::GetArrowSideSecondFilletLengthText

(

)

const

Retrieves the ArrowSideSecondFilletLengthText Dtk_CompositeText.

Returns

The ArrowSideSecondFilletLengthText Dtk_CompositeText.

GetArrowSideSecondFilletSizeText()

Dtk_CompositeText Dtk_Welding::GetArrowSideSecondFilletSizeText

(

)

const

Retrieves the ArrowSideSecondFilletSizeText Dtk_CompositeText.

Returns

The ArrowSideSecondFilletSizeText Dtk_CompositeText.

GetArrowSideSizeText()

Dtk_CompositeText Dtk_Welding::GetArrowSideSizeText

(

)

const

Retrieves the ArrowSideSizeText Dtk_CompositeText.

Returns

The ArrowSideSizeText Dtk_CompositeText.

GetArrowSideUndefinedText()

Dtk_CompositeText Dtk_Welding::GetArrowSideUndefinedText

(

)

const

Retrieves the ArrowSideUndefinedText Dtk_CompositeText.

Returns

The ArrowSideUndefinedText Dtk_CompositeText.

GetArrowSideWeldSymbolText()

Dtk_CompositeText Dtk_Welding::GetArrowSideWeldSymbolText

(

)

const

Retrieves the ArrowSideWeldSymbolText Dtk_CompositeText.

Returns

The ArrowSideWeldSymbolText Dtk_CompositeText.

GetBrazingArrowSide()

Dtk_bool Dtk_Welding::GetBrazingArrowSide

(

)

const

Tells if the Brazing is activated for the ArrowSide.

Returns

DTK_TRUE if the Brazing is activated, and the corresponding geometry should be in the _AssociatedGeometries, DTK_FALSE otherwise

GetBrazingOtherSide()

Dtk_bool Dtk_Welding::GetBrazingOtherSide

(

)

const

Tells if the Brazing is activated for the OtherSide.

Returns

DTK_TRUE if the Brazing is activated, and the corresponding geometry should be in the _AssociatedGeometries, DTK_FALSE otherwise

GetComplementarySymbolArrowSide()

ComplementarySymbolEnum Dtk_Welding::GetComplementarySymbolArrowSide

(

)

const

Retrieves the ArrowSide WeldingSymboEnum.

Returns

The ArrowSide WeldingSymboEnum.

GetComplementarySymbolOtherSide()

ComplementarySymbolEnum Dtk_Welding::GetComplementarySymbolOtherSide

(

)

const

Retrieves the OtherSide WeldingSymboEnum.

Returns

The OtherSide WeldingSymboEnum.

GetFieldWeldActivated()

Dtk_bool Dtk_Welding::GetFieldWeldActivated

(

)

const

Tells if the Field Weld Symbol is activated.

Returns

DTK_TRUE if Field Weld Symbol is activated. DTK_FALSE else.

GetFinishSymbolArrowSide()

FinishSymbolEnum Dtk_Welding::GetFinishSymbolArrowSide

(

)

const

Retrieves the ArrowSide FinishSymbol as FinishSymbolEnum.

Returns

The ArrowSide FinishSymbol as FinishSymbolEnum.

GetFinishSymbolArrowSideAsText()

Dtk_Text Dtk_Welding::GetFinishSymbolArrowSideAsText

(

)

const

See also

GetFinishSymbolTextArrowSide() const

GetFinishSymbolOtherSide()

FinishSymbolEnum Dtk_Welding::GetFinishSymbolOtherSide

(

)

const

Retrieves the OtherSide FinishSymbol as FinishSymbolEnum.

Returns

The OtherSide FinishSymbol as FinishSymbolEnum.

GetFinishSymbolOtherSideAsText()

Dtk_Text Dtk_Welding::GetFinishSymbolOtherSideAsText

(

)

const

See also

GetFinishSymbolTextOtherSide() const

GetFinishSymbolTextArrowSide()

Dtk_Text Dtk_Welding::GetFinishSymbolTextArrowSide

(

)

const

Retrieves the ArrowSide Finish Symbol Dtk_Text.

Returns

The ArrowSide Finish Symbol Dtk_Text.

GetFinishSymbolTextOtherSide()

Dtk_Text Dtk_Welding::GetFinishSymbolTextOtherSide

(

)

const

Retrieves the OtherSide Finish Symbol Dtk_Text.

Returns

The OtherSide Finish Symbol Dtk_Text.

GetGeometries()

Dtk_tab< Dtk_EntityPtr > Dtk_Welding::GetGeometries	(	const Dtk_bool	inIncludeWeldBodyGeometries = DTK_TRUE,
		const Dtk_bool	inIncludeOtherSideGeometries = DTK_TRUE,
		const Dtk_bool	inIncludeArrowSideGeometries = DTK_TRUE
	)		const

Retrieves the Dtk_Welding geometries.

Parameters

inIncludeWeldBodyGeometries	If DTK_TRUE includes WeldBody geometries - DTK_TRUE by default -.
inIncludeOtherSideGeometries	If DTK_TRUE includes OtherSide geometries - DTK_TRUE by default -.
inIncludeArrowSideGeometries	If DTK_TRUE includes ArrowSide geometries - DTK_TRUE by default -.

Returns

All the associated geometries asked.

GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const

inherited

Get Internal UniqueID.

Returns

InternalID

GetIndentLineFlag()

Dtk_Char8 Dtk_Welding::GetIndentLineFlag

(

)

const

Retrieves the IndentLine Flag.

Returns

-1 if no Indent Line.

0 if Indent Line set at the OtherSide - Up -.

1 if Indent Line set at the ArrowSide - Down -.

GetLeader()

Dtk_LeaderPtr Dtk_Annotation::GetLeader ( const Dtk_Size_t &  inPos ) const

inherited

Gets the i'th leader.

Parameters

inPos

The leader position - 0 indexed -

Returns

The inPos'th leader

GetLengthTextArrowSide()

Dtk_Text Dtk_Welding::GetLengthTextArrowSide

(

)

const

Retrieves the ArrowSide Length Dtk_Text.

Returns

The ArrowSide Length Dtk_Text.

GetLengthTextOtherSide()

Dtk_Text Dtk_Welding::GetLengthTextOtherSide

(

)

const

Retrieves the OtherSide Length Dtk_Text.

Returns

The OtherSide Length Dtk_Text.

GetLocation()

virtual Dtk_pnt Dtk_Annotation::GetLocation ( ) const

virtualinherited

Get the annoation location point.

Returns

The location point

GetLocationAnchorType()

const Dtk_anchor_type& Dtk_Annotation::GetLocationAnchorType ( ) const

inherited

Gets the location anchor type - read only -.

Returns

The location anchor type.

GetNumLeaders()

Dtk_Size_t Dtk_Annotation::GetNumLeaders ( ) const

inherited

Retrieves the number of leaders.

Returns

The number of leaders

GetNumWeldsTextArrowSide()

Dtk_Text Dtk_Welding::GetNumWeldsTextArrowSide

(

)

const

Retrieves the ArrowSide NumWelds Dtk_Text.

Returns

The ArrowSide NumWelds Dtk_Text.

GetNumWeldsTextOtherSide()

Dtk_Text Dtk_Welding::GetNumWeldsTextOtherSide

(

)

const

Retrieves the OtherSide NumWelds Dtk_Text.

Returns

The OtherSide NumWelds Dtk_Text.

GetOffset()

Dtk_Double64 Dtk_Annotation::GetOffset ( ) const

inherited

Gets the annotation offset - read only -.

Returns

The annotation offset.

Warning

For internal use only

GetOtherSideAllTexts()

std::unordered_map<Dtk_UInt8, Dtk_CompositeText> Dtk_Welding::GetOtherSideAllTexts

(

)

const

Return all the texts of the OtherSide.

Returns

A map with WeldTextType keys and Dtk_CompositeText

GetOtherSideClearanceText()

Dtk_CompositeText Dtk_Welding::GetOtherSideClearanceText

(

)

const

Retrieves the OtherSideClearanceText Dtk_CompositeText.

Returns

The OtherSideClearanceText Dtk_CompositeText.

GetOtherSideDepthText()

Dtk_CompositeText Dtk_Welding::GetOtherSideDepthText

(

)

const

Retrieves the OtherSideDepthText Dtk_CompositeText.

Returns

The OtherSideDepthText Dtk_CompositeText.

GetOtherSideOpeningText()

Dtk_CompositeText Dtk_Welding::GetOtherSideOpeningText

(

)

const

Retrieves the OtherSideOpeningText Dtk_CompositeText.

Returns

The OtherSideOpeningText Dtk_CompositeText.

GetOtherSideSecondFilletLengthText()

Dtk_CompositeText Dtk_Welding::GetOtherSideSecondFilletLengthText

(

)

const

Retrieves the OtherSideSecondFilletLengthText Dtk_CompositeText.

Returns

The OtherSideSecondFilletLengthText Dtk_CompositeText.

GetOtherSideSecondFilletSizeText()

Dtk_CompositeText Dtk_Welding::GetOtherSideSecondFilletSizeText

(

)

const

Retrieves the OtherSideSecondFilletSizeText Dtk_CompositeText.

Returns

The OtherSideSecondFilletSizeText Dtk_CompositeText.

GetOtherSideSizeText()

Dtk_CompositeText Dtk_Welding::GetOtherSideSizeText

(

)

const

Retrieves the OtherSideSizeText Dtk_CompositeText.

Returns

The OtherSideSizeText Dtk_CompositeText.

GetOtherSideUndefinedText()

Dtk_CompositeText Dtk_Welding::GetOtherSideUndefinedText

(

)

const

Retrieves the OtherSideUndefinedText Dtk_CompositeText.

Returns

The OtherSideUndefinedText Dtk_CompositeText.

GetOtherSideWeldSymbolText()

Dtk_CompositeText Dtk_Welding::GetOtherSideWeldSymbolText

(

)

const

Retrieves the OtherSideWeldSymbolText Dtk_CompositeText.

Returns

The OtherSideWeldSymbolText Dtk_CompositeText.

GetReverseTailAndFieldFlag()

Dtk_bool Dtk_Welding::GetReverseTailAndFieldFlag

(

)

const

Tells if the Field/Tail are reversed.

Returns

DTK_FALSE if Field/Tail not reversed - Filed to the Left and Tail to the Right -.

DTK_TRUE if Field/Tail reversed.

GetRotationAngle()

Dtk_Double64 Dtk_Annotation::GetRotationAngle ( const Dtk_dir &  inXAxis = Dtk_dir(1, 0, 0), const Dtk_dir &  inYAxis = Dtk_dir(0, 1, 0)  ) const

inherited

Gets the text rotation angle giving a reference base.

Parameters

inXAxis	The reference X Axis - default value = (1,0,0) -
inYAxis	The reference Y Axis - default value = (0,1,0) -

Returns

The rotation angle.

GetSize()

virtual Dtk_Size_t Dtk_Entity::GetSize ( ) const

virtualinherited

Reimplemented from Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

GetSizeTextArrowSide()

Dtk_Text Dtk_Welding::GetSizeTextArrowSide

(

)

const

Retrieves the ArrowSide Size Dtk_Text.

Returns

The ArrowSide Size Dtk_Text.

GetSizeTextOtherSide()

Dtk_Text Dtk_Welding::GetSizeTextOtherSide

(

)

const

Retrieves the OtherSide Size Dtk_Text.

Returns

The OtherSide Size Dtk_Text.

GetTailText()

Dtk_CompositeText Dtk_Welding::GetTailText

(

)

const

Retrieves the Tail Dtk_CompositeText.

Returns

The Tail Dtk_CompositeText.

GetWeldingSymbolArrowSide()

WeldingSymbolEnum Dtk_Welding::GetWeldingSymbolArrowSide

(

)

const

Retrieves the ArrowSide WeldingSymboEnum.

Returns

The ArrowSide WeldingSymboEnum.

GetWeldingSymbolOtherSide()

WeldingSymbolEnum Dtk_Welding::GetWeldingSymbolOtherSide

(

)

const

Retrieves the OtherSide WeldingSymboEnum.

Returns

The OtherSide WeldingSymboEnum.

GetWeldTailActivated()

Dtk_bool Dtk_Welding::GetWeldTailActivated

(

)

const

Tells if the Weld Tail is activated.

Returns

DTK_FALSE if no Tail.

DTK_TRUE if Tail is activated.

GetXAxis()

Dtk_dir Dtk_Annotation::GetXAxis ( ) const

inherited

Get the X Axis - read only -.

Returns

The X Axis.

GetYAxis()

Dtk_dir Dtk_Annotation::GetYAxis ( ) const

inherited

Get the Y Axis - read only -.

Returns

The Y Axis.

info()

Dtk_InfoPtr& Dtk_Entity::info ( )

inherited

PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )

virtualinherited

Reimplemented in Dtk_OffsetSurface.

ProcessSymbolInfos()

void Dtk_Welding::ProcessSymbolInfos

(

Dtk_tab< Dtk_pnt > &

outPnts

)

const

Process the Welding Symbol Informations as shown in the picture below.

Parameters

outPnts

The reference points processed.

Remarks

The 1st point is the Field point.

The 2nd point is the Tail point.

Reverse()

virtual Dtk_ErrorStatus Dtk_Annotation::Reverse ( )

virtualinherited

Reverses the Dtk_Annotation.

Reimplemented in Dtk_DatumTarget.

SetAnchorPoint()

Dtk_ErrorStatus Dtk_Welding::SetAnchorPoint ( const Dtk_pnt &  inNewLocation, const Dtk_anchor_type &  inLocationAnchorType  )

virtual

Sets the Dtk_Welding anchor point.

Parameters

inNewLocation	The new location point.
inLocationAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetArrowSideAssociatedGeometries()

void Dtk_Welding::SetArrowSideAssociatedGeometries

(

Dtk_tab< Dtk_EntityPtr >

inAssociatedGeometries

)

Set the AssociatedGeometries of the ArrowSide.

Parameters

inAssociatedGeometries

The Geometries associated to the ArrowSide.

SetArrowSideClearanceText()

void Dtk_Welding::SetArrowSideClearanceText

(

Dtk_CompositeText

inArrowSideClearanceText

)

Sets the ArrowSideClearanceText Dtk_CompositeText.

Parameters

inArrowSideClearanceText

The Tail Dtk_CompositeText.

SetArrowSideContourSymbol()

void Dtk_Welding::SetArrowSideContourSymbol

(

ComplementarySymbolEnum

inContourSymbol

)

Set the ContourSymbol of the ArrowSide.

Parameters

inContourSymbol

The Contour Symbol.

SetArrowSideData()

void Dtk_Welding::SetArrowSideData	(	const WeldingSymbolEnum	inWeldingSymbol,
		Dtk_Text	inNumWeldsText,
		Dtk_Text	inAngleText,
		const ComplementarySymbolEnum	inContourSymbol,
		Dtk_Text	inFinishSymbolText,
		Dtk_Text	inSizeText,
		Dtk_Text	inLengthText,
		Dtk_tab< Dtk_EntityPtr >	inAssociatedGeometries
	)

Sets the Dtk_Welding ArrowSide Data.

Parameters

inWeldingSymbol	The Welding Symbol.
inNumWeldsText	The NumWelds Dtk_Text.
inAngleText	The Angle Dtk_Text.
inContourSymbol	The Contour Symbol.
inFinishSymbolText	The Finish Symbol Dtk_Text.
inSizeText	The Size Dtk_Text.
inLengthText	The Length Dtk_Text.
inAssociatedGeometries	The Geometries associated to the ArrowSide - used to Dtk_Symbol convertion -.

SetArrowSideDepthText()

void Dtk_Welding::SetArrowSideDepthText

(

Dtk_CompositeText

inArrowSideDepthText

)

Sets the ArrowSideDepthText Dtk_CompositeText.

Parameters

inArrowSideDepthText

The Tail Dtk_CompositeText.

SetArrowSideOpeningText()

void Dtk_Welding::SetArrowSideOpeningText

(

Dtk_CompositeText

inArrowSideOpeningText

)

Sets the ArrowSideOpeningText Dtk_CompositeText.

Parameters

inArrowSideOpeningText

The Tail Dtk_CompositeText.

SetArrowSideSecondFilletLengthText()

void Dtk_Welding::SetArrowSideSecondFilletLengthText

(

Dtk_CompositeText

inArrowSideSecondFilletLengthText

)

Sets the ArrowSideSecondFilletLengthText Dtk_CompositeText.

Parameters

inArrowSideSecondFilletLengthText

The Tail Dtk_CompositeText.

SetArrowSideSecondFilletSizeText()

void Dtk_Welding::SetArrowSideSecondFilletSizeText

(

Dtk_CompositeText

inArrowSideSecondFilletSizeText

)

Sets the ArrowSideSecondFilletSizeText Dtk_CompositeText.

Parameters

inArrowSideSecondFilletSizeText

The Tail Dtk_CompositeText.

SetArrowSideSizeText()

void Dtk_Welding::SetArrowSideSizeText

(

Dtk_CompositeText

inArrowSideSizeText

)

Sets the ArrowSideSizeText Dtk_CompositeText.

Parameters

inArrowSideSizeText

The Tail Dtk_CompositeText.

SetArrowSideTexts()

void Dtk_Welding::SetArrowSideTexts

(

std::unordered_map< Dtk_UInt8, Dtk_CompositeText > &

inTexts

)

Set the Dtk_Welding ArrowSide Texts and their types.

Parameters

inTexts

Map of texts with their corresponding WeldTextType

SetArrowSideWeldingSymbol()

void Dtk_Welding::SetArrowSideWeldingSymbol

(

WeldingSymbolEnum

inWeldingSymbol

)

Set the WeldingSymbol of the ArrowSide.

Parameters

inWeldingSymbol

The Welding Symbol.

SetArrowSideWeldSymbolText()

void Dtk_Welding::SetArrowSideWeldSymbolText

(

Dtk_CompositeText

inArrowSideWeldSymbolText

)

Sets the ArrowSideWeldSymbolText Dtk_CompositeText.

Parameters

inArrowSideWeldSymbolText

The Tail Dtk_CompositeText.

SetAsDeprecated()

Dtk_Annotation::SetAsDeprecated ( "Undefined"  , "Use Dtk_TextStyle::Justification()"    ) const

inherited

Get the justification type - read only -.

Returns

The justification type

Deprecated:

use the Dtk_TextStyle::Justification() instead

SetBrazingArrowSide()

void Dtk_Welding::SetBrazingArrowSide

(

const Dtk_bool

inBrazing = DTK_TRUE

)

Sets the Brazing flag for the ArrowSide.

Parameters

inBrazing

The Brazing Flag.

SetBrazingOtherSide()

void Dtk_Welding::SetBrazingOtherSide

(

const Dtk_bool

inBrazing = DTK_TRUE

)

Sets the Brazing flag for the OtherSide.

Parameters

inBrazing

The Brazing Flag.

SetFieldWeldFlag()

void Dtk_Welding::SetFieldWeldFlag

(

const Dtk_bool

inFieldWeldFlag

)

Sets the Field Weld Flag.

Parameters

inFieldWeldFlag

The Field Weld Flag. DTK_TRUE if Field Weld is activated. DTK_TRUE else.

SetIndentLineFlag()

void Dtk_Welding::SetIndentLineFlag

(

const Dtk_Char8

inIndentLineFlag = -1

)

Sets the IndentLine Flag.

Parameters

inIndentLineFlag

The IndentLine Flag: -1 To disable Indent Line - default -. 0 To set Indent Line to OtherSide - Up -. 1 To set Indent Line to ArrowSide - Down -.

SetLocation() [1/2]

Dtk_ErrorStatus Dtk_Welding::SetLocation ( const Dtk_pnt &  inLocation )

virtual

Sets the location point of the Dtk_Annotation.

The location point is related to the anchor type

Parameters

inLocation

the location point

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetLocation() [2/2]

Dtk_ErrorStatus Dtk_Annotation::SetLocation ( const Dtk_pnt &  location, const Dtk_anchor_type &  inAnchorType  )

inherited

Sets the location point of the Dtk_Annotation.

The location point is related to the anchor type

Parameters

location	the location point
inAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

SetOffset()

Dtk_ErrorStatus Dtk_Welding::SetOffset ( const Dtk_Double64 &  inOffset )

virtual

Sets the offset of the Dtk_Welding.

The Offset is used to process bounding frames.

Parameters

inOffset

The offset

Returns

dtkNoError if OK

Warning

For internal use only

Implements Dtk_Annotation.

SetOtherSideAssociatedGeometries()

void Dtk_Welding::SetOtherSideAssociatedGeometries

(

Dtk_tab< Dtk_EntityPtr >

inAssociatedGeometries

)

Set the AssociatedGeometries of the OtherSide.

Parameters

inAssociatedGeometries

The Geometries associated to the OtherSide.

SetOtherSideClearanceText()

void Dtk_Welding::SetOtherSideClearanceText

(

Dtk_CompositeText

inOtherSideClearanceText

)

Sets the OtherSideClearanceText Dtk_CompositeText.

Parameters

inOtherSideClearanceText

The Tail Dtk_CompositeText.

SetOtherSideContourSymbol()

void Dtk_Welding::SetOtherSideContourSymbol

(

ComplementarySymbolEnum

inContourSymbol

)

Set the ContourSymbol of the OtherSide.

Parameters

inContourSymbol

The Contour Symbol.

SetOtherSideData()

void Dtk_Welding::SetOtherSideData	(	const WeldingSymbolEnum	inWeldingSymbol,
		Dtk_Text	inNumWeldsText,
		Dtk_Text	inAngleText,
		const ComplementarySymbolEnum	inContourSymbol,
		Dtk_Text	inFinishSymbolText,
		Dtk_Text	inSizeText,
		Dtk_Text	inLengthText,
		Dtk_tab< Dtk_EntityPtr >	inAssociatedGeometries
	)

Sets the Dtk_Welding OtherSide Data.

Parameters

inWeldingSymbol	The Welding Symbol.
inNumWeldsText	The NumWelds Dtk_Text.
inAngleText	The Angle Dtk_Text.
inContourSymbol	The Contour Symbol.
inFinishSymbolText	The Finish Symbol Dtk_Text.
inSizeText	The Size Dtk_Text.
inLengthText	The Length Dtk_Text.
inAssociatedGeometries	The Geometries associated to the OtherSide - used to Dtk_Symbol convertion -.

SetOtherSideDepthText()

void Dtk_Welding::SetOtherSideDepthText

(

Dtk_CompositeText

inOtherSideDepthText

)

Sets the OtherSideDepthText Dtk_CompositeText.

Parameters

inOtherSideDepthText

The Tail Dtk_CompositeText.

SetOtherSideOpeningText()

void Dtk_Welding::SetOtherSideOpeningText

(

Dtk_CompositeText

inOtherSideOpeningText

)

Sets the OtherSideOpeningText Dtk_CompositeText.

Parameters

inOtherSideOpeningText

The Tail Dtk_CompositeText.

SetOtherSideSecondFilletLengthText()

void Dtk_Welding::SetOtherSideSecondFilletLengthText

(

Dtk_CompositeText

inOtherSideSecondFilletLengthText

)

Sets the OtherSideSecondFilletLengthText Dtk_CompositeText.

Parameters

inOtherSideSecondFilletLengthText

The Tail Dtk_CompositeText.

SetOtherSideSecondFilletSizeText()

void Dtk_Welding::SetOtherSideSecondFilletSizeText

(

Dtk_CompositeText

inOtherSideSecondFilletSizeText

)

Sets the OtherSideSecondFilletSizeText Dtk_CompositeText.

Parameters

inOtherSideSecondFilletSizeText

The Tail Dtk_CompositeText.

SetOtherSideSizeText()

void Dtk_Welding::SetOtherSideSizeText

(

Dtk_CompositeText

inOtherSideSizeText

)

Sets the OtherSideSizeText Dtk_CompositeText.

Parameters

inOtherSideSizeText

The Tail Dtk_CompositeText.

SetOtherSideTexts()

void Dtk_Welding::SetOtherSideTexts

(

std::unordered_map< Dtk_UInt8, Dtk_CompositeText > &

inTexts

)

Set the Dtk_Welding OtherSide Texts and their types.

Parameters

inTexts

Map of texts with their corresponding WeldTextType

SetOtherSideWeldingSymbol()

void Dtk_Welding::SetOtherSideWeldingSymbol

(

WeldingSymbolEnum

inWeldingSymbol

)

Set the WeldingSymbol of the OtherSide.

Parameters

inWeldingSymbol

The Welding Symbol.

SetOtherSideWeldSymbolText()

void Dtk_Welding::SetOtherSideWeldSymbolText

(

Dtk_CompositeText

inOtherSideWeldSymbolText

)

Sets the OtherSideWeldSymbolText Dtk_CompositeText.

Parameters

inOtherSideWeldSymbolText

The Tail Dtk_CompositeText.

SetReverseTailAndFieldFlag()

void Dtk_Welding::SetReverseTailAndFieldFlag

(

const Dtk_bool

inReverseTailAndField = DTK_TRUE

)

Sets the Field/Tail Reverse Flag.

Parameters

inReverseTailAndField

The Tail/Field Reverse Flag: If DTK_TRUE the Field is at the left of the Dtk_Welding and the Tail is at Right - default value -. If DTK_FALSE the Field and Tail are reversed - Field => Right and Tail => Left -.

SetRotationAngle()

Dtk_ErrorStatus Dtk_Welding::SetRotationAngle ( const Dtk_Double64 &  inAngle )

virtual

Sets the annotation angle using the annotation base.

Parameters

inRotationAngle

The rotation angle to be set

Returns

dtkNoError if OK

Reimplemented from Dtk_Annotation.

SetSymbolInfos()

void Dtk_Welding::SetSymbolInfos

(

Dtk_tab< Dtk_pnt > &

inPnts

)

Process the Welding Symbol Informations.

Parameters

inPnts

The reference points.

Remarks

The 1st point is the Field point.

The 2nd point is the Tail point.

SetTailText()

void Dtk_Welding::SetTailText

(

Dtk_CompositeText

inTailText

)

Sets the Tail Dtk_CompositeText.

Parameters

inTailText

The Tail Dtk_CompositeText.

SetWeldTailActivated()

void Dtk_Welding::SetWeldTailActivated

(

const Dtk_bool

inTailActivated = DTK_FALSE

)

Sets the Tail Activation Flag.

Parameters

inTailActivated

The Tail Flag. If DTK_FALSE - default value - the Tail is not activated. Else it's activated.

Transform()

Dtk_ErrorStatus Dtk_Welding::Transform ( const Dtk_transfo &  inTransfo )

virtual

Applies a transformation matrix to the entity. //!

Parameters

inTransfo

The transformation matrix to apply.

Implements Dtk_Annotation.

WeldingSymbolEnumToString()

static Dtk_string Dtk_Welding::WeldingSymbolEnumToString ( const WeldingSymbolEnum &  inEnum )

static

    {
        switch( inEnum )
        {
        case SymbolNone :                               return L"SymbolNone";
        case SymbolSquareButtWeld :                     return L"SymbolSquareButtWeld";
        case SymbolSingeVButtWeld :                     return L"SymbolSingeVButtWeld";
        case SymbolSingleBevelButtWeld :                return L"SymbolSingleBevelButtWeld";
        case SymbolFlareVButtWeld :                     return L"SymbolFlareVButtWeld";
        case SymbolFlareBevelButtWeld :                 return L"SymbolFlareBevelButtWeld";
        case SymbolSingleUButtWeld :                    return L"SymbolSingleUButtWeld";
        case SymbolSingleJButtWeld :                    return L"SymbolSingleJButtWeld";
        case SymbolFilletWeld :                         return L"SymbolFilletWeld";
        case SymbolSpotWeld :                           return L"SymbolSpotWeld";
        case SymbolBackWeld :                           return L"SymbolBackWeld";
        case SymbolSteepFlankedSingleBevelButtWeld :    return L"SymbolSteepFlankedSingleBevelButtWeld";
        case SymbolSteepFlankedSingleVWeld :            return L"SymbolSteepFlankedSingleVWeld";
        case SymbolPlugWeld :                           return L"SymbolPlugWeld";
        case SymbolRemovableBackingStripUsed :          return L"SymbolRemovableBackingStripUsed";
        case SymbolPermanentBackingStripUsed :          return L"SymbolPermanentBackingStripUsed";
        case SymbolSurfacingWeld :                      return L"SymbolSurfacingWeld";
        case SymbolSeamWeld :                           return L"SymbolSeamWeld";
        case SymbolFlangeEdge :                         return L"SymbolFlangeEdge";
        case SymbolStickWeld :                          return L"SymbolStickWeld";
        case SymbolFlangeCorner :                       return L"SymbolFlangeCorner";
        case SymbolVFlareWeld :                         return L"SymbolVFlareWeld";
        case SymbolFlareBevelWeld :                     return L"SymbolFlareBevelWeld";
        case SymbolScarfWeld :                          return L"SymbolScarfWeld";
        case SymbolStudWeld :                           return L"SymbolStudWeld";
        case SymbolANSIEdgeWeld :                       return L"SymbolANSIEdgeWeld";
        case SymbolISOEdgeWeld :                        return L"SymbolISOEdgeWeld";
        case SymbolSurfaceJointWeld :                   return L"SymbolSurfaceJointWeld";
        case SymbolInclinedJointWeld :                  return L"SymbolInclinedJointWeld";
          case SymbolMeltThroughWeld:                     return L"SymbolMeltThroughWeld";
          case SymbolSolderedJointWeld:                   return L"SymbolSolderedJointWeld";
          case SymbolFoldJointWeld:                       return L"SymbolFoldJointWeld";
          case SymbolKGrooveWeld:                         return L"SymbolKGrooveWeld";
          case SymbolStakeWeld:                           return L"SymbolFoldJointWeldSymbolStakeWeld";
        default :                                       return L"Unknown";
        }
    }

Field Documentation

_Private

std::unique_ptr< Dtk_Handle > Dtk_Welding::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited
