Dtk_2dEntity Class Reference

This is the abstract Dtk_2dEntity class.
Gathers Dtk_Annotation and Dtk_Dimension. More...

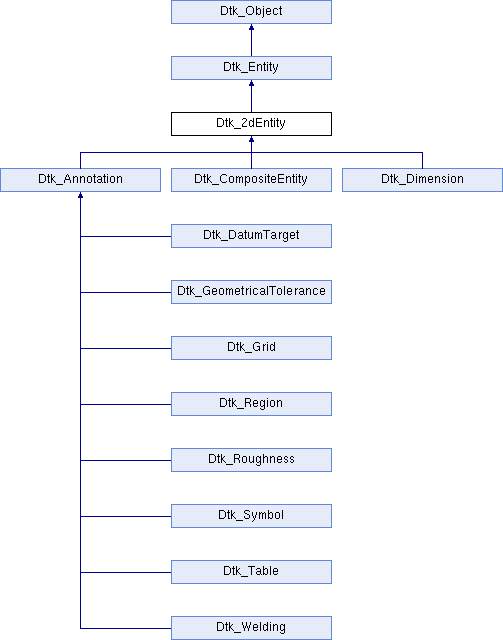

Inheritance diagram for Dtk_2dEntity:

Public Member Functions
virtual Dtk_ErrorStatus	_Store (void *)
void	AddAdditionnalGeometries (const Dtk_tab< Dtk_EntityPtr > &inAdditionnalGeometries)
	Adds some additionnal geometries to the Dtk_2dEntity. More...
void	AddAdditionnalGeometry (const Dtk_EntityPtr &inAdditionnalGeometry)
	Adds an additionnal geometry to the Dtk_2dEntity. More...
void	AddAdditionnalTexts (Dtk_CompositeText inAddtionnalTexts)
	Adds some additionnal texts to the Dtk_2dEntity. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
int	DtkDynamicType (const int &inId)
virtual void	dump (FILE *file=stdout)
Dtk_InfoPtr	get_info () const
virtual type_detk	get_type_detk () const =0
const Dtk_tab< Dtk_EntityPtr > &	GetAdditionnalGeometries () const
	Retrieves the additionnal geometries of the Dtk_2dEntity. More...
const Dtk_CompositeText &	GetAdditionnalTexts () const
	Retrieves the additionnal texts of the Dtk_2dEntity. More...
const Dtk_ID &	GetID () const
	Get Internal UniqueID. More...
virtual Dtk_Size_t	GetSize () const
Dtk_InfoPtr &	info ()
virtual std::ostream &	operator<< (std::ostream &o) const
Dtk_2dEntity &	operator= (const Dtk_2dEntity &inToBeAssigned)
	Assignment Operator. More...
Dtk_2dEntity &	operator= (Dtk_2dEntity &&inToBeAssigned) DTK_NOEXCEPT
	\MoveOp{inToBeAssigned} More...
virtual void	PrepareTransfo ()
virtual Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)=0
	Applies a transformation matrix to the entity. //! More...

Static Public Member Functions
static Dtk_2dEntity *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...

Protected Types
enum	{ _typeID = DTK_TYPE_2D_ENTITY }
enum	{ _typeID = DTK_TYPE_ENTITY }

Protected Member Functions
void	_Copy (const Dtk_2dEntity &s)
void	_copy (const Dtk_Entity &s)
void	_copy (const Dtk_Object &s)
void	_Init ()
void	_init ()
void	_Reset ()
void	_reset ()
virtual Dtk_Object *	Clone ()=0
	Dtk_2dEntity ()
	Base constructor. More...
	Dtk_2dEntity (const Dtk_2dEntity &s)
	Copy constructor. More...
	Dtk_2dEntity (Dtk_2dEntity &&s) DTK_NOEXCEPT
	\MoveConstructor{s} More...
virtual	~Dtk_2dEntity ()
	Destructor. More...

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_SmartPtr< Dtk_2dEntity >
std::ostream &	operator<< (std::ostream &o, const Dtk_2dEntity &d)

Detailed Description

This is the abstract Dtk_2dEntity class.
Gathers Dtk_Annotation and Dtk_Dimension.

See also

Please use the Dtk_2dEntity class to handle it.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_2D_ENTITY
     };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_ENTITY };

Constructor & Destructor Documentation

~Dtk_2dEntity()

virtual Dtk_2dEntity::~Dtk_2dEntity ( )

protectedvirtual

Destructor.

Dtk_2dEntity() [1/3]

Dtk_2dEntity::Dtk_2dEntity ( )

protected

Base constructor.

Dtk_2dEntity() [2/3]

Dtk_2dEntity::Dtk_2dEntity ( const Dtk_2dEntity &  s )

protected

Copy constructor.

Parameters

s	Object to copy.

Dtk_2dEntity() [3/3]

Dtk_2dEntity::Dtk_2dEntity ( Dtk_2dEntity &&  s )

protected

\MoveConstructor{s}

Member Function Documentation

_Copy()

void Dtk_2dEntity::_Copy ( const Dtk_2dEntity &  s )

protected

_copy() [1/2]

void Dtk_Entity::_copy ( const Dtk_Entity &  s )

protectedinherited

_copy() [2/2]

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_Init()

void Dtk_2dEntity::_Init ( )

protected

_init()

void Dtk_Entity::_init ( )

protectedinherited

_Reset()

void Dtk_2dEntity::_Reset ( )

protected

_reset()

void Dtk_Entity::_reset ( )

protectedinherited

_Store()

virtual Dtk_ErrorStatus Dtk_Entity::_Store ( void *  )

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

AddAdditionnalGeometries()

void Dtk_2dEntity::AddAdditionnalGeometries

(

const Dtk_tab< Dtk_EntityPtr > &

inAdditionnalGeometries

)

Adds some additionnal geometries to the Dtk_2dEntity.

Parameters

inAdditionnalGeometries

The geometries to be added

AddAdditionnalGeometry()

void Dtk_2dEntity::AddAdditionnalGeometry

(

const Dtk_EntityPtr &

inAdditionnalGeometry

)

Adds an additionnal geometry to the Dtk_2dEntity.

Parameters

inAdditionnalGeometry

The geometry to be added

AddAdditionnalTexts()

void Dtk_2dEntity::AddAdditionnalTexts

(

Dtk_CompositeText

inAddtionnalTexts

)

Adds some additionnal texts to the Dtk_2dEntity.

Parameters

inAddtionnalTexts

The texts to be added

Clone()

virtual Dtk_Object* Dtk_2dEntity::Clone ( )

protectedpure virtual

Implements Dtk_Entity.

Implemented in Dtk_Annotation, Dtk_Region, Dtk_CompositeEntity, Dtk_Symbol, Dtk_GeometricalTolerance, Dtk_Dimension, Dtk_Grid, Dtk_Table, Dtk_DatumTarget, Dtk_Welding, and Dtk_Roughness.

DtkDynamicCast()

static Dtk_2dEntity* Dtk_2dEntity::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_2dEntity::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

int Dtk_Entity::DtkDynamicType ( const int &  inId )

virtualinherited

Implements Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, and Dtk_AxisSystem.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const

inherited

get_type_detk()

virtual type_detk Dtk_2dEntity::get_type_detk ( ) const

pure virtual

Implements Dtk_Entity.

Implemented in Dtk_Annotation, Dtk_Region, Dtk_CompositeEntity, Dtk_Symbol, Dtk_GeometricalTolerance, Dtk_Dimension, Dtk_Grid, Dtk_Table, Dtk_DatumTarget, Dtk_Welding, and Dtk_Roughness.

GetAdditionnalGeometries()

const Dtk_tab< Dtk_EntityPtr >& Dtk_2dEntity::GetAdditionnalGeometries

(

)

const

Retrieves the additionnal geometries of the Dtk_2dEntity.

Returns

The additionnal geometries array - read only -.

GetAdditionnalTexts()

const Dtk_CompositeText& Dtk_2dEntity::GetAdditionnalTexts

(

)

const

Retrieves the additionnal texts of the Dtk_2dEntity.

Returns

The additionnal texts - read only -.

GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const

inherited

Get Internal UniqueID.

Returns

InternalID

GetSize()

virtual Dtk_Size_t Dtk_Entity::GetSize ( ) const

virtualinherited

Reimplemented from Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

info()

Dtk_InfoPtr& Dtk_Entity::info ( )

inherited

operator<<()

virtual std::ostream& Dtk_2dEntity::operator<< ( std::ostream &  o ) const

virtual

     {
          return o << "Dtk_2dEntity Base class";
     }

operator=() [1/2]

Dtk_2dEntity& Dtk_2dEntity::operator=

(

const Dtk_2dEntity &

inToBeAssigned

)

Assignment Operator.

Parameters

inToBeAssigned

Object to copy.

operator=() [2/2]

Dtk_2dEntity& Dtk_2dEntity::operator=

(

Dtk_2dEntity &&

inToBeAssigned

)

\MoveOp{inToBeAssigned}

PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )

virtualinherited

Reimplemented in Dtk_OffsetSurface.

Transform()

virtual Dtk_ErrorStatus Dtk_2dEntity::Transform ( const Dtk_transfo &  inTransfo )

pure virtual

Applies a transformation matrix to the entity. //!

Parameters

inTransfo

The transformation matrix to apply.

Implements Dtk_Entity.

Implemented in Dtk_Annotation, Dtk_Region, Dtk_CompositeEntity, Dtk_Symbol, Dtk_GeometricalTolerance, Dtk_Dimension, Dtk_Grid, Dtk_Table, Dtk_DatumTarget, Dtk_Welding, and Dtk_Roughness.

Friends And Related Function Documentation

Dtk_SmartPtr< Dtk_2dEntity >

friend class Dtk_SmartPtr< Dtk_2dEntity >

friend

operator<<

std::ostream& operator<< ( std::ostream &  o, const Dtk_2dEntity &  d  )

friend

Field Documentation

_Private

Dtk_Handle* Dtk_2dEntity::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited
