Dtk_Region Class Reference

This is the Region class. The region that designates areas of your model for special purposes, such as an area affected by a datum target. The region can contain a hatching and boundaries that are stored as geometries. More...

Inheritance diagram for Dtk_Region:

Public Types
enum	RegionType {   RectangularType, CircularType, AnnularType, CylindricalType,   ArbitraryType, UnknownType }

Public Member Functions
virtual Dtk_ErrorStatus	_Store (void *)
void	AddAdditionnalGeometries (const Dtk_tab< Dtk_EntityPtr > &inAdditionnalGeometries)
	Adds some additionnal geometries to the Dtk_2dEntity. More...
void	AddAdditionnalGeometry (const Dtk_EntityPtr &inAdditionnalGeometry)
	Adds an additionnal geometry to the Dtk_2dEntity. More...
void	AddAdditionnalTexts (Dtk_CompositeText inAddtionnalTexts)
	Adds some additionnal texts to the Dtk_2dEntity. More...
Dtk_ErrorStatus	AddLeader (const Dtk_LeaderPtr &leader)
	Adds a leader to the Dtk_Annotation. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
int	DtkDynamicType (const int &inId)
virtual void	dump (FILE *file=stdout)
Dtk_InfoPtr	get_info () const
type_detk	get_type_detk () const
const Dtk_tab< Dtk_EntityPtr > &	GetAdditionnalGeometries () const
	Retrieves the additionnal geometries of the Dtk_2dEntity. More...
const Dtk_CompositeText &	GetAdditionnalTexts () const
	Retrieves the additionnal texts of the Dtk_2dEntity. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES]) const
	Processes all the Dtk_Annotation anchor points. More...
Dtk_ErrorStatus	GetAnnularInnerDiameter (Dtk_Double64 &outDiameter)
	Gets the inner diameter of the annular Dtk_Region. More...
Dtk_ErrorStatus	GetAnnularOuterDiameter (Dtk_Double64 &outDiameter)
	Gets the outer diameter of the annular Dtk_Region. More...
Dtk_ErrorStatus	GetCircularDiameter (Dtk_Double64 &outDiameter)
	Gets the diameter of the circular Dtk_Region. More...
Dtk_tab< Dtk_EntityPtr >	GetGeometries () const
	Retrieves the Dtk_Grid geometries. More...
Dtk_HatchingPattern	GetHatchingPattern ()
	Gets Hatching Pattern of the region Dtk_Region. More...
const Dtk_ID &	GetID () const
	Get Internal UniqueID. More...
Dtk_LeaderPtr	GetLeader (const Dtk_Size_t &inPos) const
	Gets the i'th leader. More...
virtual Dtk_pnt	GetLocation () const
	Get the annoation location point. More...
const Dtk_anchor_type &	GetLocationAnchorType () const
	Gets the location anchor type - read only -. More...
Dtk_Size_t	GetNumLeaders () const
	Retrieves the number of leaders. More...
Dtk_Double64	GetOffset () const
	Gets the annotation offset - read only -. More...
Dtk_ErrorStatus	GetRectangularHeight (Dtk_Double64 &outHeight)
	Gets the height of the rectangular Dtk_Region. More...
Dtk_ErrorStatus	GetRectangularWidth (Dtk_Double64 &outWidth)
	Gets the width of the rectangular Dtk_Region. More...
Dtk_Double64	GetRotationAngle (const Dtk_dir &inXAxis=Dtk_dir(1, 0, 0), const Dtk_dir &inYAxis=Dtk_dir(0, 1, 0)) const
	Gets the text rotation angle giving a reference base. More...
virtual Dtk_Size_t	GetSize () const
RegionType	GetType ()
	Gets the type of the region. More...
Dtk_dir	GetXAxis () const
	Get the X Axis - read only -. More...
Dtk_dir	GetYAxis () const
	Get the Y Axis - read only -. More...
Dtk_InfoPtr &	info ()
virtual std::ostream &	operator<< (std::ostream &o) const
Dtk_Region &	operator= (const Dtk_Region &inToBeAssigned)
	Assignment Operator. More...
virtual void	PrepareTransfo ()
virtual Dtk_ErrorStatus	Reverse ()
	Reverses the Dtk_Annotation. More...
Dtk_ErrorStatus	SetAnchorPoint (const Dtk_pnt &inNewLocation, const Dtk_anchor_type &inLocationAnchorType)
	Sets the Dtk_Annotation anchor point. More...
Dtk_ErrorStatus	SetAnnularInnerDiameter (Dtk_Double64 inDiameter)
	Sets the inner diameter of the annular Dtk_Region. More...
Dtk_ErrorStatus	SetAnnularOuterDiameter (Dtk_Double64 inDiameter)
	Sets the outer diameter of the annular Dtk_Region. More...
	SetAsDeprecated ("Undefined", "Use Dtk_TextStyle::Justification()") Dtk_justication_type GetJustification() const
	Get the justification type - read only -. More...
Dtk_ErrorStatus	SetCircularDiameter (Dtk_Double64 inDiameter)
	Sets the diameter of the circular Dtk_Region. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &inLocation)
	Sets the location point of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &location, const Dtk_anchor_type &inAnchorType)
	Sets the location point of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetOffset (const Dtk_Double64 &inOffset)
	Sets the offset of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetRectangularHeight (Dtk_Double64 inHeight)
	Sets the height of the rectangular Dtk_Region. More...
Dtk_ErrorStatus	SetRectangularWidth (Dtk_Double64 inWidth)
	Sets the width of the rectangular Dtk_Region. More...
virtual Dtk_ErrorStatus	SetRotationAngle (const Dtk_Double64 &inRotationAngle)
	Sets the annotation angle using the annotation base. More...
Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Applies a transformation matrix to the entity. //! More...

Static Public Member Functions
static Dtk_RegionPtr	Create (RegionType inType, Dtk_HatchingPattern &inHatchingPattern, Dtk_tab< Dtk_EntityPtr > inGeometries)
	Copy Constructor. More...
static Dtk_Region *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...

Protected Types
enum	{ _typeID = DTK_TYPE_2D_ENTITY }
enum	{ _typeID = DTK_TYPE_ENTITY }
enum	{ _typeID = DTK_TYPE_ANNOTATION }
enum	{ _typeID = DTK_TYPE_REGION }

Protected Member Functions
void	_Copy (const Dtk_2dEntity &s)
void	_copy (const Dtk_Entity &s)
void	_copy (const Dtk_Object &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()
	Dtk_Region (const Dtk_Region &s)
	Copy Constructor. More...
	Dtk_Region (RegionType inType, Dtk_HatchingPattern &inHatchingPattern, Dtk_tab< Dtk_EntityPtr > inGeometries)
	Base Constructor. More...
	~Dtk_Region ()
	Destructor. More...

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_SmartPtr< Dtk_Region >

Detailed Description

This is the Region class. The region that designates areas of your model for special purposes, such as an area affected by a datum target. The region can contain a hatching and boundaries that are stored as geometries.

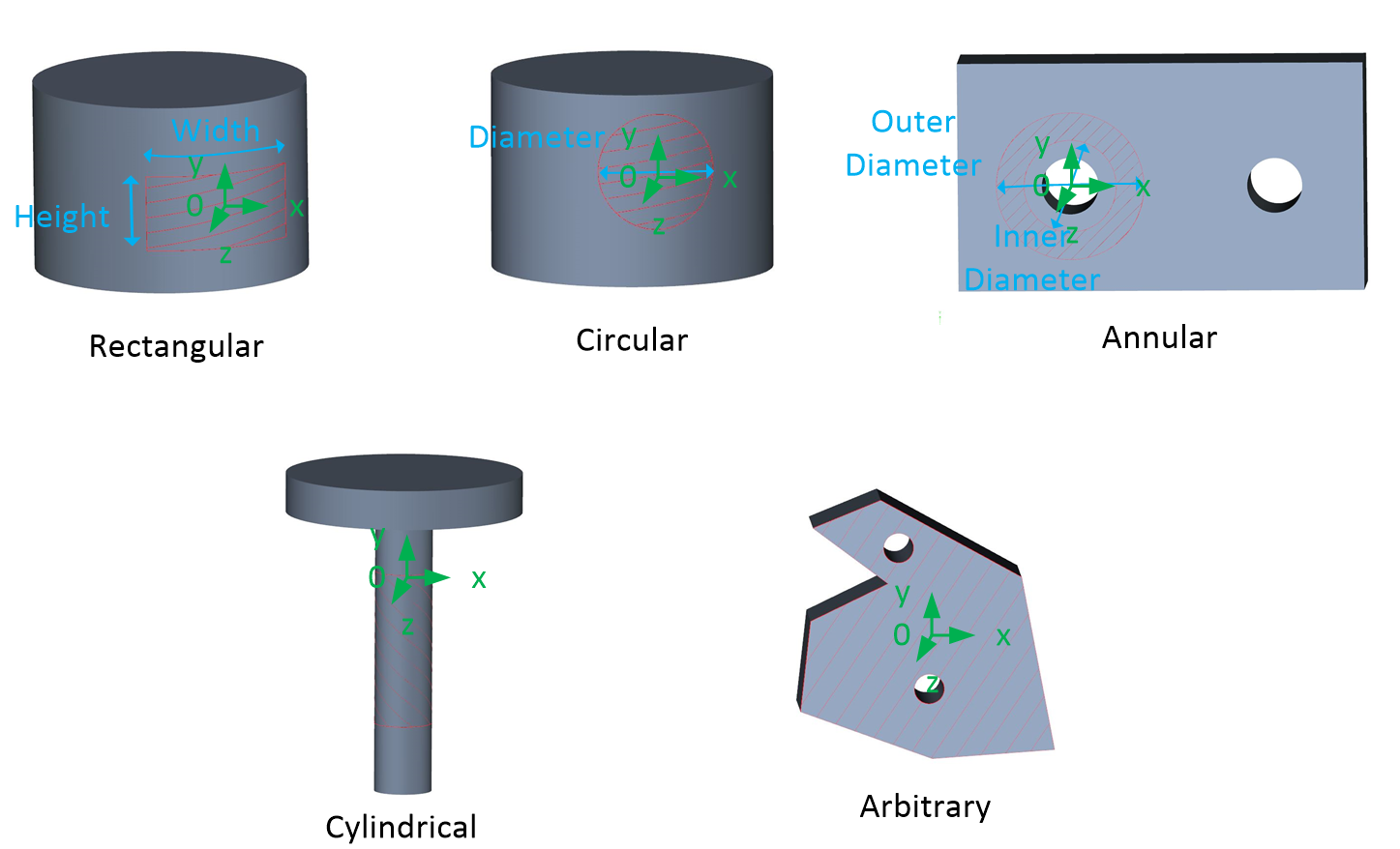

Types of regions:

Here are different region types with their specificities

See also

Please use the Dtk_RegionPtr class to handle it...

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_2D_ENTITY
     };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_ENTITY };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_ANNOTATION
     };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

    {
        _typeID = DTK_TYPE_REGION
    };

RegionType

enum Dtk_Region::RegionType

Enumerator
RectangularType
CircularType
AnnularType
CylindricalType
ArbitraryType
UnknownType

    {
        RectangularType,
        CircularType,
        AnnularType,
        CylindricalType,
        ArbitraryType,
        UnknownType
    };

Constructor & Destructor Documentation

Dtk_Region() [1/2]

Dtk_Region::Dtk_Region ( RegionType  inType, Dtk_HatchingPattern &  inHatchingPattern, Dtk_tab< Dtk_EntityPtr >  inGeometries  )

protected

Base Constructor.

Dtk_Region() [2/2]

Dtk_Region::Dtk_Region ( const Dtk_Region &  s )

protected

Copy Constructor.

~Dtk_Region()

Dtk_Region::~Dtk_Region ( )

protected

Destructor.

Member Function Documentation

_Copy()

void Dtk_2dEntity::_Copy ( const Dtk_2dEntity &  s )

protectedinherited

_copy() [1/2]

void Dtk_Entity::_copy ( const Dtk_Entity &  s )

protectedinherited

_copy() [2/2]

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_init()

void Dtk_Entity::_init ( )

protectedinherited

_reset()

void Dtk_Entity::_reset ( )

protectedinherited

_Store()

virtual Dtk_ErrorStatus Dtk_Entity::_Store ( void *  )

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

AddAdditionnalGeometries()

void Dtk_2dEntity::AddAdditionnalGeometries ( const Dtk_tab< Dtk_EntityPtr > &  inAdditionnalGeometries )

inherited

Adds some additionnal geometries to the Dtk_2dEntity.

Parameters

inAdditionnalGeometries

The geometries to be added

AddAdditionnalGeometry()

void Dtk_2dEntity::AddAdditionnalGeometry ( const Dtk_EntityPtr &  inAdditionnalGeometry )

inherited

Adds an additionnal geometry to the Dtk_2dEntity.

Parameters

inAdditionnalGeometry

The geometry to be added

AddAdditionnalTexts()

void Dtk_2dEntity::AddAdditionnalTexts ( Dtk_CompositeText  inAddtionnalTexts )

inherited

Adds some additionnal texts to the Dtk_2dEntity.

Parameters

inAddtionnalTexts

The texts to be added

AddLeader()

Dtk_ErrorStatus Dtk_Annotation::AddLeader ( const Dtk_LeaderPtr &  leader )

inherited

Adds a leader to the Dtk_Annotation.

Parameters

leader

The leader to be added

Returns

dtkNoError is OK

Remarks

If Added leader is NULL, so no leader is added.

Clone()

virtual Dtk_Object* Dtk_Region::Clone ( )

protectedvirtual

Implements Dtk_Annotation.

{ return new Dtk_Region(*this); }

Create()

static Dtk_RegionPtr Dtk_Region::Create ( RegionType  inType, Dtk_HatchingPattern &  inHatchingPattern, Dtk_tab< Dtk_EntityPtr >  inGeometries  )

static

Copy Constructor.

DtkDynamicCast()

static Dtk_Region* Dtk_Region::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_Region::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

int Dtk_Entity::DtkDynamicType ( const int &  inId )

virtualinherited

Implements Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, and Dtk_AxisSystem.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const

inherited

get_type_detk()

type_detk Dtk_Region::get_type_detk ( ) const

virtual

Implements Dtk_Annotation.

{ return DTK_TYPE_REGION; }

GetAdditionnalGeometries()

const Dtk_tab< Dtk_EntityPtr >& Dtk_2dEntity::GetAdditionnalGeometries ( ) const

inherited

Retrieves the additionnal geometries of the Dtk_2dEntity.

Returns

The additionnal geometries array - read only -.

GetAdditionnalTexts()

const Dtk_CompositeText& Dtk_2dEntity::GetAdditionnalTexts ( ) const

inherited

Retrieves the additionnal texts of the Dtk_2dEntity.

Returns

The additionnal texts - read only -.

GetAnchorPoints()

Dtk_ErrorStatus Dtk_Region::GetAnchorPoints ( Dtk_pnt(&)  outTabPnts[DTK_NB_ANCHOR_TYPES] ) const

virtual

Processes all the Dtk_Annotation anchor points.

Parameters

outTabPnts

The resulting anchor point array.

Returns

dtkNoError if OK

Implements Dtk_Annotation.

GetAnnularInnerDiameter()

Dtk_ErrorStatus Dtk_Region::GetAnnularInnerDiameter

(

Dtk_Double64 &

outDiameter

)

Gets the inner diameter of the annular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

outDiameter

The inner diameter

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a annular region

GetAnnularOuterDiameter()

Dtk_ErrorStatus Dtk_Region::GetAnnularOuterDiameter

(

Dtk_Double64 &

outDiameter

)

Gets the outer diameter of the annular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

outDiameter

The outer diameter

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a annular region

GetCircularDiameter()

Dtk_ErrorStatus Dtk_Region::GetCircularDiameter

(

Dtk_Double64 &

outDiameter

)

Gets the diameter of the circular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

outDiameter

The diameter

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a circular region

GetGeometries()

Dtk_tab< Dtk_EntityPtr > Dtk_Region::GetGeometries

(

)

const

Retrieves the Dtk_Grid geometries.

Returns

All the associated geometries asked.

GetHatchingPattern()

Dtk_HatchingPattern Dtk_Region::GetHatchingPattern

(

)

Gets Hatching Pattern of the region Dtk_Region.

This is a semantic information (will not modify geometries)

Returns

the hatching patter if available

GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const

inherited

Get Internal UniqueID.

Returns

InternalID

GetLeader()

Dtk_LeaderPtr Dtk_Annotation::GetLeader ( const Dtk_Size_t &  inPos ) const

inherited

Gets the i'th leader.

Parameters

inPos

The leader position - 0 indexed -

Returns

The inPos'th leader

GetLocation()

virtual Dtk_pnt Dtk_Annotation::GetLocation ( ) const

virtualinherited

Get the annoation location point.

Returns

The location point

GetLocationAnchorType()

const Dtk_anchor_type& Dtk_Annotation::GetLocationAnchorType ( ) const

inherited

Gets the location anchor type - read only -.

Returns

The location anchor type.

GetNumLeaders()

Dtk_Size_t Dtk_Annotation::GetNumLeaders ( ) const

inherited

Retrieves the number of leaders.

Returns

The number of leaders

GetOffset()

Dtk_Double64 Dtk_Annotation::GetOffset ( ) const

inherited

Gets the annotation offset - read only -.

Returns

The annotation offset.

Warning

For internal use only

GetRectangularHeight()

Dtk_ErrorStatus Dtk_Region::GetRectangularHeight

(

Dtk_Double64 &

outHeight

)

Gets the height of the rectangular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

outWidth

The height

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a rectangular region

GetRectangularWidth()

Dtk_ErrorStatus Dtk_Region::GetRectangularWidth

(

Dtk_Double64 &

outWidth

)

Gets the width of the rectangular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

outWidth

The width

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a rectangular region

GetRotationAngle()

Dtk_Double64 Dtk_Annotation::GetRotationAngle ( const Dtk_dir &  inXAxis = Dtk_dir(1, 0, 0), const Dtk_dir &  inYAxis = Dtk_dir(0, 1, 0)  ) const

inherited

Gets the text rotation angle giving a reference base.

Parameters

inXAxis	The reference X Axis - default value = (1,0,0) -
inYAxis	The reference Y Axis - default value = (0,1,0) -

Returns

The rotation angle.

GetSize()

virtual Dtk_Size_t Dtk_Entity::GetSize ( ) const

virtualinherited

Reimplemented from Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

GetType()

RegionType Dtk_Region::GetType

(

)

Gets the type of the region.

Returns

the type of region

GetXAxis()

Dtk_dir Dtk_Annotation::GetXAxis ( ) const

inherited

Get the X Axis - read only -.

Returns

The X Axis.

GetYAxis()

Dtk_dir Dtk_Annotation::GetYAxis ( ) const

inherited

Get the Y Axis - read only -.

Returns

The Y Axis.

info()

Dtk_InfoPtr& Dtk_Entity::info ( )

inherited

operator<<()

virtual std::ostream& Dtk_2dEntity::operator<< ( std::ostream &  o ) const

virtualinherited

     {
          return o << "Dtk_2dEntity Base class";
     }

operator=()

Dtk_Region& Dtk_Region::operator=

(

const Dtk_Region &

inToBeAssigned

)

Assignment Operator.

Parameters

inToBeAssigned

Object to copy.

PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )

virtualinherited

Reimplemented in Dtk_OffsetSurface.

Reverse()

virtual Dtk_ErrorStatus Dtk_Annotation::Reverse ( )

virtualinherited

Reverses the Dtk_Annotation.

Reimplemented in Dtk_DatumTarget.

SetAnchorPoint()

Dtk_ErrorStatus Dtk_Region::SetAnchorPoint ( const Dtk_pnt &  inNewLocation, const Dtk_anchor_type &  inLocationAnchorType  )

virtual

Sets the Dtk_Annotation anchor point.

Parameters

inNewLocation	The new location point.
inLocationAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetAnnularInnerDiameter()

Dtk_ErrorStatus Dtk_Region::SetAnnularInnerDiameter

(

Dtk_Double64

inDiameter

)

Sets the inner diameter of the annular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

inDiameter

The inner diameter

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a annular region

SetAnnularOuterDiameter()

Dtk_ErrorStatus Dtk_Region::SetAnnularOuterDiameter

(

Dtk_Double64

inDiameter

)

Sets the outer diameter of the annular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

inDiameter

The outer diameter

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a annular region

SetAsDeprecated()

Dtk_Annotation::SetAsDeprecated ( "Undefined"  , "Use Dtk_TextStyle::Justification()"    ) const

inherited

Get the justification type - read only -.

Returns

The justification type

Deprecated:

use the Dtk_TextStyle::Justification() instead

SetCircularDiameter()

Dtk_ErrorStatus Dtk_Region::SetCircularDiameter

(

Dtk_Double64

inDiameter

)

Sets the diameter of the circular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

inDiameter

The diameter

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a circular region

SetLocation() [1/2]

Dtk_ErrorStatus Dtk_Region::SetLocation ( const Dtk_pnt &  inLocation )

virtual

Sets the location point of the Dtk_Annotation.

The location point is related to the anchor type

Parameters

inLocation

the location point

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetLocation() [2/2]

Dtk_ErrorStatus Dtk_Annotation::SetLocation ( const Dtk_pnt &  location, const Dtk_anchor_type &  inAnchorType  )

inherited

Sets the location point of the Dtk_Annotation.

The location point is related to the anchor type

Parameters

location	the location point
inAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

SetOffset()

Dtk_ErrorStatus Dtk_Region::SetOffset ( const Dtk_Double64 &  inOffset )

virtual

Sets the offset of the Dtk_Annotation.

The Offset is used to process bounding frames.

Parameters

inOffset

The offset

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetRectangularHeight()

Dtk_ErrorStatus Dtk_Region::SetRectangularHeight

(

Dtk_Double64

inHeight

)

Sets the height of the rectangular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

inWidth

The height

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a rectangular region

SetRectangularWidth()

Dtk_ErrorStatus Dtk_Region::SetRectangularWidth

(

Dtk_Double64

inWidth

)

Sets the width of the rectangular Dtk_Region.

This is a semantic information (will not modify geometries)

Parameters

inWidth

The width

Returns

dtkNoError if OK, dtkErrorAttributeNotFound if it is not a rectangular region

SetRotationAngle()

virtual Dtk_ErrorStatus Dtk_Annotation::SetRotationAngle ( const Dtk_Double64 &  inRotationAngle )

virtualinherited

Sets the annotation angle using the annotation base.

Parameters

inRotationAngle

The rotation angle to be set

Returns

dtkNoError if OK

Reimplemented in Dtk_Symbol, Dtk_GeometricalTolerance, Dtk_Table, Dtk_DatumTarget, Dtk_Welding, and Dtk_Roughness.

Transform()

Dtk_ErrorStatus Dtk_Region::Transform ( const Dtk_transfo &  inTransfo )

virtual

Applies a transformation matrix to the entity. //!

Parameters

inTransfo

The transformation matrix to apply.

Implements Dtk_Annotation.

Friends And Related Function Documentation

Dtk_SmartPtr< Dtk_Region >

friend class Dtk_SmartPtr< Dtk_Region >

friend

Field Documentation

_Private

Dtk_Handle* Dtk_Region::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited
