Dtk_ToleranceSpecificationContainer Class Reference

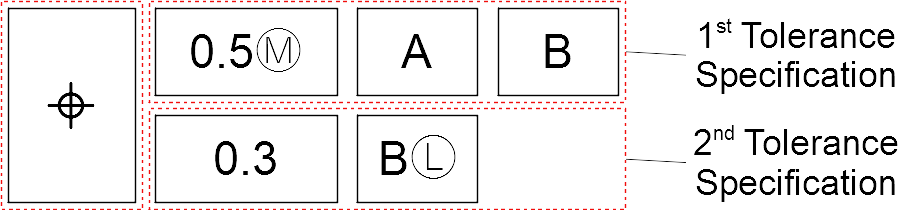

This is the tolerance specification container.
It is part of the Dtk_GeometricalTolerance.
It's basically composed by one - or more - Dtk_ToleranceSpecification. More...

Inheritance diagram for Dtk_ToleranceSpecificationContainer:

Public Types
enum	TypeEnum {   Typeunknown = 0, TypeStraightness, TypeFlatness, TypeCircularity,   TypeCylindricity, TypeLineProfile, TypeSurfaceProfile, TypeAngularity,   TypePerpendicularity, TypeParallelism, TypePosition, TypeConcentricity,   TypeSymmetry, TypeCircularRunout, TypeTotalRunout, TypeAxisIntersection }

Public Member Functions
Dtk_ErrorStatus	AddToleranceSpecification (const Dtk_ToleranceSpecificationPtr &inTolSpec)
	Adds a tolerance specification to the Dtk_ToleranceSpecificationContainer. More...
const Dtk_Text &	BottomText () const
	OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer bottom-text as Dtk_Text - read only -. More...
const Dtk_CompositeText &	BottomTextAsCompositeText () const
	Retrieves the Dtk_ToleranceSpecificationContainer bottom-text as Dtk_CompositeText - read only -. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
virtual int	DtkDynamicType (const int &inId)=0
virtual void	dump (FILE *file=stdout)
Dtk_ErrorStatus	Explode (Dtk_CompositeText &outCompositeText, Dtk_tab< Dtk_CurvePtr > &outGeoms)
	Explodes the Dtk_ToleranceSpecificationContainer into Dtk_CompositeText and geometrical elements - used for Dtk_Symbol conversion only -. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES], const Dtk_bool &ProcessAddtionnalTexts) const
	Processes all the Dtk_Symbol anchor points. More...
Dtk_ErrorStatus	GetAnchorPointsByTolSpec (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES], const Dtk_Int32 &ref_tol_spec_ind=-1) const
	Processes all the Dtk_Symbol anchor points. More...
Dtk_string	GetBottomTextLabel () const
	Retrieves the Dtk_ToleranceSpecificationContainer bottom-text - read only -. More...
const Dtk_Text &	GetLeftText () const
	OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer left-text as Dtk_Text - read only -. More...
Dtk_string	GetLeftTextLabel () const
	Retrieves the Dtk_ToleranceSpecificationContainer left-text - read only -. More...
Dtk_Size_t	GetNumToleranceSpecifications () const
	Retrieves the tolerance specification number - read only -. More...
Dtk_ErrorStatus	GetOuterBoundingBox (const Dtk_bool &inProcessAddtionnalTexts, Dtk_Oriented2dBBox &outOuterBBox) const
const Dtk_Text &	GetRightText () const
	OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer right-text as Dtk_Text - read only -. More...
Dtk_string	GetRightTextLabel () const
	Retrieves the Dtk_ToleranceSpecificationContainer right-text - read only -. More...
virtual Dtk_Size_t	GetSize () const
Dtk_ToleranceSpecificationPtr	GetToleranceSpecification (const Dtk_Size_t &inPos) const
	Retrieves the ith tolerance specification - read only -. More...
Dtk_ErrorStatus	GetToleranceSpecificationBoundingBox (const Dtk_Size_t &inTolSpecPos, Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES]) const
	Processes all the ith Dtk_ToleranceSpecification anchor points. More...
Dtk_ErrorStatus	GetToleranceSpecificationOuterBoundingBox (const Dtk_Size_t &inTolSpecPos, Dtk_Oriented2dBBox &outOuterBBox) const
Dtk_ErrorStatus	GetToleranceSpecificationsBoundingBox (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES]) const
	Processes all the Dtk_ToleranceSpecificationContainer anchor points. More...
void	GetToleranceTypeInnerBoundingBox (Dtk_Oriented2dBBox &outInnerBBox) const
	Retrieves the Tolerance Specification Container Type inner Bounding Box. More...
void	GetToleranceTypeOuterBoundingBox (Dtk_Oriented2dBBox &outOuterBBox) const
	Retrieves the Tolerance Specification Container Type outer Bounding Box. More...
Dtk_string	GetTopTextLabel () const
	Retrieves the Dtk_ToleranceSpecificationContainer top-text - read only -. More...
const Dtk_CompositeText &	LeftTextAsCompositeText () const
	Retrieves the Dtk_ToleranceSpecificationContainer left-text as Dtk_CompositeText - read only -. More...
Dtk_ToleranceSpecificationContainer &	operator= (const Dtk_ToleranceSpecificationContainer &s)
	Assignment Operator. More...
Dtk_ToleranceSpecificationContainer &	operator= (Dtk_ToleranceSpecificationContainer &&s) DTK_NOEXCEPT
	\MoveOp{inToBeMoved} More...
const Dtk_CompositeText &	RightTextAsCompositeText () const
	Retrieves the Dtk_ToleranceSpecificationContainer right-text as Dtk_CompositeText - read only -. More...
Dtk_ErrorStatus	SetAnchorPoint (const Dtk_pnt &inNewLocation, const Dtk_anchor_type &inLocationAnchorType, const Dtk_bool &inProcessAdditionnalTexts)
	Sets the Dtk_ToleranceSpecificationContainer anchor point. More...
	SetAsDeprecated ("2020.2", "Use Explode(Dtk_CompositeText &outCompositeText,Dtk_tab<Dtk_CurvePtr> &outGeoms) instead") Dtk_ErrorStatus Explode(Dtk_CompositeText &outCompositeText
	OBSOLETE. More...
Dtk_ErrorStatus	SetBottomText (Dtk_CompositeText text)
	Sets the Dtk_ToleranceSpecificationContainer bottom-text. More...
Dtk_ErrorStatus	SetLeftText (Dtk_CompositeText inText)
	Sets the Dtk_ToleranceSpecificationContainer left-text. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &inLocation)
	Sets the location point of the Dtk_ToleranceSpecificationContainer. More...
Dtk_ErrorStatus	SetRightText (Dtk_CompositeText inText)
	Sets the Dtk_ToleranceSpecificationContainer right-text. More...
Dtk_ErrorStatus	SetToleranceSpecification (const Dtk_Size_t &inPos, const Dtk_ToleranceSpecificationPtr &inNewTolSpec)
	Replaces the ith tolerance specification . More...
void	SetToleranceTypeInnerBoundingBox (const Dtk_Oriented2dBBox &inInnerBBox) const
	Set the Tolerance Specification Container Type inner Bounding Box. More...
void	SetToleranceTypeOuterBoundingBox (const Dtk_Oriented2dBBox &inOuterBBox) const
	Set the Tolerance Specification Container Type outer Bounding Box. More...
Dtk_ErrorStatus	SetTopText (Dtk_CompositeText inText)
	Sets the Dtk_ToleranceSpecificationContainer top-text. More...
TypeEnum &	ToleranceSpecificationContainerType ()
	Retrieves the Dtk_ToleranceSpecificationContainer type - get/set -. More...
const TypeEnum &	ToleranceSpecificationContainerType () const
	Retrieves the Dtk_ToleranceSpecificationContainer type - read only -. More...
const Dtk_Text &	TopText () const
	OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer top-text as Dtk_Text - read only -. More...
const Dtk_CompositeText &	TopTextAsCompositeText () const
	Retrieves the Dtk_ToleranceSpecificationContainer top-text as Dtk_CompositeText - read only -. More...
Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Applies a transformation matrix to the entity. //! More...
void	Translate (const Dtk_dir &inTranslationDir)
	Translates the text giving a translation vector. More...

Static Public Member Functions
static Dtk_ToleranceSpecificationContainerPtr	Create (const Dtk_ToleranceSpecificationContainer &ToBeCopied)
	Copy constructor. More...
static Dtk_ToleranceSpecificationContainerPtr	Create (const TypeEnum &inTolSpecContType, const Dtk_Oriented2dBBox &inInnerTolTypeBBox, const Dtk_Oriented2dBBox &inOuterTolTypeBBox)
	Full featured constructor. More...
static Dtk_ToleranceSpecificationContainerPtr	Create (Dtk_ToleranceSpecificationContainer &&ToBeMoved)
	\MoveConstructor{ToBeMoved} More...
static Dtk_ToleranceSpecificationContainer *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...
static Dtk_string	TolSpecContTypeToDtk_string (const TypeEnum inValue)

Data Fields
Dtk_tab< Geometric_set_select_entity * > &	outGeoms

Protected Types
enum	{ _typeID = DTK_TYPE_OBJECT }
enum	{ _typeID = DTK_TYPE_GEOM_TOL }

Protected Member Functions
void	_copy (const Dtk_Object &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()
	Dtk_ToleranceSpecificationContainer (const Dtk_ToleranceSpecificationContainer &s)
	Dtk_ToleranceSpecificationContainer (const TypeEnum &inTolSpecContType, const Dtk_Oriented2dBBox &inInnerTolTypeBBox, const Dtk_Oriented2dBBox &inOuterTolTypeBBox)
	Dtk_ToleranceSpecificationContainer (Dtk_ToleranceSpecificationContainer &&s) DTK_NOEXCEPT
	~Dtk_ToleranceSpecificationContainer ()
	Destructor. More...

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_

Friends
class	Dtk_SmartPtr< Dtk_ToleranceSpecificationContainer >

Detailed Description

This is the tolerance specification container.
It is part of the Dtk_GeometricalTolerance.
It's basically composed by one - or more - Dtk_ToleranceSpecification.

See also

Please use the Dtk_ToleranceSpecificationContainerPtr class to handle it...

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_OBJECT };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_GEOM_TOL
     };

TypeEnum

enum Dtk_ToleranceSpecificationContainer::TypeEnum

Enumerator
Typeunknown
TypeStraightness
TypeFlatness
TypeCircularity
TypeCylindricity
TypeLineProfile
TypeSurfaceProfile
TypeAngularity
TypePerpendicularity
TypeParallelism
TypePosition
TypeConcentricity
TypeSymmetry
TypeCircularRunout
TypeTotalRunout
TypeAxisIntersection

                   {
          Typeunknown = 0,
          TypeStraightness,
          TypeFlatness,
          TypeCircularity,
          TypeCylindricity,
          TypeLineProfile,
          TypeSurfaceProfile,
          TypeAngularity,
          TypePerpendicularity,
          TypeParallelism,
          TypePosition,
          TypeConcentricity,
          TypeSymmetry,
          TypeCircularRunout,
          TypeTotalRunout,
          TypeAxisIntersection
     };

Constructor & Destructor Documentation

Dtk_ToleranceSpecificationContainer() [1/3]

Dtk_ToleranceSpecificationContainer::Dtk_ToleranceSpecificationContainer ( const Dtk_ToleranceSpecificationContainer &  s )

protected

See also

Create(const Dtk_ToleranceSpecificationContainer &)

Dtk_ToleranceSpecificationContainer() [2/3]

Dtk_ToleranceSpecificationContainer::Dtk_ToleranceSpecificationContainer ( Dtk_ToleranceSpecificationContainer &&  s )

protected

See also

Create( Dtk_ToleranceSpecificationContainer&& )

Dtk_ToleranceSpecificationContainer() [3/3]

Dtk_ToleranceSpecificationContainer::Dtk_ToleranceSpecificationContainer ( const TypeEnum &  inTolSpecContType, const Dtk_Oriented2dBBox &  inInnerTolTypeBBox, const Dtk_Oriented2dBBox &  inOuterTolTypeBBox  )

protected

See also

Create(const TypeEnum &)

~Dtk_ToleranceSpecificationContainer()

Dtk_ToleranceSpecificationContainer::~Dtk_ToleranceSpecificationContainer ( )

protected

Destructor.

Member Function Documentation

_copy()

void Dtk_Object::_copy ( const Dtk_Object &  s )

protectedinherited

_init()

void Dtk_Object::_init ( )

protectedinherited

_reset()

void Dtk_Object::_reset ( )

protectedinherited

AddToleranceSpecification()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::AddToleranceSpecification

(

const Dtk_ToleranceSpecificationPtr &

inTolSpec

)

Adds a tolerance specification to the Dtk_ToleranceSpecificationContainer.

Parameters

inTolSpec

the tolerance specification to be added.

Returns

dtkNoError if OK.

BottomText()

const Dtk_Text& Dtk_ToleranceSpecificationContainer::BottomText

(

)

const

OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer bottom-text as Dtk_Text - read only -.

Remarks

Only the first text - if exists - is retrieved.

Returns

the text if there is one. an empty Dtk_Text else.

Deprecated:

Use BottomTextAsCompositeText() const method instead.

BottomTextAsCompositeText()

const Dtk_CompositeText& Dtk_ToleranceSpecificationContainer::BottomTextAsCompositeText

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer bottom-text as Dtk_CompositeText - read only -.

Returns

the text.

Clone()

virtual Dtk_Object* Dtk_ToleranceSpecificationContainer::Clone ( )

protectedvirtual

{ return new Dtk_ToleranceSpecificationContainer(*this); }

Create() [1/3]

static Dtk_ToleranceSpecificationContainerPtr Dtk_ToleranceSpecificationContainer::Create ( const Dtk_ToleranceSpecificationContainer &  ToBeCopied )

static

Copy constructor.

Parameters

ToBeCopied

Object to copy.

Create() [2/3]

static Dtk_ToleranceSpecificationContainerPtr Dtk_ToleranceSpecificationContainer::Create ( const TypeEnum &  inTolSpecContType, const Dtk_Oriented2dBBox &  inInnerTolTypeBBox, const Dtk_Oriented2dBBox &  inOuterTolTypeBBox  )

static

Full featured constructor.

Parameters

inTolSpecContType

The tolerance specification container type

Returns

the created Dtk_ToleranceSpecificationContainerPtr

Create() [3/3]

static Dtk_ToleranceSpecificationContainerPtr Dtk_ToleranceSpecificationContainer::Create ( Dtk_ToleranceSpecificationContainer &&  ToBeMoved )

static

\MoveConstructor{ToBeMoved}

DtkDynamicCast()

static Dtk_ToleranceSpecificationContainer* Dtk_ToleranceSpecificationContainer::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_ToleranceSpecificationContainer::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

virtual int Dtk_Object::DtkDynamicType ( const int &  inId )

pure virtualinherited

Implemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshPolyline, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, Dtk_AxisSystem, Dtk_Preview, Dtk_Entity, Dtk_picture, Dtk_OverrideSet, Dtk_OverrideInfo, Dtk_MainDoc, Dtk_Component, Dtk_Node, Dtk_DocElement, Dtk_Log, and Dtk_Properties.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

Explode()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::Explode	(	Dtk_CompositeText &	outCompositeText,
		Dtk_tab< Dtk_CurvePtr > &	outGeoms
	)

Explodes the Dtk_ToleranceSpecificationContainer into Dtk_CompositeText and geometrical elements - used for Dtk_Symbol conversion only -.

Parameters

outCompositeText	Resulting composite text
outGeoms	Resulting geometrical elements

Returns

DtkNoError if OK

GetAnchorPoints()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::GetAnchorPoints	(	Dtk_pnt(&)	outTabPnts[DTK_NB_ANCHOR_TYPES],
		const Dtk_bool &	ProcessAddtionnalTexts
	)		const

Processes all the Dtk_Symbol anchor points.

Parameters

outTabPnts

The resulting anchor point array.

Returns

dtkNoError if OK

GetAnchorPointsByTolSpec()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::GetAnchorPointsByTolSpec	(	Dtk_pnt(&)	outTabPnts[DTK_NB_ANCHOR_TYPES],
		const Dtk_Int32 &	ref_tol_spec_ind = -1
	)		const

Processes all the Dtk_Symbol anchor points.

Parameters

outTabPnts

The resulting anchor point array.

Returns

dtkNoError if OK

GetBottomTextLabel()

Dtk_string Dtk_ToleranceSpecificationContainer::GetBottomTextLabel

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer bottom-text - read only -.

Returns

the text - Dtk_string form -.

GetLeftText()

const Dtk_Text& Dtk_ToleranceSpecificationContainer::GetLeftText

(

)

const

OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer left-text as Dtk_Text - read only -.

Remarks

Only the first text - if exists - is retrieved.

Returns

the text if there is one. an empty Dtk_Text else.

Deprecated:

Use LeftTextAsCompositeText() const method instead.

GetLeftTextLabel()

Dtk_string Dtk_ToleranceSpecificationContainer::GetLeftTextLabel

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer left-text - read only -.

Returns

the text - Dtk_string form -.

GetNumToleranceSpecifications()

Dtk_Size_t Dtk_ToleranceSpecificationContainer::GetNumToleranceSpecifications

(

)

const

Retrieves the tolerance specification number - read only -.

Returns

The tolerance specification number.

GetOuterBoundingBox()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::GetOuterBoundingBox	(	const Dtk_bool &	inProcessAddtionnalTexts,
		Dtk_Oriented2dBBox &	outOuterBBox
	)		const

GetRightText()

const Dtk_Text& Dtk_ToleranceSpecificationContainer::GetRightText

(

)

const

OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer right-text as Dtk_Text - read only -.

Remarks

Only the first text - if exists - is retrieved.

Returns

the text if there is one. an empty Dtk_Text else.

Deprecated:

Use RightTextAsCompositeText() const method instead.

GetRightTextLabel()

Dtk_string Dtk_ToleranceSpecificationContainer::GetRightTextLabel

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer right-text - read only -.

Returns

the text - Dtk_string form -.

GetSize()

virtual Dtk_Size_t Dtk_Object::GetSize ( ) const

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh_face, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Entity, and Dtk_Info.

GetToleranceSpecification()

Dtk_ToleranceSpecificationPtr Dtk_ToleranceSpecificationContainer::GetToleranceSpecification

(

const Dtk_Size_t &

inPos

)

const

Retrieves the ith tolerance specification - read only -.

Parameters

inPos

the tolerance specification index.

Returns

The inPos'th tolerance specification.

GetToleranceSpecificationBoundingBox()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::GetToleranceSpecificationBoundingBox	(	const Dtk_Size_t &	inTolSpecPos,
		Dtk_pnt(&)	outTabPnts[DTK_NB_ANCHOR_TYPES]
	)		const

Processes all the ith Dtk_ToleranceSpecification anchor points.

Parameters

inTolSpecPos	the Dtk_ToleranceSpecification index.
outTabPnts	The resulting anchor point array.

Returns

dtkNoError if OK

GetToleranceSpecificationOuterBoundingBox()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::GetToleranceSpecificationOuterBoundingBox	(	const Dtk_Size_t &	inTolSpecPos,
		Dtk_Oriented2dBBox &	outOuterBBox
	)		const

GetToleranceSpecificationsBoundingBox()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::GetToleranceSpecificationsBoundingBox

(

Dtk_pnt(&)

outTabPnts[DTK_NB_ANCHOR_TYPES]

)

const

Processes all the Dtk_ToleranceSpecificationContainer anchor points.

Parameters

outTabPnts

The resulting anchor point array.

Returns

dtkNoError if OK

GetToleranceTypeInnerBoundingBox()

void Dtk_ToleranceSpecificationContainer::GetToleranceTypeInnerBoundingBox

(

Dtk_Oriented2dBBox &

outInnerBBox

)

const

Retrieves the Tolerance Specification Container Type inner Bounding Box.

Parameters

outOuterBBox

The resulting Tolerance Specification Container Type inner Bounding Box.

GetToleranceTypeOuterBoundingBox()

void Dtk_ToleranceSpecificationContainer::GetToleranceTypeOuterBoundingBox

(

Dtk_Oriented2dBBox &

outOuterBBox

)

const

Retrieves the Tolerance Specification Container Type outer Bounding Box.

Parameters

outOuterBBox

The resulting Tolerance Specification Container Type outer Bounding Box.

GetTopTextLabel()

Dtk_string Dtk_ToleranceSpecificationContainer::GetTopTextLabel

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer top-text - read only -.

Returns

the text - Dtk_string form -.

LeftTextAsCompositeText()

const Dtk_CompositeText& Dtk_ToleranceSpecificationContainer::LeftTextAsCompositeText

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer left-text as Dtk_CompositeText - read only -.

Returns

the text.

operator=() [1/2]

Dtk_ToleranceSpecificationContainer& Dtk_ToleranceSpecificationContainer::operator=

(

const Dtk_ToleranceSpecificationContainer &

s

)

Assignment Operator.

Parameters

inToBeAssigned

Object to copy.

operator=() [2/2]

Dtk_ToleranceSpecificationContainer& Dtk_ToleranceSpecificationContainer::operator=

(

Dtk_ToleranceSpecificationContainer &&

s

)

\MoveOp{inToBeMoved}

RightTextAsCompositeText()

const Dtk_CompositeText& Dtk_ToleranceSpecificationContainer::RightTextAsCompositeText

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer right-text as Dtk_CompositeText - read only -.

Returns

the text.

SetAnchorPoint()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetAnchorPoint	(	const Dtk_pnt &	inNewLocation,
		const Dtk_anchor_type &	inLocationAnchorType,
		const Dtk_bool &	inProcessAdditionnalTexts
	)

Sets the Dtk_ToleranceSpecificationContainer anchor point.

Parameters

inNewLocation	The new location point.
inLocationAnchorType	The anchor type related to the new location.
inProcessAdditionnalTexts	For internal use only.

Returns

dtkNoError if OK

SetAsDeprecated()

Dtk_ToleranceSpecificationContainer::SetAsDeprecated	(	"2020.2"	,
		"Use Explode(Dtk_CompositeText &outCompositeText,Dtk_tab<Dtk_CurvePtr> &outGeoms) instead"
	)		&

OBSOLETE.

SetBottomText()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetBottomText

(

Dtk_CompositeText

text

)

Sets the Dtk_ToleranceSpecificationContainer bottom-text.

Parameters

inText

The new text.

Returns

dtkNoError if OK

SetLeftText()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetLeftText

(

Dtk_CompositeText

inText

)

Sets the Dtk_ToleranceSpecificationContainer left-text.

Parameters

inText

The new text.

Returns

dtkNoError if OK

SetLocation()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetLocation

(

const Dtk_pnt &

inLocation

)

Sets the location point of the Dtk_ToleranceSpecificationContainer.

The location point is related to the anchor type

Parameters

inLocation

the location point

Returns

dtkNoError if OK

SetRightText()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetRightText

(

Dtk_CompositeText

inText

)

Sets the Dtk_ToleranceSpecificationContainer right-text.

Parameters

inText

The new text.

Returns

dtkNoError if OK

SetToleranceSpecification()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetToleranceSpecification	(	const Dtk_Size_t &	inPos,
		const Dtk_ToleranceSpecificationPtr &	inNewTolSpec
	)

Replaces the ith tolerance specification .

Parameters

inPos	the tolerance specification index.
inNewTolSpec	the new tolerance specification index.

Returns

dtkNoError if OK.

SetToleranceTypeInnerBoundingBox()

void Dtk_ToleranceSpecificationContainer::SetToleranceTypeInnerBoundingBox

(

const Dtk_Oriented2dBBox &

inInnerBBox

)

const

Set the Tolerance Specification Container Type inner Bounding Box.

Parameters

inInnerBBox

The Tolerance Specification Container Type inner Bounding Box.

SetToleranceTypeOuterBoundingBox()

void Dtk_ToleranceSpecificationContainer::SetToleranceTypeOuterBoundingBox

(

const Dtk_Oriented2dBBox &

inOuterBBox

)

const

Set the Tolerance Specification Container Type outer Bounding Box.

Parameters

inOuterBBox

The Tolerance Specification Container Type outer Bounding Box.

SetTopText()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::SetTopText

(

Dtk_CompositeText

inText

)

Sets the Dtk_ToleranceSpecificationContainer top-text.

Parameters

inText

The new text.

Returns

dtkNoError if OK

ToleranceSpecificationContainerType() [1/2]

TypeEnum& Dtk_ToleranceSpecificationContainer::ToleranceSpecificationContainerType

(

)

Retrieves the Dtk_ToleranceSpecificationContainer type - get/set -.

Returns

The Dtk_ToleranceSpecificationContainer type.

See also

ToleranceSpecificationContainerType() const

ToleranceSpecificationContainerType() [2/2]

const TypeEnum& Dtk_ToleranceSpecificationContainer::ToleranceSpecificationContainerType

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer type - read only -.

Returns

The Dtk_ToleranceSpecificationContainer type.

See also

ToleranceSpecificationContainerType()

TolSpecContTypeToDtk_string()

static Dtk_string Dtk_ToleranceSpecificationContainer::TolSpecContTypeToDtk_string ( const TypeEnum  inValue )

static

TopText()

const Dtk_Text& Dtk_ToleranceSpecificationContainer::TopText

(

)

const

OBSOLETE Retrieves the Dtk_ToleranceSpecificationContainer top-text as Dtk_Text - read only -.

Remarks

Only the first text - if exists - is retrieved.

Returns

the text if there is one. an empty Dtk_Text else.

Deprecated:

Use TopTextAsCompositeText() const method instead.

TopTextAsCompositeText()

const Dtk_CompositeText& Dtk_ToleranceSpecificationContainer::TopTextAsCompositeText

(

)

const

Retrieves the Dtk_ToleranceSpecificationContainer top-text as Dtk_CompositeText - read only -.

Returns

the text.

Transform()

Dtk_ErrorStatus Dtk_ToleranceSpecificationContainer::Transform

(

const Dtk_transfo &

inTransfo

)

Applies a transformation matrix to the entity. //!

Parameters

inTransfo

The transformation matrix to apply.

Translate()

void Dtk_ToleranceSpecificationContainer::Translate

(

const Dtk_dir &

inTranslationDir

)

Translates the text giving a translation vector.

Parameters

inTranslateDir

the translation vector

Returns

dtkNoError if OK

Friends And Related Function Documentation

Dtk_SmartPtr< Dtk_ToleranceSpecificationContainer >

friend class Dtk_SmartPtr< Dtk_ToleranceSpecificationContainer >

friend

Field Documentation

_Private

Dtk_Handle* Dtk_ToleranceSpecificationContainer::_Private

protected

count_

unsigned long Dtk_Object::count_

protectedinherited

outGeoms

Dtk_tab<Geometric_set_select_entity*>& Dtk_ToleranceSpecificationContainer::outGeoms
